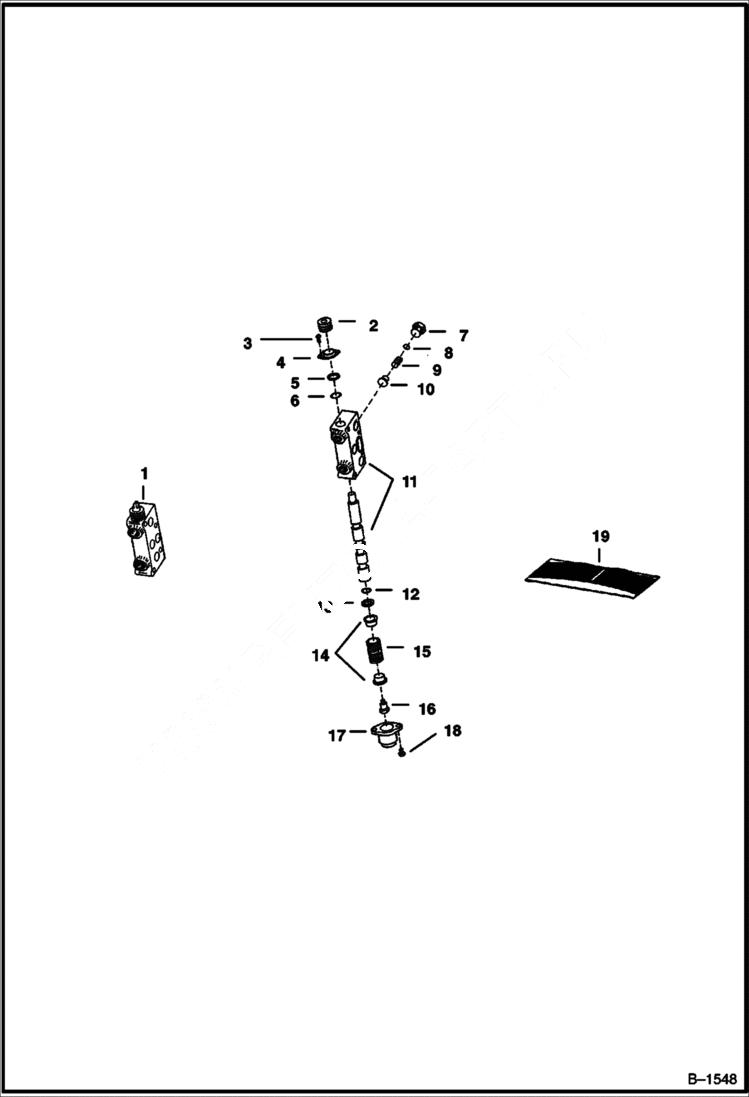

Запчасти Bobcat BACKHOE BACKHOE (Valve Section - Stabilizer) (914A) 914/914A BACKHOE

1

6519600

SECTION stabilizer - Ref. 2-18

2

947744

DUSTSEAL dust

3

SCREW NLA - Was 92G000406B - A

4

947752

RETAINER dust cover

5

947746

WASHER breather

6

O-RING NSS

7

6519632

PLUG W/Ref. 8

8

O-RING NSS

9

947737

SPRING

10

947717

PLUNGER lift check

11

BODY & SPOOL NSS

12

O-RING NSS

13

947745

RETAINER

14

947749

WASHER

15

947738

SPRING

16

947750

SCREW

17

947710

CAP ASSY

18

6631988

SCREW

19

948309

KIT W/Ref. 6, 8 & 12
