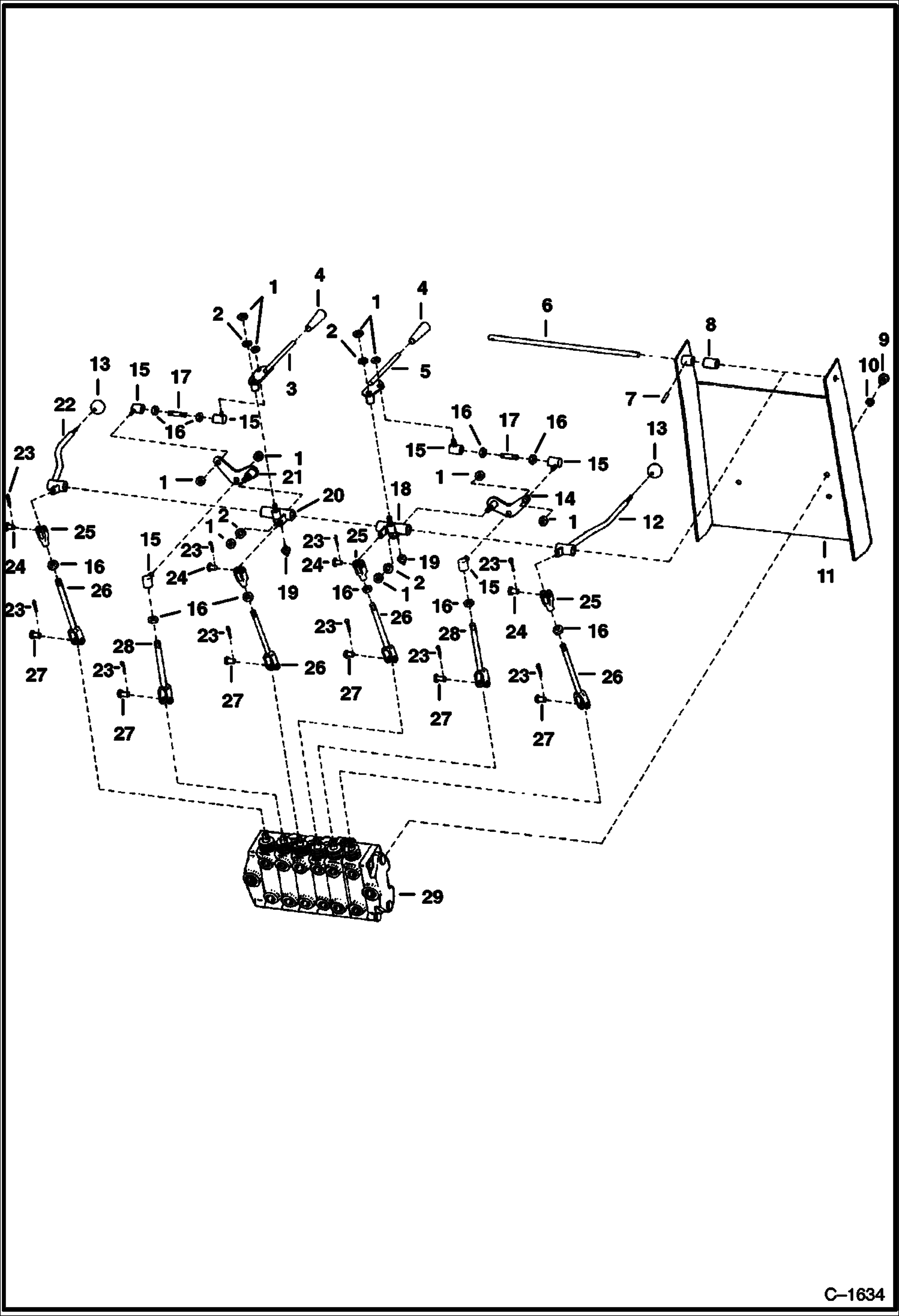

Запчасти Bobcat BACKHOE BACKHOE (Hand Control Linkage) (914A) 914/914A BACKHOE

1

86D6

NUT

2

25E17

WASHER 5

3

6542154

LEVER boom & swing - R.H.

4

1524497

KNOB control lever

5

6542153

LEVER bucket & dipper - L.H.

6

6542134

ROD

7

633157

PIN

8

6542167

BUSHING

9

17C816

BOLT

10

4E8

WASHER

11

6542135

PLATE valve mounting

12

6542149

LEVER stabilizer - left side

13

KNOB NLA - Was 947681 - A

14

6542139

PIVOT swing valve - left side

15

1314990

SWIVEL ball joint

16

8D6

NUT 5

17

6542133

ROD

18

6542145

PIVOT left side

19

6518200

FITTNG, GREASE 10 1/4'' (6,35 mm) - press fit

20

6542144

PIVOT right side

21

6542140

PIVOT bucket valve

22

6542148

LEVER stabilizer

23

1F316

PIN

24

4F6106

PIN clevis - Was 1311652 - A

25

2J6208

YOKE adjustable

26

6542162

ROD

27

1644934

PIN clevis

28

6542060

ROD

29

6519868

VALVE See Illustration BACKHOE/ B1579
