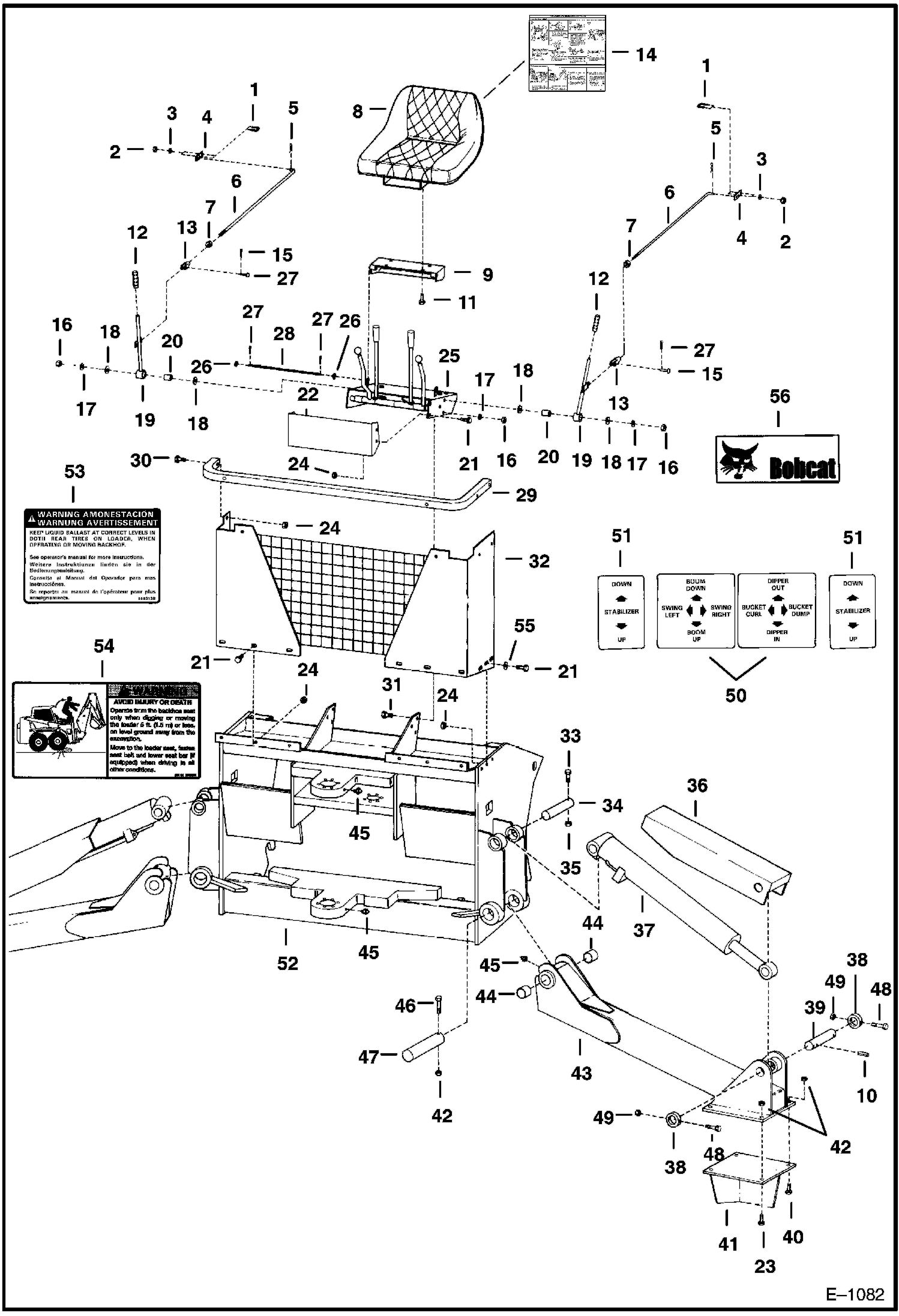

Запчасти Bobcat BACKHOE BACKHOE (Main Frame) (914A) 914/914A BACKHOE

1

799674

U BOLT

2

62D4

NUT

3

4E4

WASHER

4

6508441

MOUNT control lever

5

1318565

COTTER PIN

6

6592805

ROD extended steering

7

8D6

NUT 5

8

6500774

SEAT

8

6660148

LOWER SLIDE

8

UPPER SLIDE NLA - Was 6660149 - A

9

6542128

PLATE seat

10

658455

ROLL PIN

11

17C512

BOLT 5

12

6515109

GRIP

13

2J6208

YOKE adjustable

14

6593351

DECAL mounting instructions

15

663350

PIN hinge

16

61D8

NUT 5

17

4E8

WASHER

18

25E21

WASHER 5

19

6592803

LEVER auxiliary steering

20

6508444

BUSHING

21

17C614

BOLT

22

6542125

GUARD hand controls

23

18C844

BOLT

24

61D6

NUT 5

25

HAND CONTROL See Illustration BACKHOE/ C1634 linkage

26

784469

WASHER

27

1F316

PIN

28

6542124

PIN hinge

29

6542286

BAR

30

17C628

BOLT

31

17C820

BOLT

32

6542802

SCREEN

33

17C652

BOLT

34

947670

PIN hinge

35

81D6

NUT

36

6508367

SHIELD

37

6508540

CYLINDER See Illustration BACKHOE/ B20554 stabilizer

38

6508372

COLLAR locking

39

6508370

PIN hinge

40

18C824

BOLT

41

6515823

SPADE stabilizer

42

62D8

NUT

43

6508545

LEG stabilizer - W/Ref. 44 & 45

44

6508233

BUSHING

45

10H35

FITTING, GREASE 10

46

18C872

SCREW

47

947669

PIN hinge

48

18C648

BOLT

49

82D6

NUT

50

6506175

DECAL control levers

51

6506176

DECAL control levers

52

6542071

FRAME main assy.

53

6563138

DECAL warning

54

6596591

DECAL warning - Was 6562925 - A

55

25E17

WASHER 5

56

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6569071 - B
