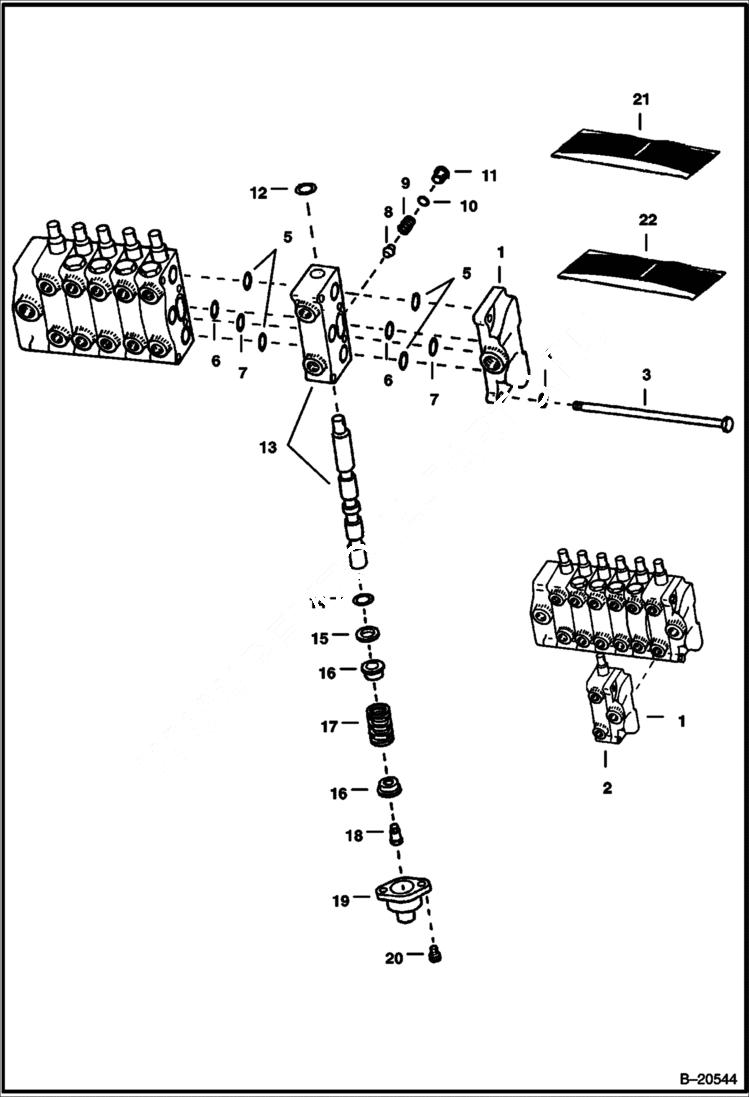

Запчасти Bobcat BACKHOE BACKHOE (Left Stabilizer Section & End Plate) (914) 914/914A BACKHOE

1

947637

PLATE end - L.H.

2

947632

VALVE SEC stabilizer - L.H. - Ref. 8-20

3

947743

BOLT

4

4E6

WASHER

5

25K20104

O RING 10

6

58K024

O-RING 10

7

58K28

O RING 10

8

947717

PLUNGER

9

947737

SPRING

10

25K30028

O RING 10

11

947759

PLUG W/Ref. 10

12

25K40024

O RING 10

13

BODY & SPOOL NSS

14

25K30024

O RING 10

15

947745

RETAINER

16

947749

WASHER

17

947738

SPRING

18

947750

SCREW

19

947710

CAP ASSY

20

6631988

SCREW

21

948309

KIT stabilizer section - Ref. 10, 12 & 14

22

948311

SEAL KIT between sections - Ref. 5-7 - one kit per valve bank
