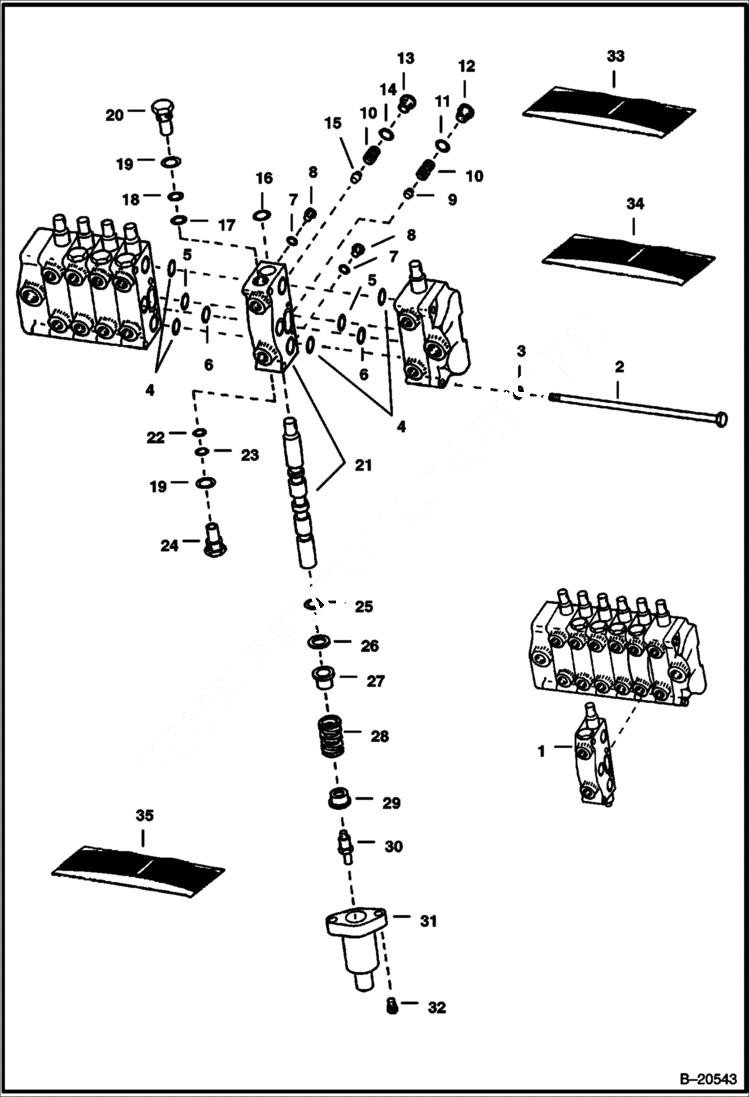

Запчасти Bobcat BACKHOE BACKHOE (Boom Section) (914) 914/914A BACKHOE

1

SECTION NLA - Ref. 7-16, 21, 25-32 - Order 947709B - Was 947635B - A

2

947743

BOLT

3

4E6

WASHER

4

25K20104

O RING 10

5

58K024

O-RING 10

6

58K28

O RING 10

7

25K30016

O RING 10

8

6632473

PLUG W/Ref. 7 - Was 947754B - A

9

947719

PLUNGER

10

947737

SPRING

11

25K30028

O RING 10

12

947759

PLUG W/Ref. 11

13

947753

PLUG W/Ref. 14

14

25K30030

O RING 10

15

947717

PLUNGER

16

25K40024

O RING 10

17

O-RING NLA - See Ref. 35 - Was 25K020024B - A

18

WASHER NLA - back-up - See Ref. 35 - Was 946651B - A

19

O-RING NLA - See Ref. 35 - Was 25K030026B - A

20

6665480

RELIEF VALVE W/Ref. 19 - Was 6664959 - A

21

BODY & SPOOL NSS

22

25K30018

O RING 10

23

WASHER NLA - back-up - Was 80K000113B - A

24

RELIEF VALVE NSS - W/Ref. 19 - Was 947638B - A

25

25K30024

O RING 10

26

947745

RETAINER

27

947748

WASHER

28

947738

SPRING

29

947749

WASHER

30

SCREW NLA - Was 947747B - A

31

947711

CAP ASSY

32

6631988

SCREW

33

948310

KIT boom section - Ref. 11, 14, 16-19, 22, 23 & 26

34

948311

SEAL KIT between sections - Ref. 4-6 - one kit per valve bank

35

6657100

SEAL KIT W/Ref. 17-19 - Use W/Ref. 20 W/ 32041LA marked on end of relief valve

35

6669653

SEAL KIT W/Ref. 17-19 - Use W/Ref. 20 W/ 32041LA or 32041LA3 marked on end of relief valve
