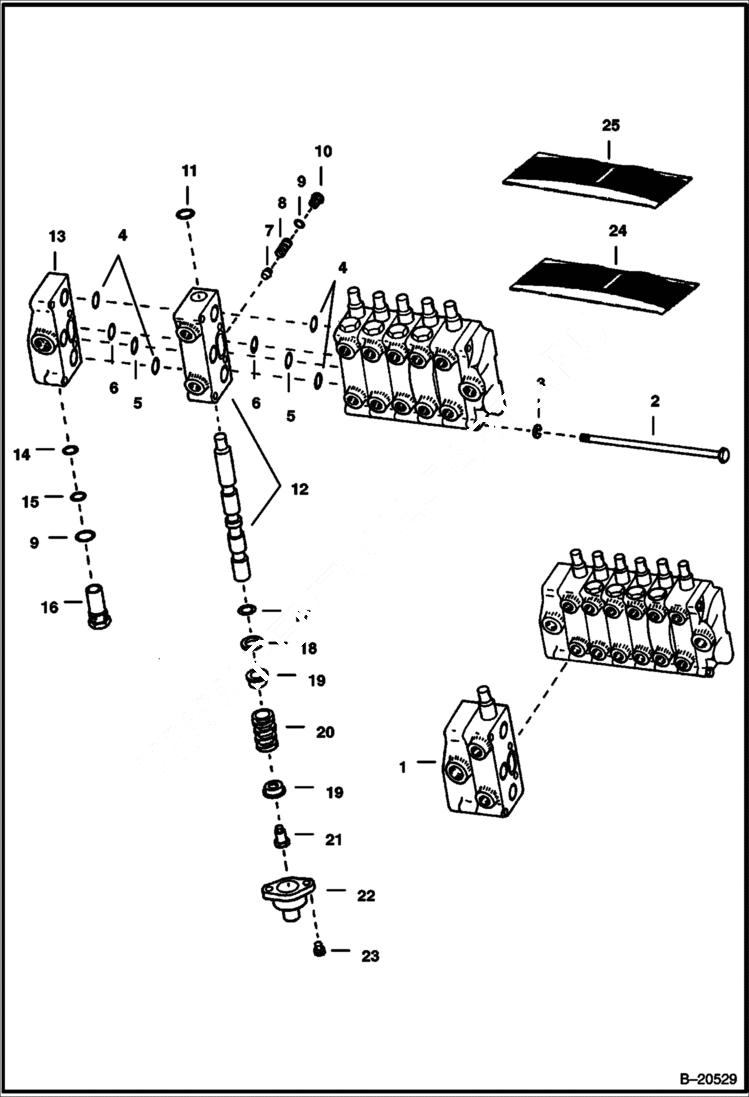

Запчасти Bobcat BACKHOE BACKHOE (Right Stabilizer Section & Port Plate) (914) 914/914A BACKHOE

1

947632

VALVE SEC stabilizer - R.H. - Ref. 7-12 & 17-23

2

947743

BOLT

3

4E6

WASHER

4

25K20104

O RING 10

5

58K28

O RING 10

6

58K024

O-RING 10

7

947717

PLUNGER lift check

8

947737

SPRING

9

25K30028

O RING 10

10

947759

PLUG W/Ref. 9

11

25K40024

O RING 10

12

BODY & SPOOL NSS

13

947636

PLATE port - R.H.

14

25K30030

O RING 10

15

WASHER NLA - back-up - Was 80K000118B - A

16

1550498

VALVE relief - W/Ref. 9

17

25K30024

O RING 10

18

947745

RETAINER

19

947749

WASHER

20

947738

SPRING

21

947750

SCREW

22

947710

CAP ASSY

23

6631988

SCREW

24

948309

KIT stab. section - Ref. 9, 11 & 17

25

948311

SEAL KIT between section - Ref. 4, 5 & 6 - one kit per valve bank
