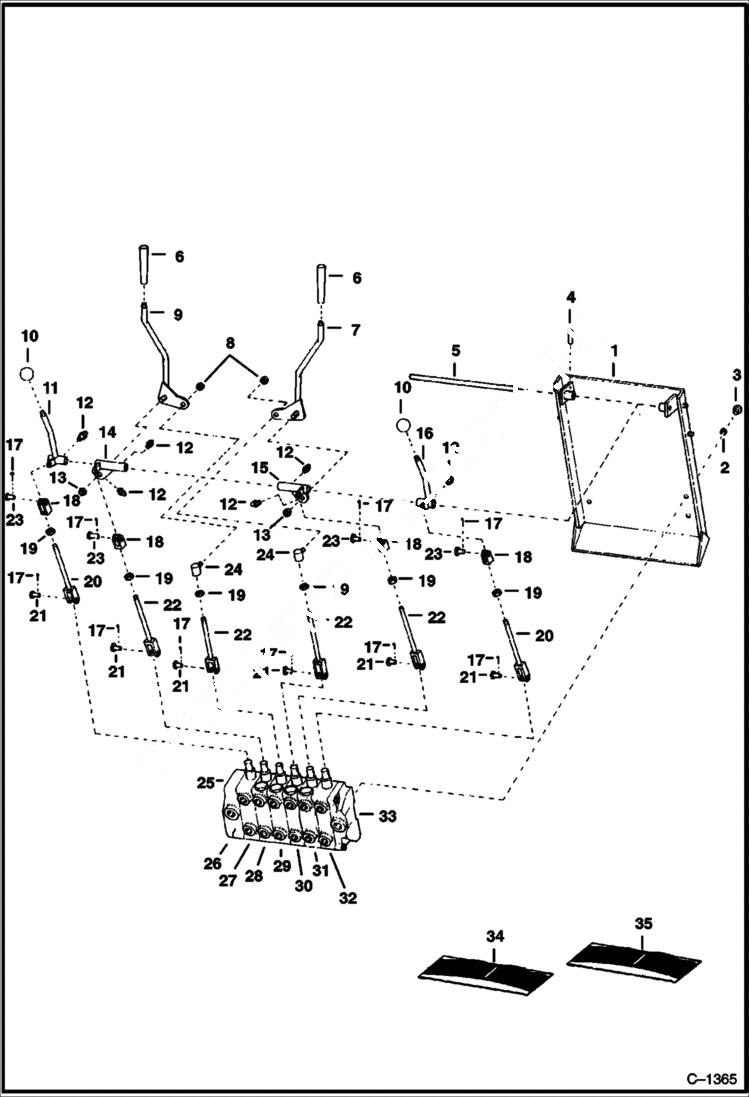

Запчасти Bobcat BACKHOE BACKHOE (Hand Control Linkage) (914) 914/914A BACKHOE

1

PLATE NLA - valve mounting - Was 6501960 - A

2

4E8

WASHER

3

17C816

BOLT

4

633157

PIN

5

947677

ROD

6

1524497

KNOB

7

947678

LEVER boom and swing - L.H.

8

62D6

NUT 5

9

947679

LEVER bucket and dipperstick - R.H.

10

KNOB NLA - Was 947681 - A

11

947676

LEVER stabilizer - R.H.

12

6518200

FITTNG, GREASE 10

13

62D10

NUT

14

PIVOT NLA - R.H. - Was 947675B - A

15

PIVOT NLA - L.H. - Was 947674 - A

16

947673

LEVER stabilizer - L.H.

17

1F416

PIN

18

2J6208

YOKE

19

8D6

NUT 5

20

ROD NLA - Was 6515820 - A

21

6507785

PIN

22

ROD NLA - Was 6505096 - A

23

4F6106

PIN Was 221461B - A

24

1314990

SWIVEL ball joint

25

VALVE BANK NLA - Was 947709B - A

26

PLATE See Illustration BACKHOE/ B20529 port

27

SECTION See Illustration BACKHOE/ B20529 right stabilizer

28

SECTION See Illustration BACKHOE/ B20540 dipperstick

29

SECTION See Illustration BACKHOE/ B20541 bucket

30

SECTION See Illustration BACKHOE/ B20542 swing

31

SECTION See Illustration BACKHOE/ B20543 boom

32

SECTION See Illustration BACKHOE/ B20544 left stabilizer

33

PLATE See Illustration BACKHOE/ B20544 left end

34

948312

KIT major seal - 1 kit per valve bank

35

6508074

KIT dust seal - used on valve bank rods
