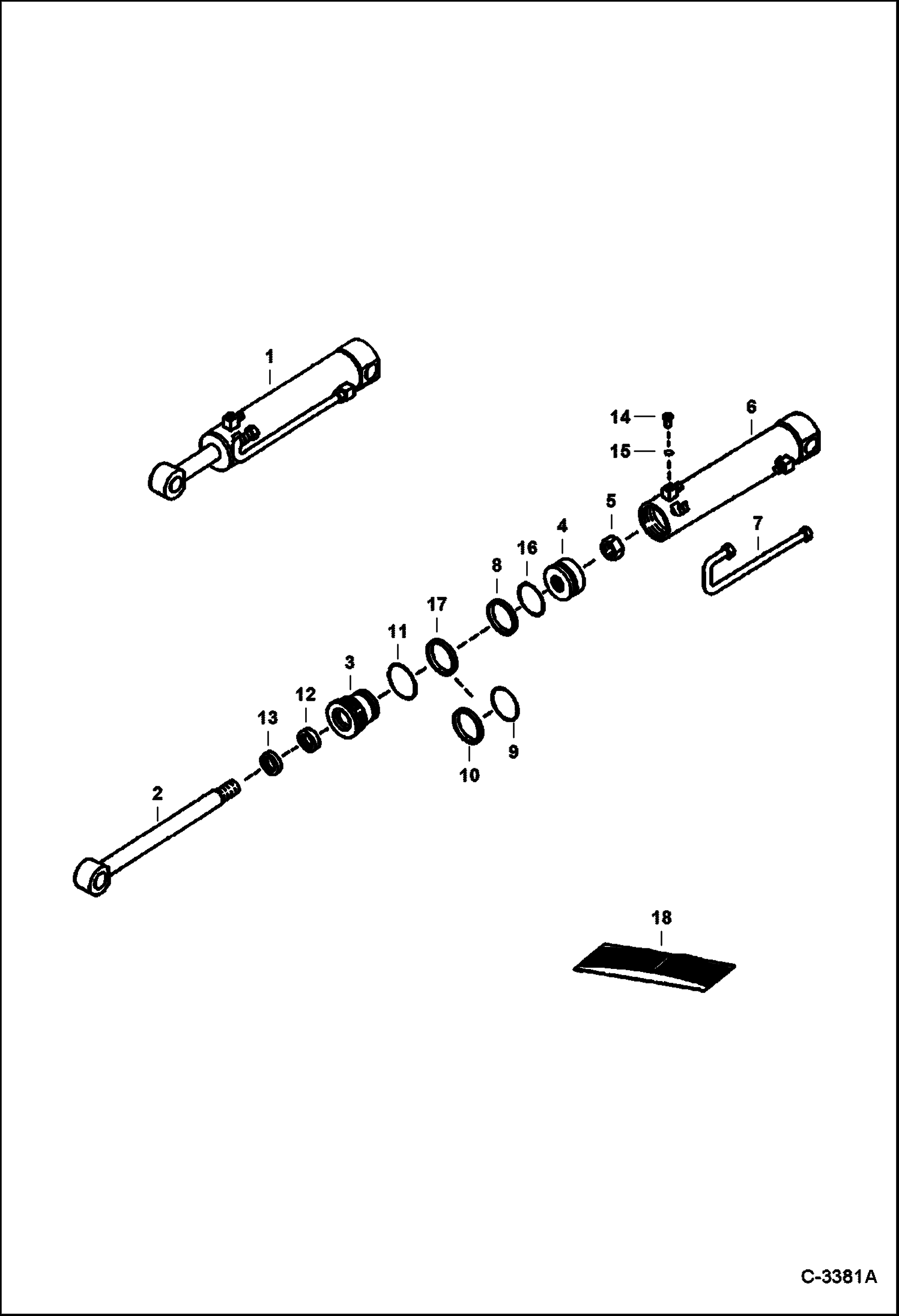

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (8709) (873 Only) 8709 BACKHOE

1

6589167

CYLINDER W/Ref. 2-6, 8-16

2

6589206

ROD

3

6588679

HEAD

4

6589169

PISTON

5

92D16

NUT

6

6589205

CASE

7

6589188

TUBE

8

6516229

PISTON SEAL Was NSS - D

9

25K60212

O RING 10 Was 54K60212 - B

10

80K332

WASHER back-up - Was NSS - D

11

25K40224

O RING 10 Was 54K40224 - B

12

6667327

SEAL Was 6538140 - A

13

6686999

WIPER, ROD CYL Was 6666544 - A

14

PLUG NLA - flat boss face - Was 47K-2 - A

14

6809197

PLUG tapered boss face - Was 90KV00002B - B

15

79K3

O RING 10 for flat boss face

15

95K3

O'RING for tapered boss face

16

25K30210

O-RING Was 54K30210 - B

17

7008356

SEAL, QUAD

18

7137936

KIT, SEAL Ref. 5, 8, 11-13, 16, & 17 - Was 6803315 - A
