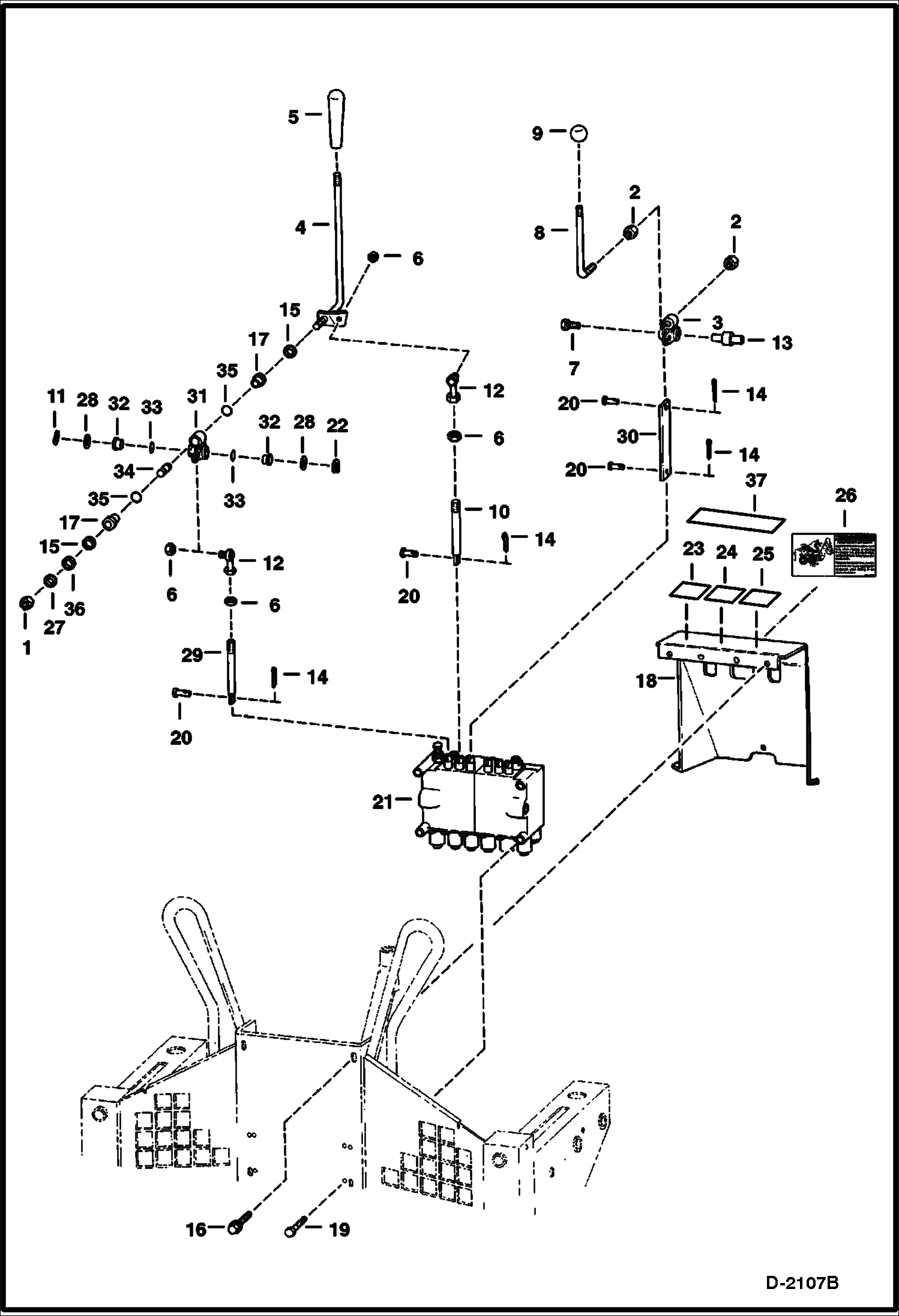

Запчасти Bobcat BACKHOE BACKHOE (Control Levers) (8709) (873 Only) 8709 BACKHOE

1

85D8

NUT, 5

2

7D8

NUT 5

3

6586081

PIVOT

4

6534659

LEVER R.H.

5

6510093

HANDLE GRIP

6

86D6

NUT Was 62D000006B - B

7

17C510

BOLT

8

6532947

LEVER

9

6515888

KNOB

10

6532949

ROD

11

6536803

WASHER

12

6599744

BALL JOINT

13

6561538

PIN spacer

14

1F208

PIN

15

6537831

SHIM

16

84G3712

BOLT 5

17

6537832

BUSHING

18

6588992

COVER

19

18C512

BOLT

20

4F4051

PIN

21

VALVE See Illustration BACKHOE/ D2111A

22

21J12

SNAP RING EXT Was 6651530 - B

23

6558050

DECAL

24

6561396

DECAL

25

6558049

DECAL

26

6596591

DECAL warning

27

25E21

WASHER 5

28

6536802

WASHER

29

6537833

ROD

30

6532948

LINK

31

6537814

PIVOT

32

6536801

BUSHING

33

58K015

O-RING 10

34

6537829

BUSHING

35

58K017

O-RING 10

36

6537830

WASHER

37

6805604

DECAL controls
