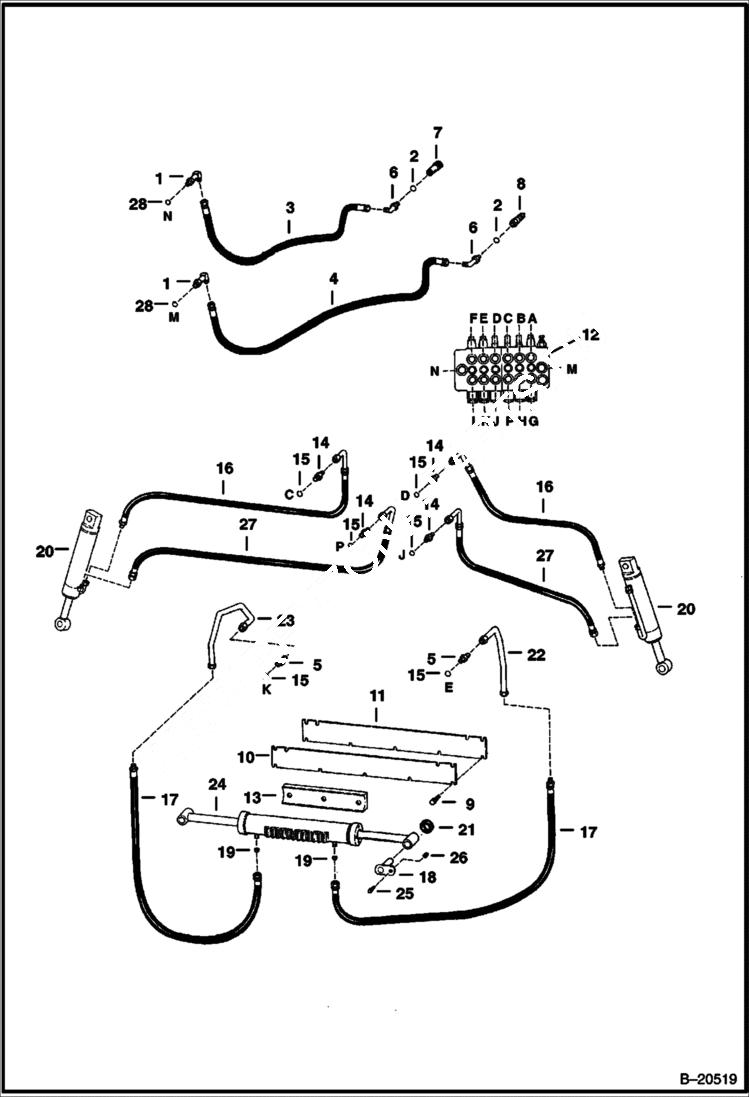

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (8709) (873 Only) 8709 BACKHOE

1

6519195

ELBOW W/Ref. 2

2

79K10

O RING 10 Use with poppet couplers

2

79K12

O RING 10 Use with flush face couplers - flat boss face

2

99K12

O RING Use with flush face couplers - tapered boss face

3

6534346

HOSE .875'' threads on quick coupler end - used with 905 elbows

3

6715168

HOSE 1.06'' threads on quick coupler end - used with 455 elbows

4

6534347

HOSE .875'' threads on quick coupler end - used with 905 elbows

4

6715169

HOSE 1.06'' threads on quick coupler end - used with 455 elbows

5

15K6

ADAPTER W/Ref. 15 - flat boss face

5

ADAPTER NLA - tapered boss face - W/Ref. 15 - Was 15KN00006B - A

5

15KB0808

FITTING, HYD CONNECTOR W/Ref. 15 - flat boss face

5

97K8

O-RING flared end

6

17K7

ELBOW 90 degrees - W/Ref. 2 - used with poppet couplers - flat boss face

6

17KB1012

FITTING, HYD ELBOW 90 degrees - W/Ref. 2 - used with flush face couplers - flat boss face - Was 1302104B - A

6

ELBOW NLA - 45 degrees - W/Ref. 2 - used with flush face couplers-tapered boss face - Was 18KV00008B - A

6

18KB1212

FITTING, HYD ELBOW 45 degrees - W/Ref. 2 - Use W/ flush face couplers - flat boss face

6

97K12

O'RING flared end

7

6598758

COUPLER, POPPET FEMALE straight

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

7

48K16

O RING 10 Use with poppet coupler

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE See BTI302 - straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

84G3110

SCREW

10

6532860

WEAR PLATE

11

6532861

SHIM

12

VALVE See Illustration BACKHOE/ D2111A

13

6532859

WEAR BAR

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10 for flat boss face

15

99K8

O-RING for tapered boss face

16

6596802

HOSE

17

6533046

HOSE

18

6532869

PIN

19

6587338

ORIFICE .090'' (2,29mm) dia - 0.42'' (10.67mm) O.D.

19

6592853

ORIFICE .090'' (2,29mm) dia - 0.55'' (13,97mm) O.D.

19

7109886

ORIFICE .086 dia. x .55'' O.D.

20

CYLINDER See Illustration BACKHOE/ C3381A stabilizer

21

6528927

WASHER

22

6532957

TUBE

23

6532959

TUBE

24

CYLINDER See Illustration BACKHOE/ NA2813B swing

25

84G3720

BOLT

26

55D6

NUT

27

6596801

HOSE

28

79K10

O RING 10
