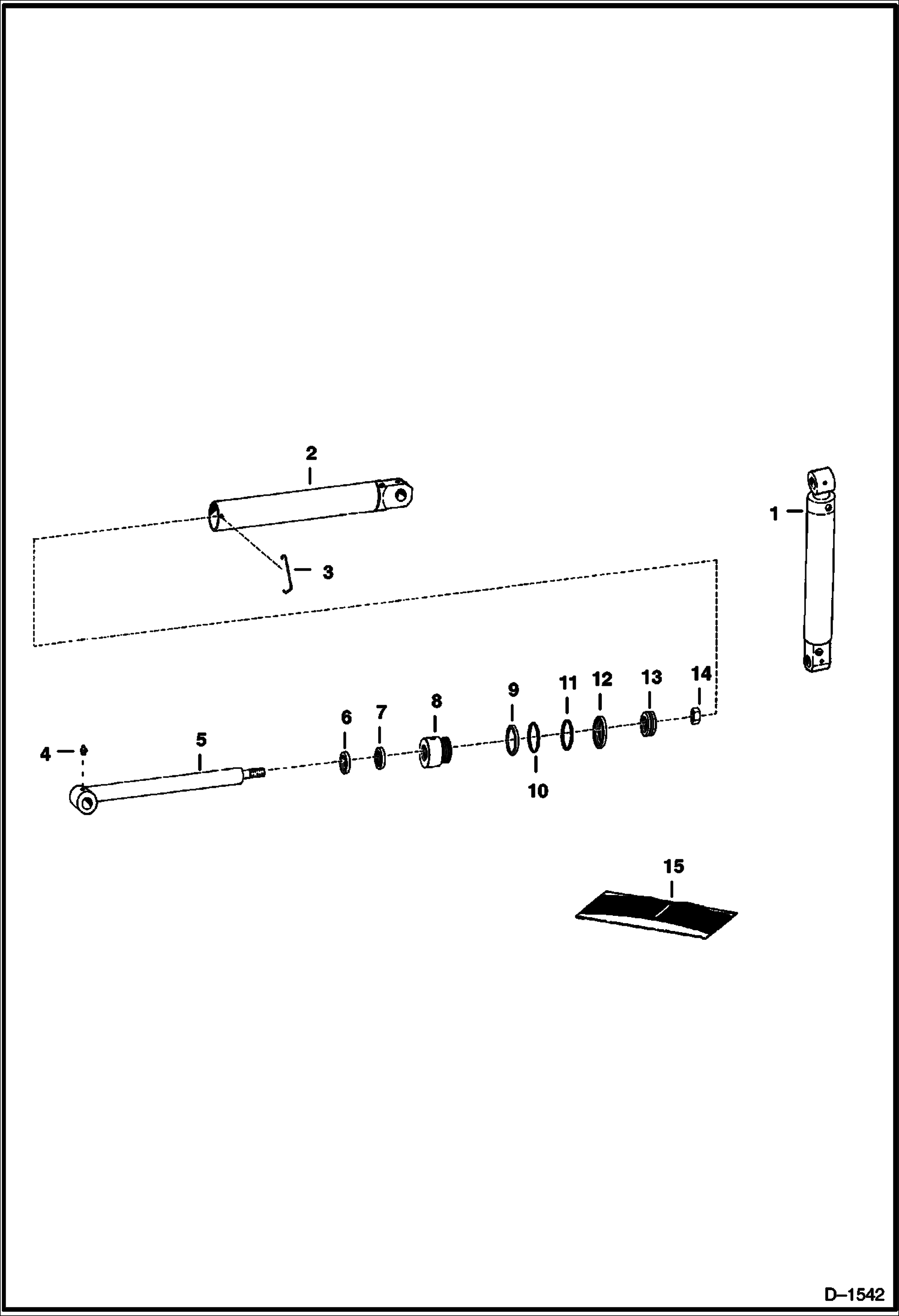

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (911 00101 - 00167) 911 BACKHOE

1

CYLINDER NLA - Ref. 2-14 - Order 6592000 - Was 6591988 - A

2

6598313

CASE

3

6598316

RETAINER gland

4

10H25

FITTING, GREASE 5

5

ROD NLA - Order 6592000 cylinder - Was 6598314 - A

6

SEAL NSS - wiper

7

SEAL NSS - u-cup

8

HEAD NLA - Order 6592000, Cylinder - Was 6676403 - A

9

WASHER NSS - back-up

10

O-RING NSS

11

O-RING NSS

12

RING NSS - slipper

13

6803870

PISTON Was 6553912 - A

14

86D16

NUT

15

6598900

SEAL KIT Ref. 3, 6, 7 & 9-12
