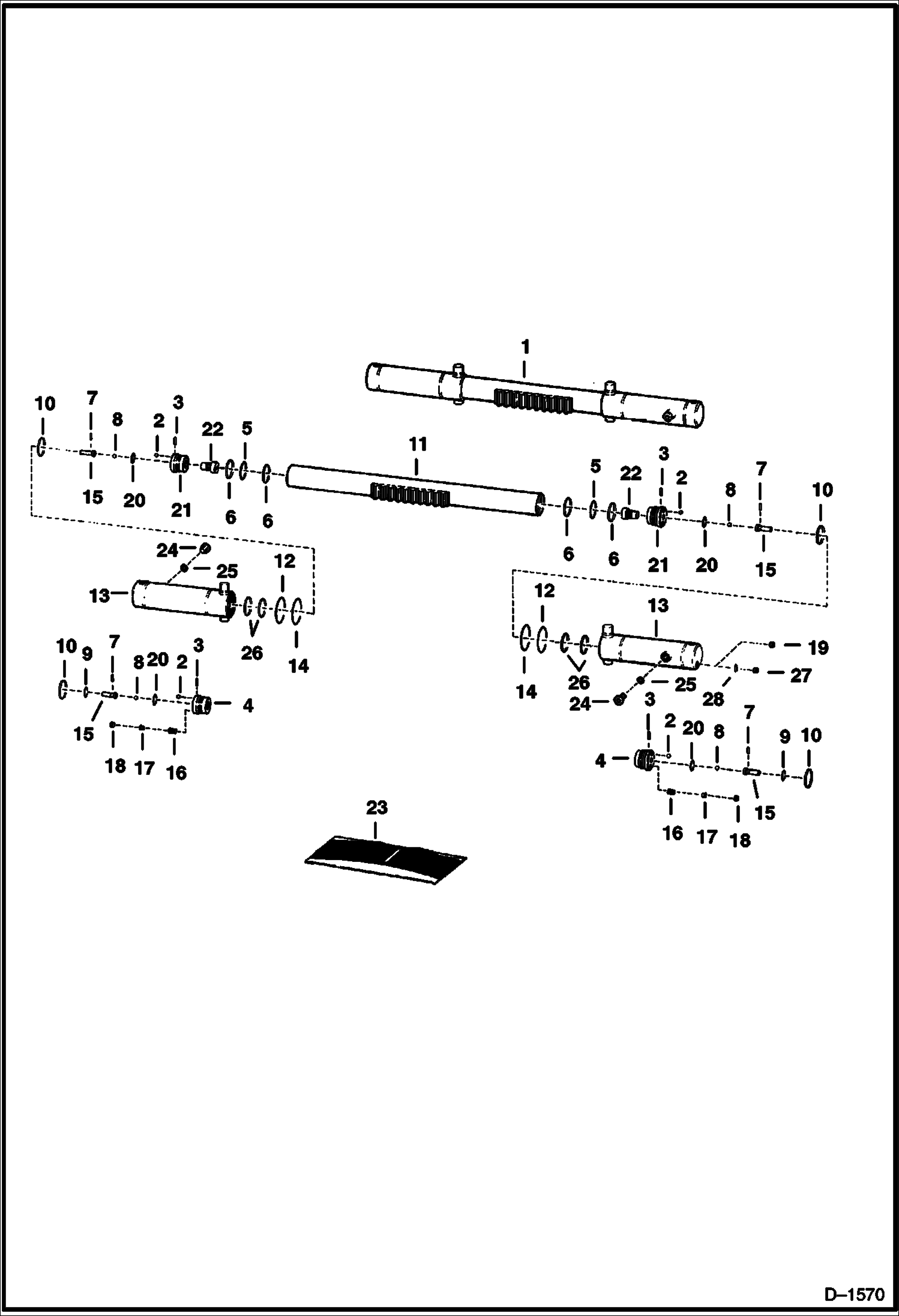

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (911) 911 BACKHOE

1

CYLINDER NLA - swing - Order Ref. 2, 3, 7, 8, 15 - 13, 19 & 21-24 - Was 6592876 - A

2

10J10

BALL

3

1306397

PIN ROLL

4

HEAD NLA - W/Ref. 16-18 - Order Ref. 2, 3, 7, 8, 15, 21 & 22

5

O-RING NSS

6

WASHER NSS - back-up

7

301923

ROLL PIN

8

10J8

BALL

9

RING NSS - retaining - Use W/Ref. 4 - only - Order Ref. 2, 3, 7, 8, 15, 21 & 22

10

6647467

RING retaining - Was NSS - D

11

6598331

ROD Was NLA - D

12

SEAL NSS - u-cup

13

CASE NLA - Order (1) 6589222 - W/Ref. 19 & 24 - Was 6598329 - A

13

6589222

CASE W/Ref. 24, 26 & 27

14

SEAL NSS - wiper

15

PIN NSS - dampening - W/Ref. 7-9 & 20 - Use W/Ref. 4 only - Order Ref. 2, 3, 7, 8, 15, 21 & 22 - Was 6598915 - A

15

6598913

PIN dampening - Use W/Ref. 21

16

SPRING NSS - W/Ref. 4 only - Order Ref. 2, 3, 7, 8, 15, 21 & 22

17

POPPET NSS - W/Ref. 4 only - Order Ref. 2, 3, 7, 8, 15, 21 & 22

18

SEAT NSS - W/Ref. 4 only - Order Ref. 2, 3, 7, 8, 15, 21 & 22

19

PLUG NSS - Was 6598335 - A

20

O-RING NSS

21

6630492

HEAD

22

RELIEF VALVE NLA - Was 6598204 - A

23

6589223

SEAL KIT Ref. 5, 6, 10, 12, 14, 20 & 26 - Was 6598336 - A

24

47K8

PLUG W/Ref. 25

25

79K12

O RING 10

26

6664805

WEAR RING

27

6632473

PLUG W/Ref. 28

28

58K112

O RING 10
