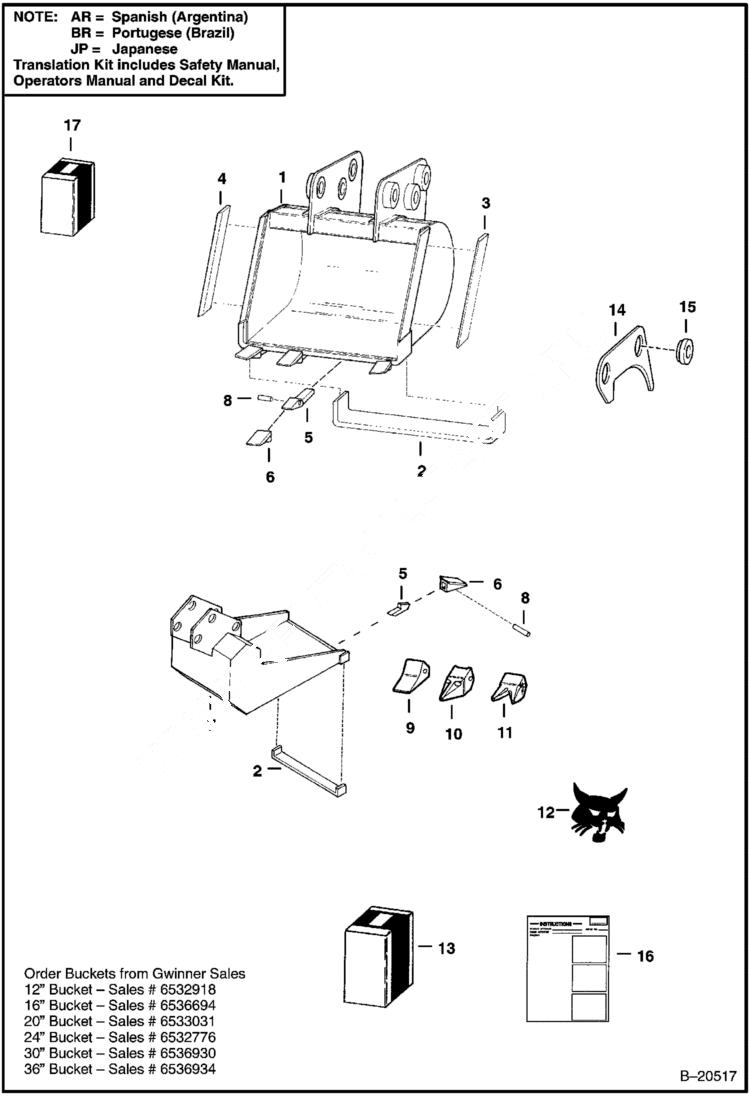

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (With 6 (152 mm) Cutting Edges) (911) 911 BACKHOE

1

BUCKET SALES - trenching - 12'' (304,8 mm), 16'' (406,4 mm), 20'' (508 mm), 24'' (609,6 mm), 30'' (762 mm) & 36'' (914,4 mm)

2

6593139

EDGE,CUTTING WELD ON BEVELED 10.79'' 12'' (304,8 mm)

2

6593067

CUTTING EDGE 16'' (406,4 mm)

2

6593115

CUTTING EDGE 20'' (508 mm)

2

6593121

EDGE, CUTTING WELD ON BEVELED 22.79'' 24'' (609,6 mm)

2

6593127

EDGE, CUTTING WELD ON BEVELED 28.79'' 30'' (762 mm)

2

6593133

CUTTING EDGE 36'' (914,4 mm)

3

6593062

CUTTING EDGE L.H.

4

6593063

EDGE, CUTTING WELD-ON SIDE R.H.

5

6518120

SHANK

6

6630424

TOOTH Was 1553699 - A

7

BUCKET SALES - open side - 12'' (304,8 mm) & 16'' (406,4 mm)

8

562660

PIN

9

6657330

TOOTH

10

6657328

TOOTH

11

6657329

TOOTH

12

6700191

DECAL, LOGO BOBCAT HEAD

12

6700192

DECAL

13

6586756

KIT to convert 911 buckets to 811 buckets - W/Ref. 14-16

14

6586757

PLATE

15

6560596

BUSHING

16

6722243

INSTRUCTION

16

6722243AR

INSTRUCTION translated - SEE NOTE - for Ref. 13

16

6722243BR

INSTRUCTION translated - SEE NOTE - for Ref. 13

17

6718778AR

KIT translation - SEE NOTE - for Ref. 13

17

6718778BR

KIT translation - SEE NOTE - for Ref. 13
