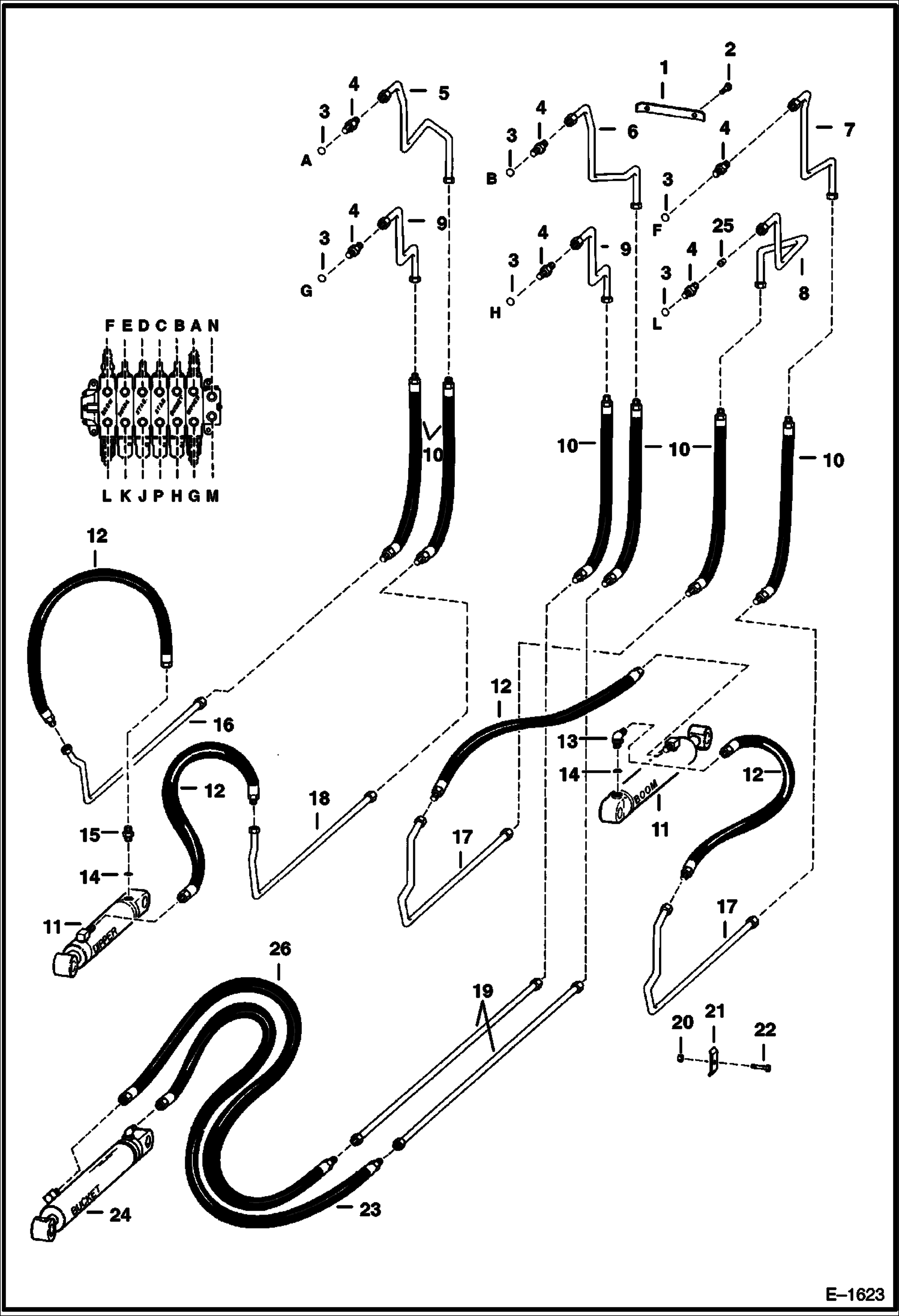

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry With Husco Valve) (911) 911 BACKHOE

1

6560554

CLAMP

2

84G3724

BOLT

3

79K8

O RING 10

4

731793

CONNECTR W/Ref. 3

5

6592818

TUBE

6

6592817

TUBE

7

6592819

TUBE

8

6592814

TUBE

9

6592822

TUBE

10

6562130

HOSE

11

CYLINDER See Illustration BACKHOE/ D1594 boom & dipperstick

12

6560363

HOSE

13

17K7

ELBOW W/Ref. 14

14

79K10

O RING 10

15

15K7

FITTING W/Ref. 14

16

6560365

TUBE

17

6560364

TUBE

18

6560644

TUBE

19

6560366

TUBE

20

85D6

NUT, 5

21

6502426

CLAMP

22

84G3728

BOLT

23

6561444

HOSE

24

CYLINDER See Illustration BACKHOE/ D1579A bucket

25

6592852

ORIFICE .187'' (4,75 mm) dia. - Was 6592825 - B

26

6529333

HOSE
