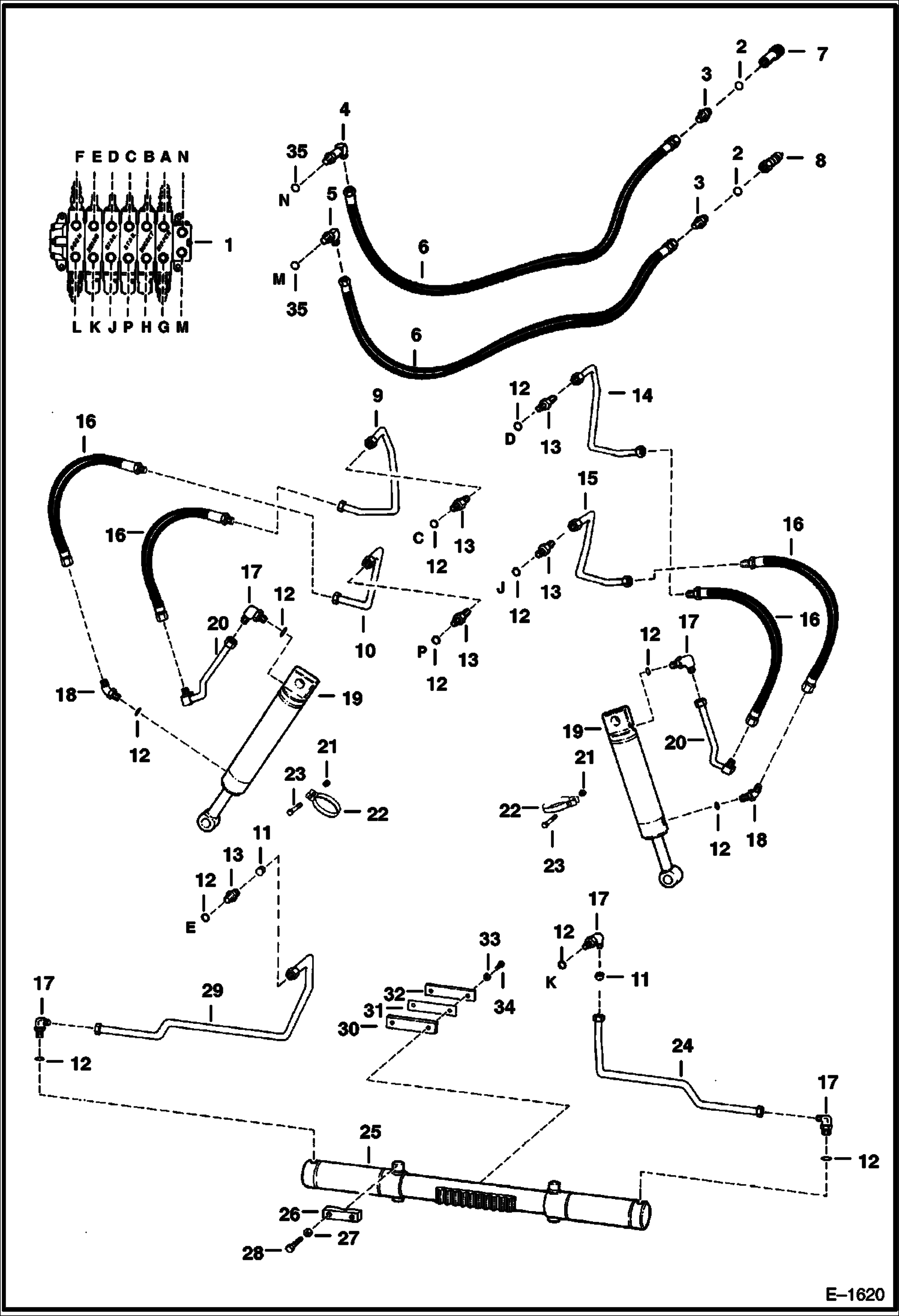

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics With Husco Valve) (911) 911 BACKHOE

1

6655020

VALVE See Illustration BACKHOE/ E1622B

2

79K10

O RING 10 Use with poppet couplers

2

79K12

O RING 10 Use with flush face couplers

3

15K7

FITTING W/Ref. 2 - used with poppet couplers

3

15KB1012

FITTING, HYD CONNECTOR W/Ref. 2 - used with flush face couplers - Was 755055B - A

4

6519195

ELBOW W/Ref. 2

5

17K7

ELBOW W/Ref. 2

6

672554

HYD HOSE

7

6598758

COUPLER, POPPET FEMALE straight

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

7

48K16

O RING 10 Use with poppet coupler

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6592821

TUBE

10

6592816

TUBE

11

6592824

ORIFICE 2,74 mm (0.108'') dia.

12

79K8

O RING 10

13

15K6

ADAPTER W/Ref. 12

14

6592820

TUBE

15

6592815

TUBE

16

6562128

HOSE

17

17K6

ELBOW W/ref. 12

18

18K6

FITTING W/Ref. 12

19

CYLINDER See Illustration BACKHOE/ D1765 See Illustration BACKHOE/ D1542 stab.

20

6561999

TUBE

21

85D5

NUT 5

22

6561995

CLAMP

23

17C520

BOLT 5

24

6592813

TUBE

25

CYLINDER See Illustration BACKHOE/ D1570 swing

26

6560428

RETAINER

27

27E8

WASHER 10

28

17C840

BOLT

29

6592823

TUBE

30

6562505

BAR wear

31

6562504

PLATE

32

6562524

SHIM

33

25E15

WASHER

34

17C514

BOLT

35

79K10

O RING 10
