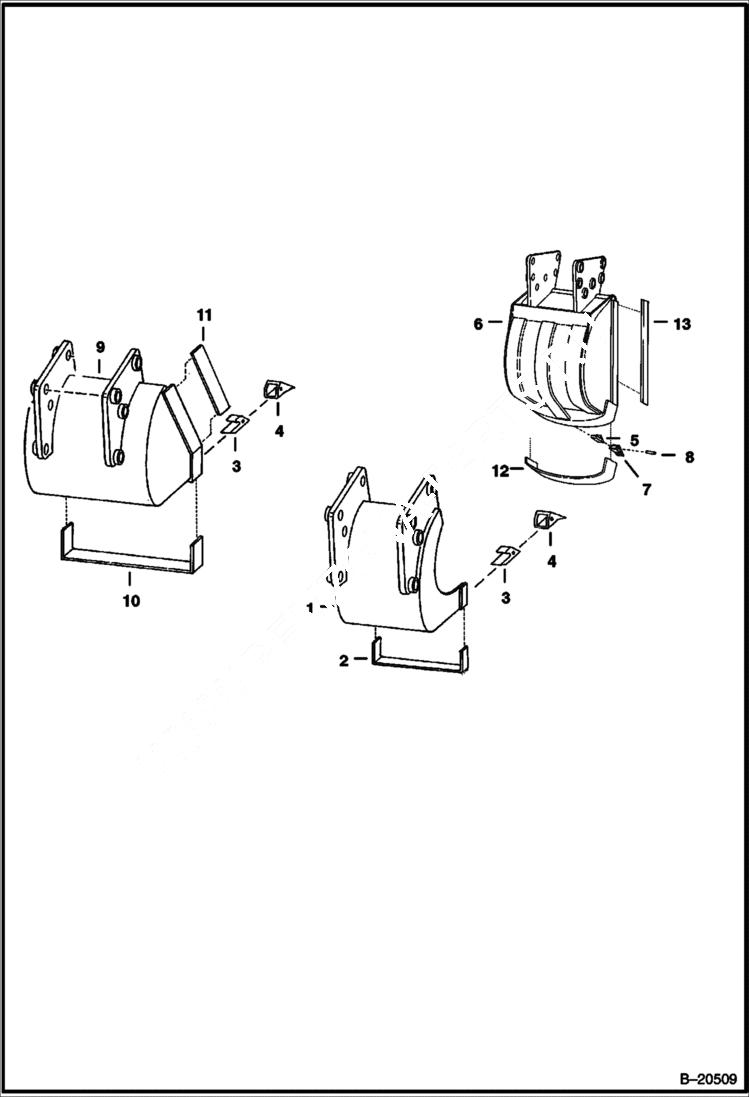

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (910) (825 Only) 910 BACKHOE

1

BUCKET NLA - bellhole - 12'' (304,8 mm)

1

BUCKET SALES - open side - 14'' (355,6 mm)

1

BUCKET SALES - open side - 16'' (406,4 mm)

2

6592052

CUTTING EDGE 12'' (304,8 mm) bellhole & 14'' (355,6 mm) open side - buckets

2

6592053

EDGE, CUTTING WELD ON BEVELED 16.22'' 16'' (406,4 mm)

3

6515119

SHANK

4

1550017

TOOTH, BUCKET 25

5

6518120

SHANK

6

BUCKET SALES - ribbed - 20'' (508 mm)

6

BUCKET SALES - ribbed - 24'' (609,6 mm)

7

6630424

TOOTH Was 1553699 - A

8

562660

PIN

9

BUCKET SALES - std. - 16'' (406,4 mm)

9

BUCKET SALES - std. - 30'' (762 mm)

9

BUCKET SALES - std. - 36'' (914,4 mm)

10

6592053

EDGE, CUTTING WELD ON BEVELED 16.22'' 16'' (406,4 mm)

10

6592054

CUTTING EDGE 30'' (762 mm)

10

6592055

CUTTING EDGE 36'' (914,4 mm)

11

6542986

CUTTING EDGE R.H.

11

6542987

CUTTING EDGE L.H.

12

6592216

CUTTING EDGE 20''

12

6592217

EDGE, CUTTING WELD-ON SIDE 24''

13

6544634

CUTTING EDGE R.H.

13

6544633

CUTTING EDGE L.H.
