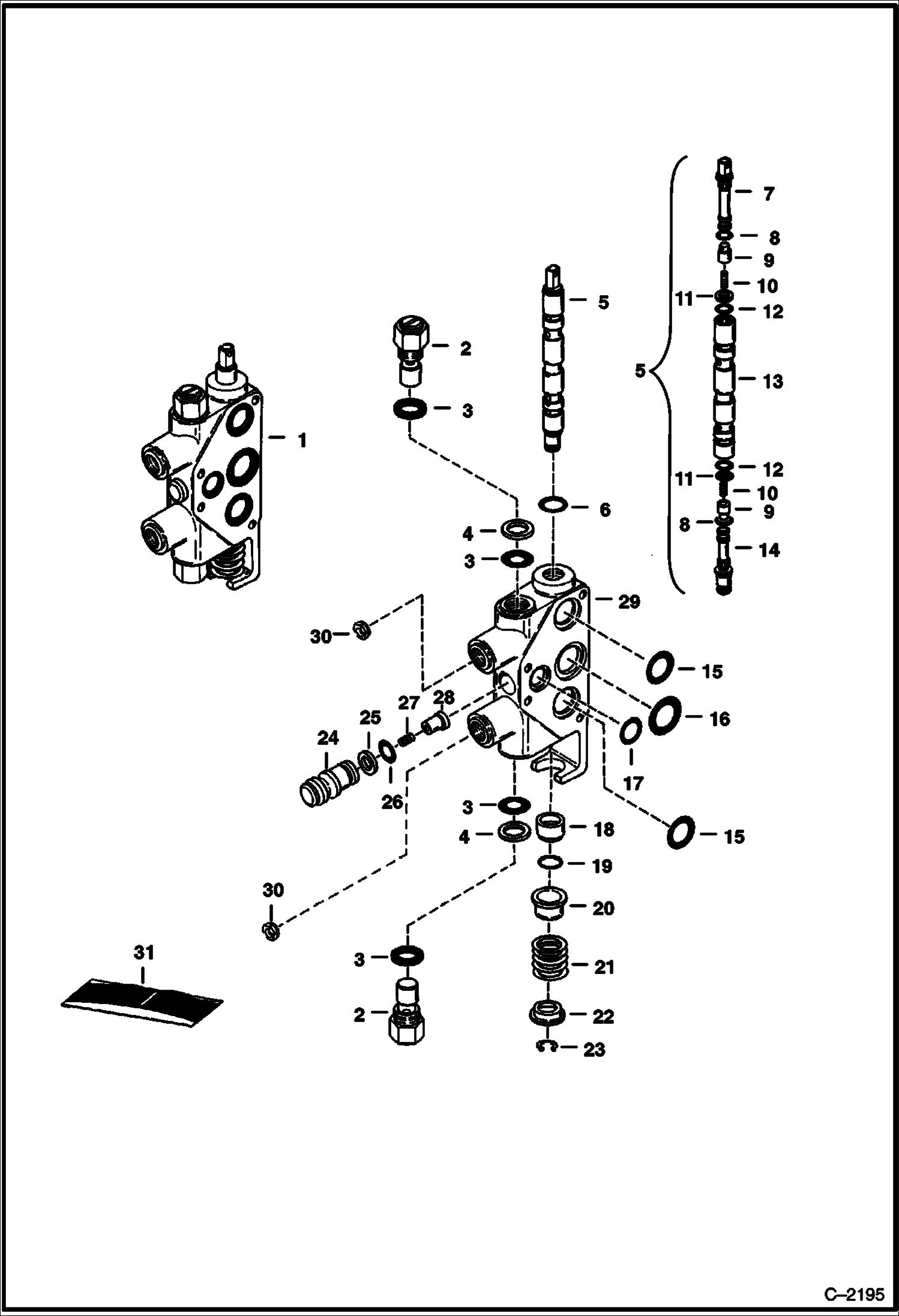

Запчасти Bobcat BACKHOE BACKHOE (Swing Control Section) (910) (825 Only) 910 BACKHOE

1

VALVE SECTION NLA - Ref. 5-29 - Was 6510044 - A

2

RELIEF VALVE NSS - 1875 PSI - Order Ref. 1 - Was 6510056 - A

3

O-RING NSS

4

WASHER NSS - back-up

5

SPOOL NLA

6

O-RING NSS

7

SPOOL NSS - end

8

25K20012

O RING 10

9

PLUNGER NSS

10

SPRING NSS

11

BACK-UP RING NLA - Was 80K000010B - A

12

25K20008

O RING 10

13

SPOOL NLA - body

14

SPOOL NSS - end

15

O-RING NSS

16

O-RING NSS

17

O-RING NSS

18

SLEEVE NSS - Was 6510045 - A

19

O-RING NSS

20

4149075

WASHER deep

21

4149068

SPRING SP spool

22

4149067

WASHER, S shallow

23

SNAP RING NSS

24

4149069

BODY LIFT lift check

25

WASHER NSS - back-up

26

O-RING NSS

27

1550482

SPRING lift check

28

4149071

PLUNGER L lift check

29

BODY NLA - section

30

1550933

ORIFICE .125'' (3,18 mm)

31

SEAL KIT NLA - Ref. 3, 4, 6, 19, 23, 25 & 26 - Was 6511441 - A

31

6510064

SEAL KIT Ref. 15-17
