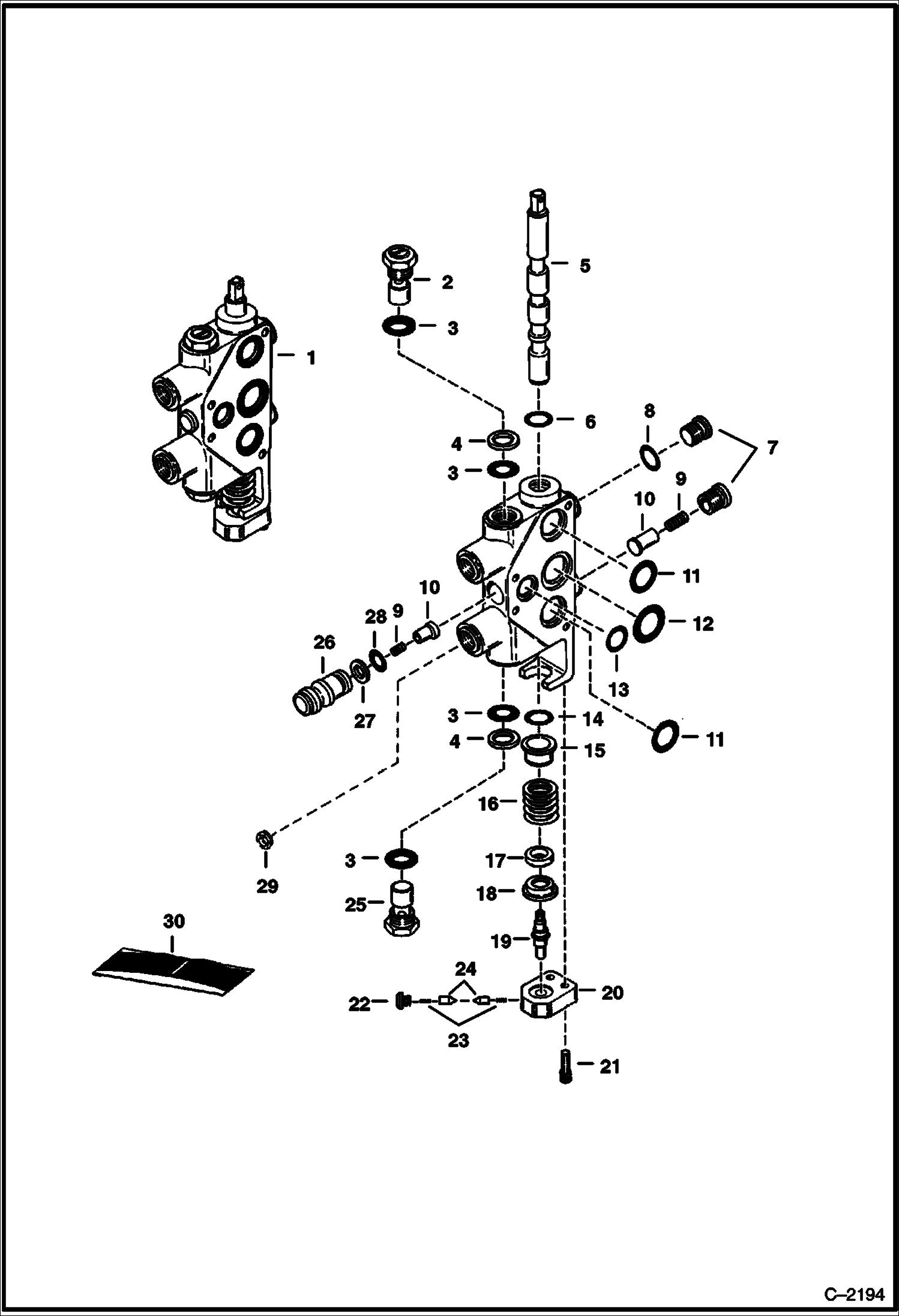

Запчасти Bobcat BACKHOE BACKHOE (Boom Section) (910) (825 Only) 910 BACKHOE

1

VALVE SECTION NLA - Ref. 5-24 & 26-28 - Was 6510049 - A

2

6512603

RELIEF VALVE 2750 PSI - not included in valve section

3

O-RING NSS

4

WASHER NSS - back-up

5

SPOOL NLA

6

O-RING NSS

7

6632473

PLUG lift check - Was 947754B - A

8

O-RING NSS

9

1550482

SPRING lift check

10

4149071

PLUNGER L lift check

11

O-RING NSS

12

O-RING NSS

13

O-RING NSS

14

O-RING NSS

15

6519735

WASHER deep

16

4149068

SPRING SP spool

17

6510054

WASHER

18

4149067

WASHER, S shallow

19

BOLT NSS - detent - Was 6510051 - A

20

6510052

BLOCK detent

21

73G416

SCREW cap - Was 11G000416B - A

22

6519736

PLUG detent pawl

23

6510053

SPRING detent pawl

24

6510050

PAWL detent

25

RELIEF VALVE NLA - 3000 PSI - not included in valve section - Was 6512602 - A

26

4149069

BODY LIFT lift check

27

WASHER NSS - back-up

28

O-RING NSS

29

6511196

ORIFICE .1875 - not included in valve section

30

6510060

SEAL KIT Ref. 3, 4, 6, 8, 14, 27 & 28

30

6510064

SEAL KIT between sections - Ref. 11-13
