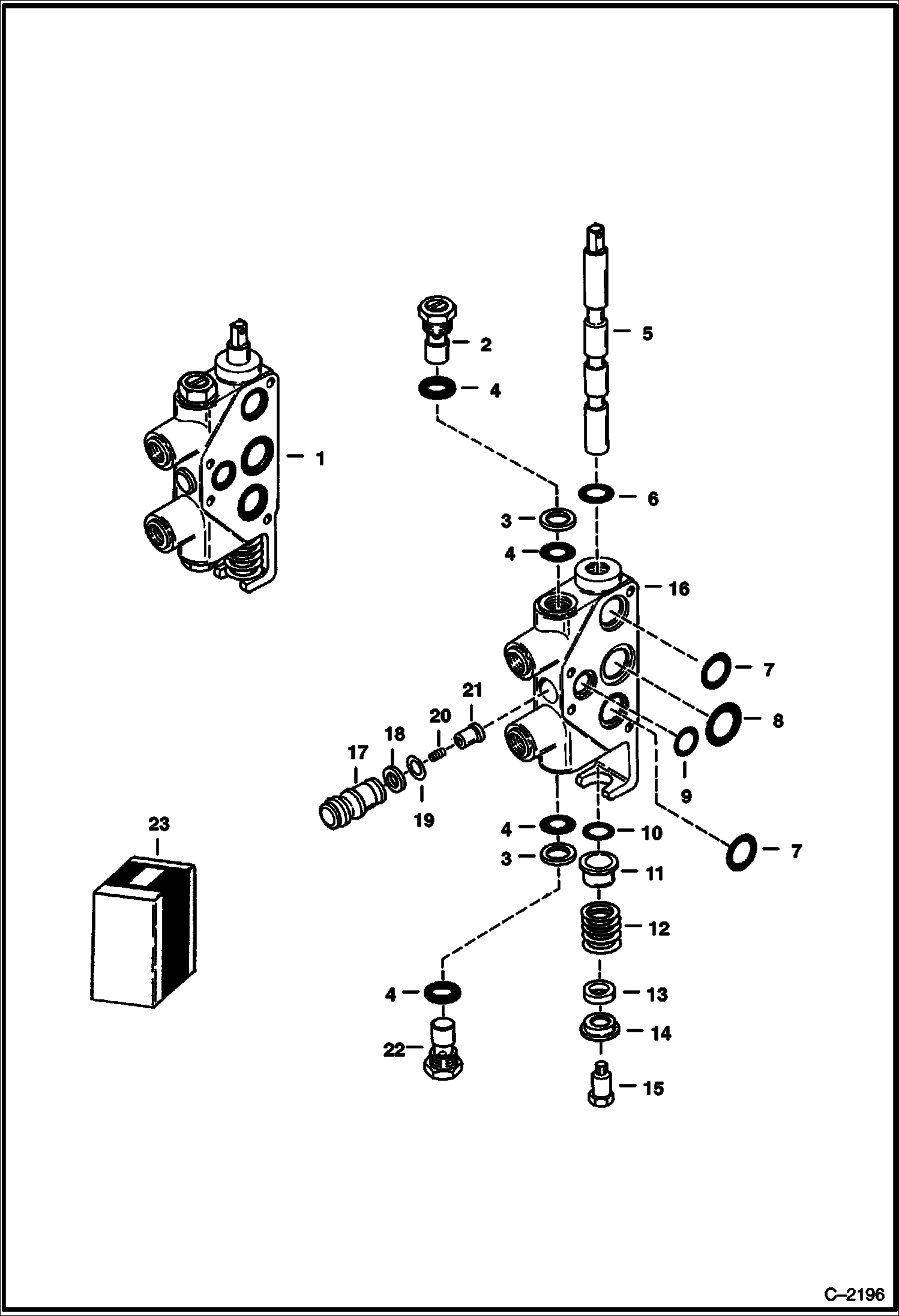

Запчасти Bobcat BACKHOE BACKHOE (Dipperstick Control Section) (910) (825 Only) 910 BACKHOE

1

6510062

VALVE SECTION Ref. 5-21

2

RELIEF VALVE NLA - 3000 PSI - Was 6512602 - A

3

73K116

RING Was 80K000116B

4

25K30024

O RING 10

5

SPOOL NLA

6

O-RING NSS

7

O-RING NSS

8

O-RING NSS

9

O-RING NSS

10

O-RING NSS

11

4149070

WASHER deep

12

4149068

SPRING SP

13

4149072

WASHER

14

4149067

WASHER, S shallow

15

947750

SCREW spool

16

HOUSING NLA - valve section

17

4149069

BODY LIFT lift check

18

WASHER NSS - back-up

19

O-RING NSS

20

1550482

SPRING lift check

21

4149071

PLUNGER L lift check

22

6512603

RELIEF VALVE 2750 PSI

23

6510059

SEAL KIT Ref. 3, 4, 6, 10, 18 & 19

23

6510064

SEAL KIT Between sections - Ref. 7-9
