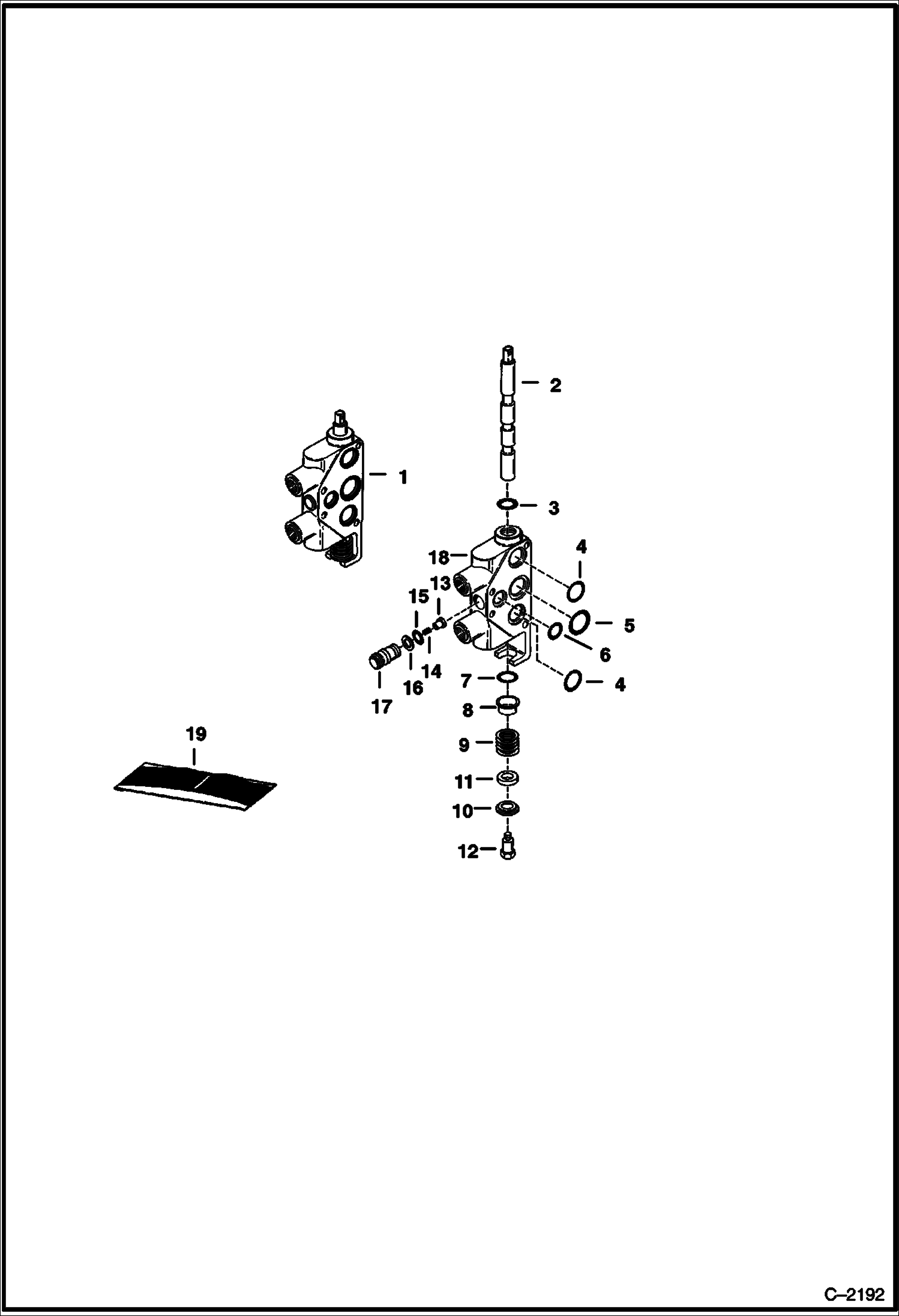

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer & Bucket Control Section) (910) (825 Only) 910 BACKHOE

1

VALVE SECTION NLA - stabilzer & bucket - Was 6510008 - A

2

SPOOL NLA

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

O-RING NSS

7

O-RING NSS

8

4149070

WASHER deep

9

4149068

SPRING SP spool

10

4149072

WASHER

11

4149067

WASHER, S shallow

12

947750

SCREW spool

13

4149071

PLUNGER L lift check

14

1550482

SPRING lift check

15

O-RING NSS

16

WASHER NSS - back-up

17

4149069

BODY LIFT lift check

18

BODY NLA - valve section

19

6510058

SEAL KIT Ref. 3, 7 & 14-16

19

6510064

SEAL KIT between section - Ref. 4-6
