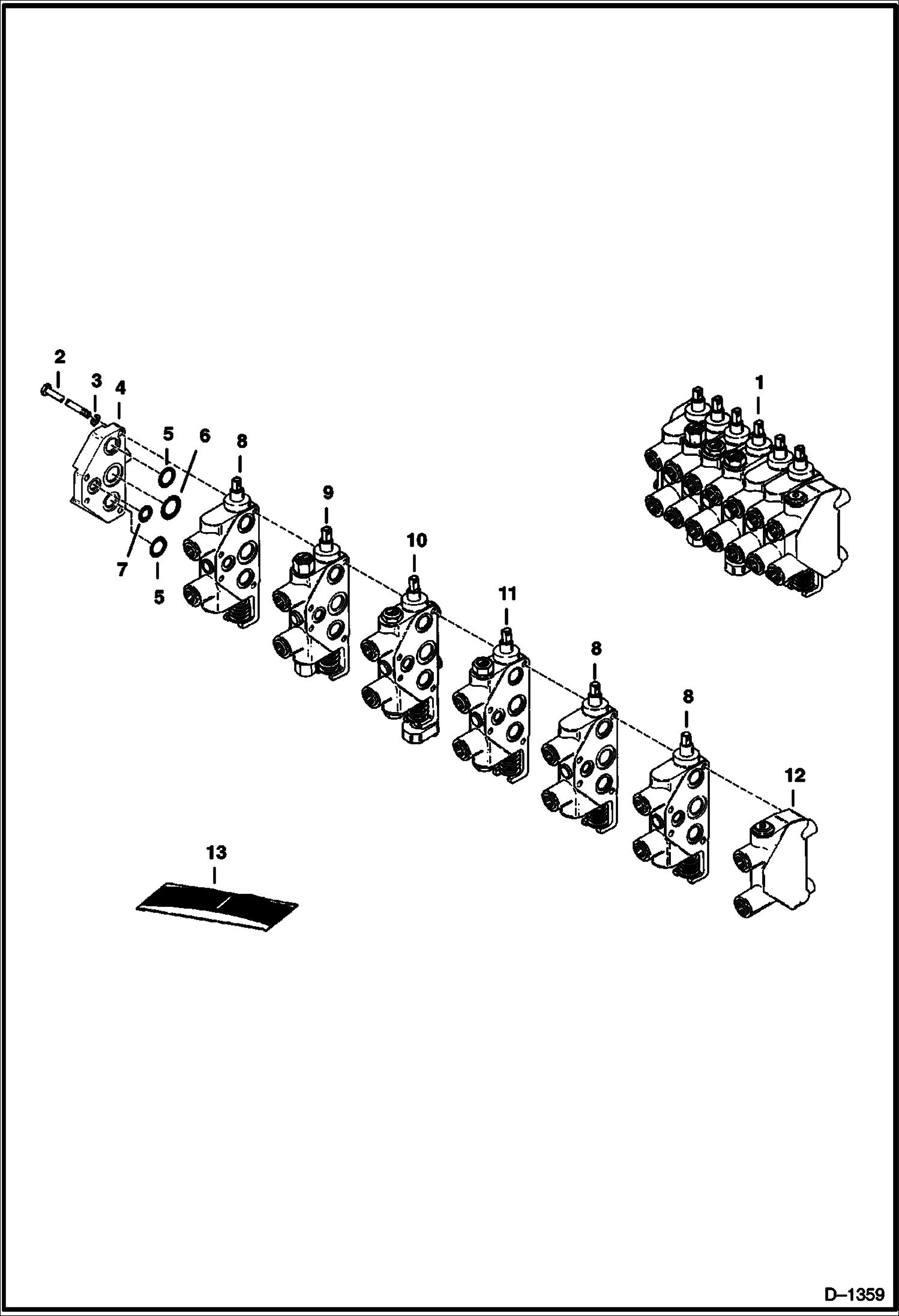

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (910) (825 Only) 910 BACKHOE

1

VALVE NLA - order parts per section as needed - Was 6519917 - A

2

17C6174

BOLT

3

4E6

WASHER

4

6510041

PLATE end - L.H.

5

O-RING NSS

6

O-RING NSS

7

O-RING NSS

8

VALVE SECTION NLA - stabilzer & bucket - Was 6510008 - A

9

VALVE SECTION NLA - swing - Was 6510044 - A

10

VALVE SECTION NLA - boom - Was 6510049 - A

11

6510062

VALVE SECTION dipperstick

12

PLATE NLA - port - Was 6510042 - A

13

6510064

SEAL KIT between sections - Ref. 5-7

13

6510065

SEAL KIT major repair
