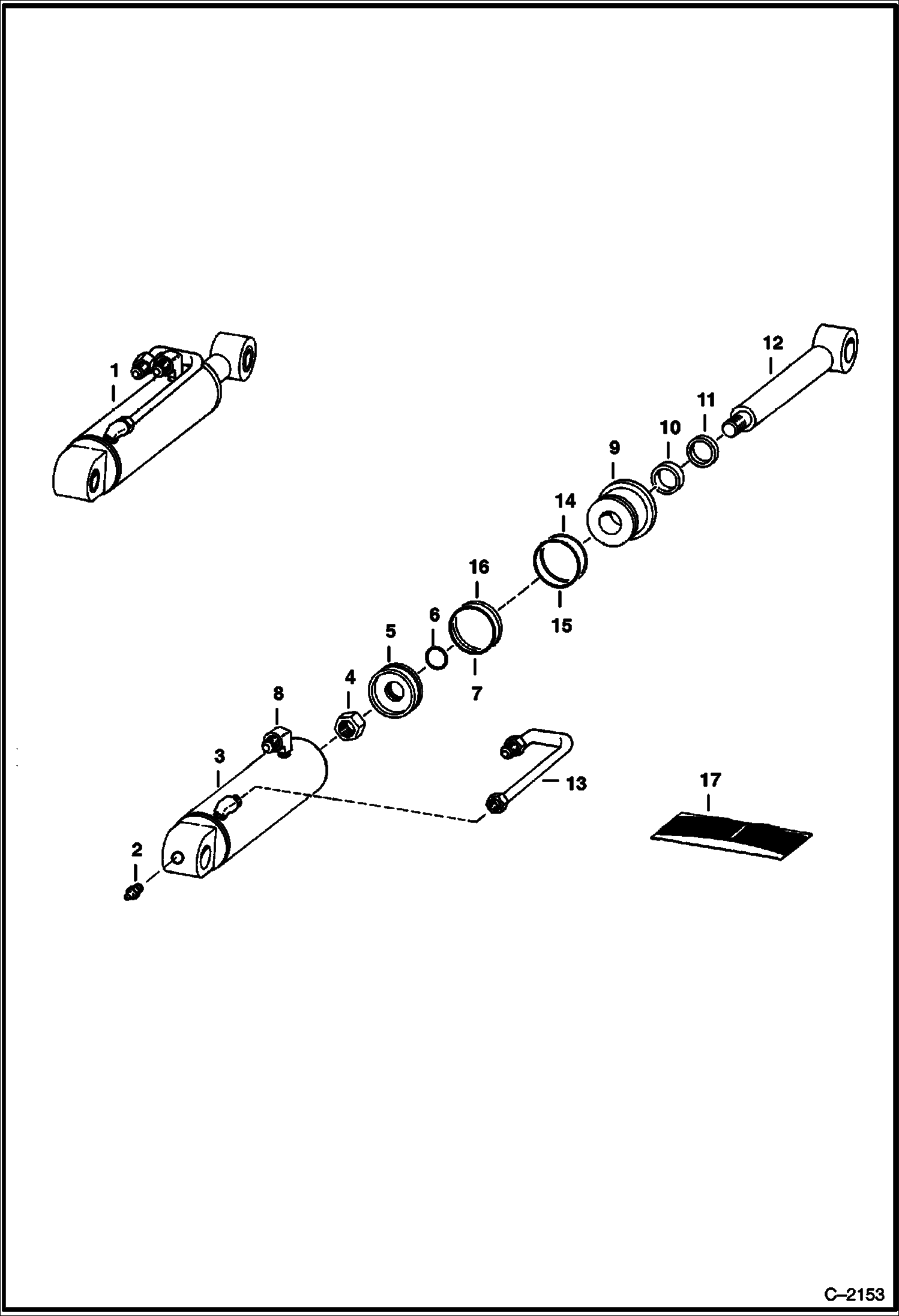

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (910) (825 Only) 910 BACKHOE

1

6591348

CYLINDER

2

36H25

FITTING

3

CASE NSS

4

86D16

NUT

5

6591347

PISTON

6

O-RING NSS

7

947088

RING, BACK-UP Was NSS - D

8

87F7

UNION

9

6591343

HEAD

10

6518201

SEAL Was NSS - D

11

6690707

WIPER, ROD CYL Was 1657087 - A

12

6591339

ROD

13

6590973

TUBE

14

WASHER NSS - Was 73K-334 - A

15

O-RING NSS

16

25K30218

O RING 10 Was NSS - D

17

6661321

SEAL KIT W/Ref. 6, 10, 11 & 14-16 - Was 6591350 - A
