BACKHOE (Bucket Cylinder) (Iowa Ind.) (910) (825 Only)

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (Iowa Ind.) (910) (825 Only) 910 BACKHOE

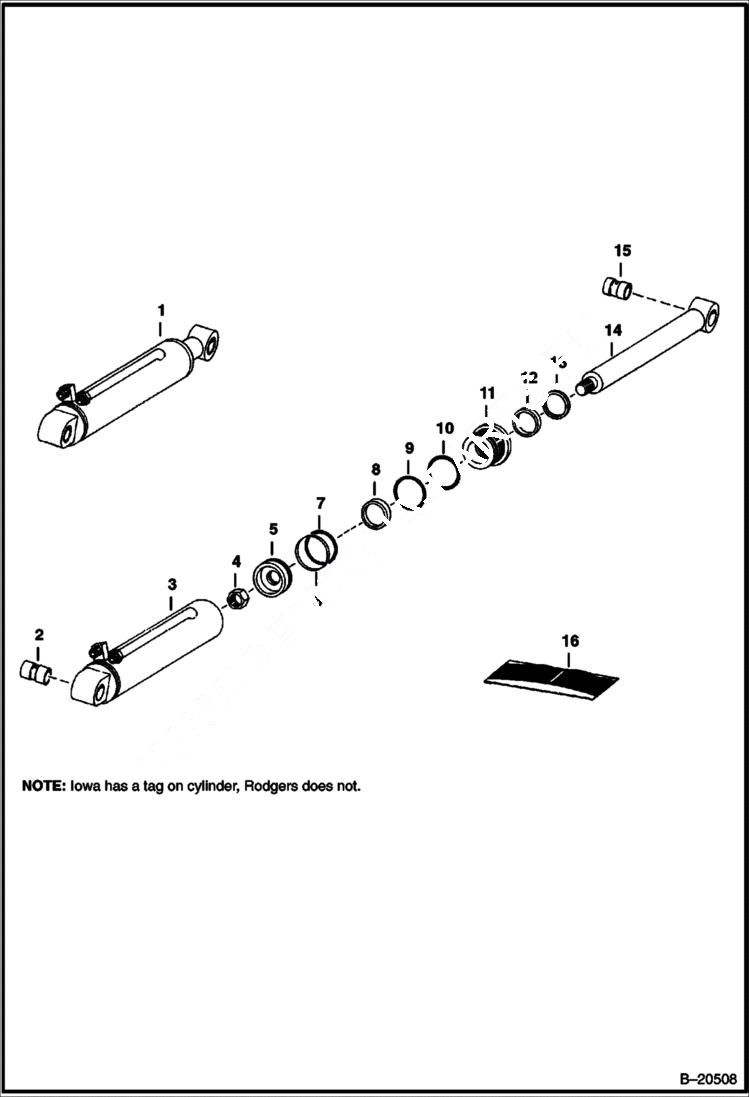

Схема запчастей Bobcat BACKHOE - BACKHOE (Bucket Cylinder) (Iowa Ind.) (910) (825 Only) 910 BACKHOE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration BACKHOE/ C2154 NLA - Order 6544548 - SEE NOTE

2

6546514

BUSHING

3

CASE NLA

4

86D16

NUT

5

6591347

PISTON

6

RING NSS

7

O-RING NSS

8

6591375

SPACER

9

O-RING NSS

10

WASHER NSS - back-up

11

6591376

HEAD

12

SEAL NSS

13

WIPER NSS - rod

14

6591374

ROD cylinder

15

6546515

BUSHING

16

6661322

SEAL KIT Ref. 6, 7, 9, 10, 12 & 13 - Was 6591382 - A
