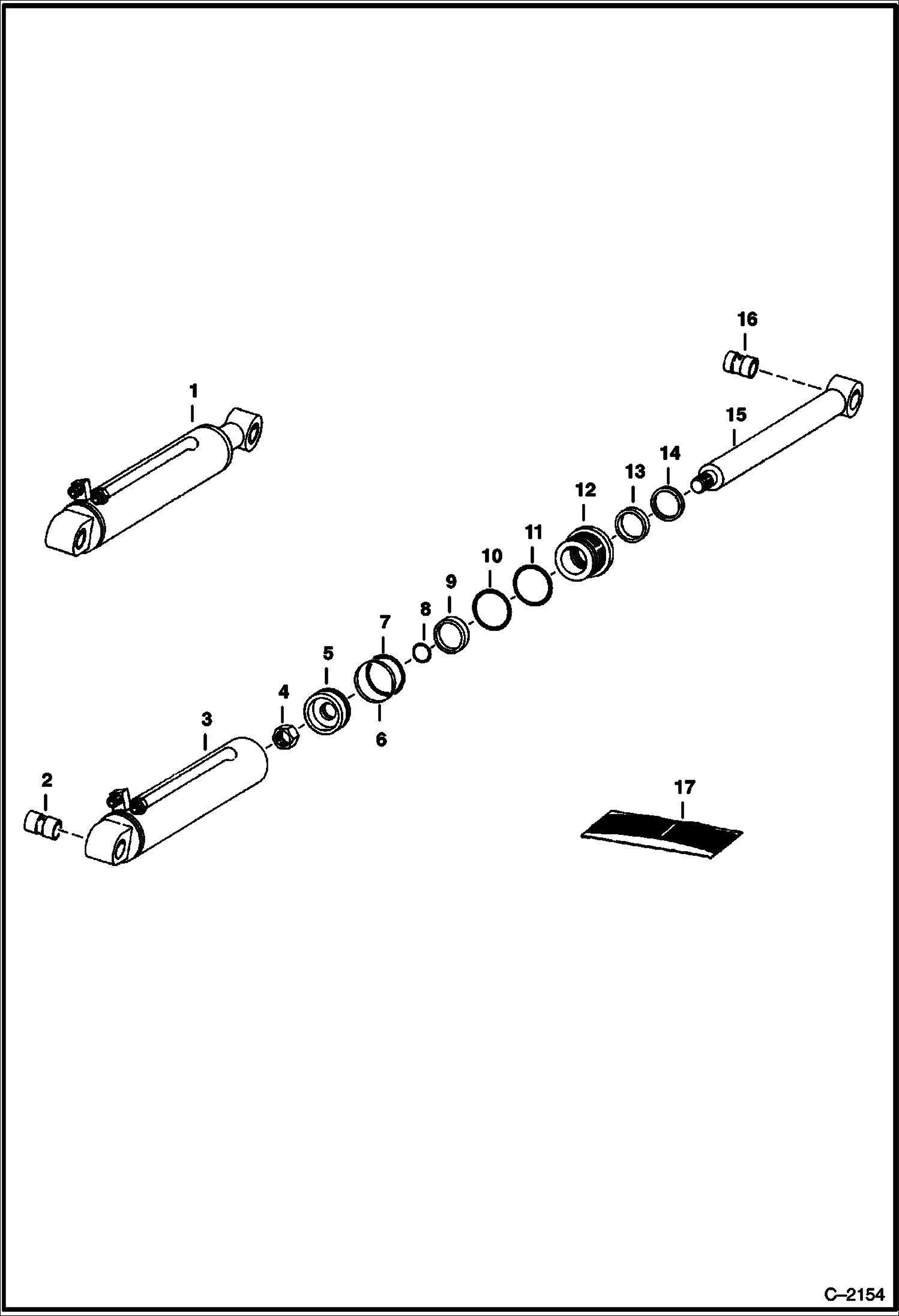

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (Rodgers or Sierra) (910) (825 Only) 910 BACKHOE

1

6544548

CYLINDER W/Ref. 2-16

2

6546514

BUSHING

3

CASE NLA

4

6810539

NUT Was 6804592 - A

5

6803870

PISTON Was 6553912 - A

6

947088

RING, BACK-UP

7

25K30218

O RING 10 Was 54K30218 - B

8

58K216

O RING 10 not used in latest cylinder

9

6546513

SPACER

10

25K40224

O RING 10 Was 54K40224 - B

11

73K232

RING, BACK-UP back-up - Was 80K232 - A

12

6533386

HEAD Was 6546508 - A

13

6667328

SEAL Was 6538277 - A

14

6686998

WIPER, ROD CYL Was 6666545 - A

15

6546482

ROD cylinder

16

6546515

BUSHING

17

7137940

SEAL KIT Ref. 6-8, 10-11, 13 & 14 - Was 6804611 - A
