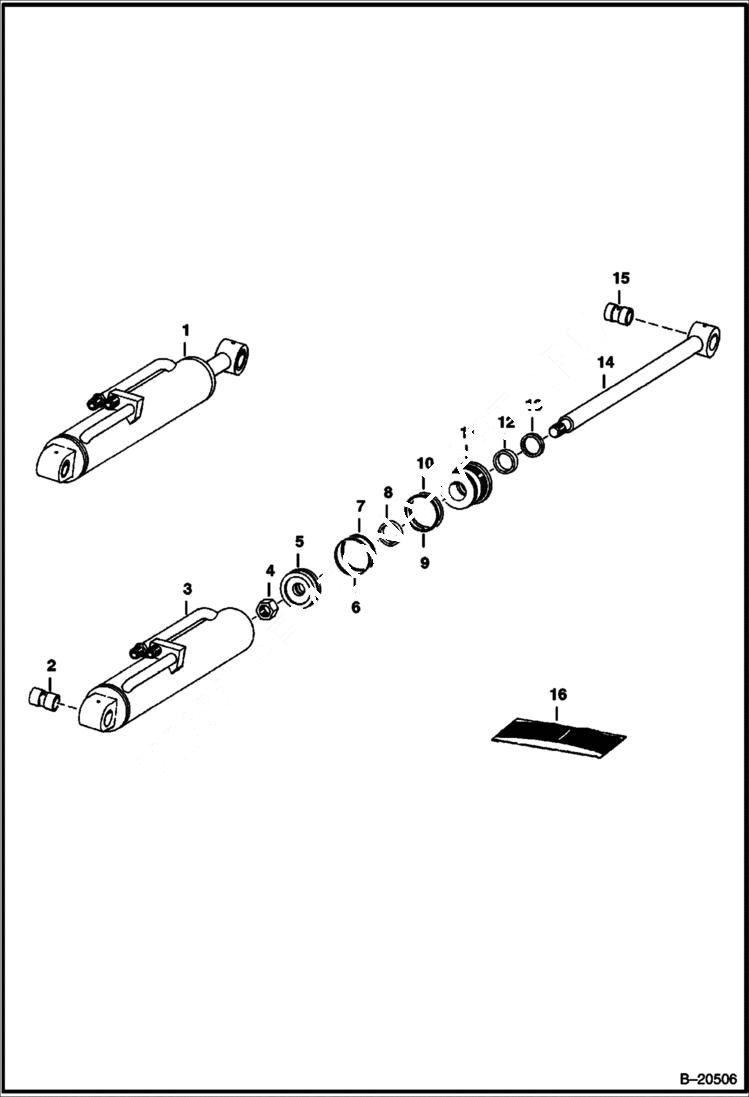

Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) (Iowa Ind.) (910) (825 Only) 910 BACKHOE

1

CYLINDER See Illustration BACKHOE/ C2155 NLA - Use 6544546

2

6546514

BUSHING

3

CASE NLA

4

86D16

NUT 1'' (25,4 mm)

5

6591354

PISTON

6

RING NSS

7

O-RING NSS

8

6591359

STOP

9

O-RING NSS

10

WASHER NSS - back-up

11

6591353

HEAD

12

SEAL NSS

13

WIPER NSS - rod

14

6591356

ROD

15

6546515

BUSHING

16

6661294

SEAL KIT Ref. 6, 7, 9, 10, 12 & 13 - Was 6555851 - A
