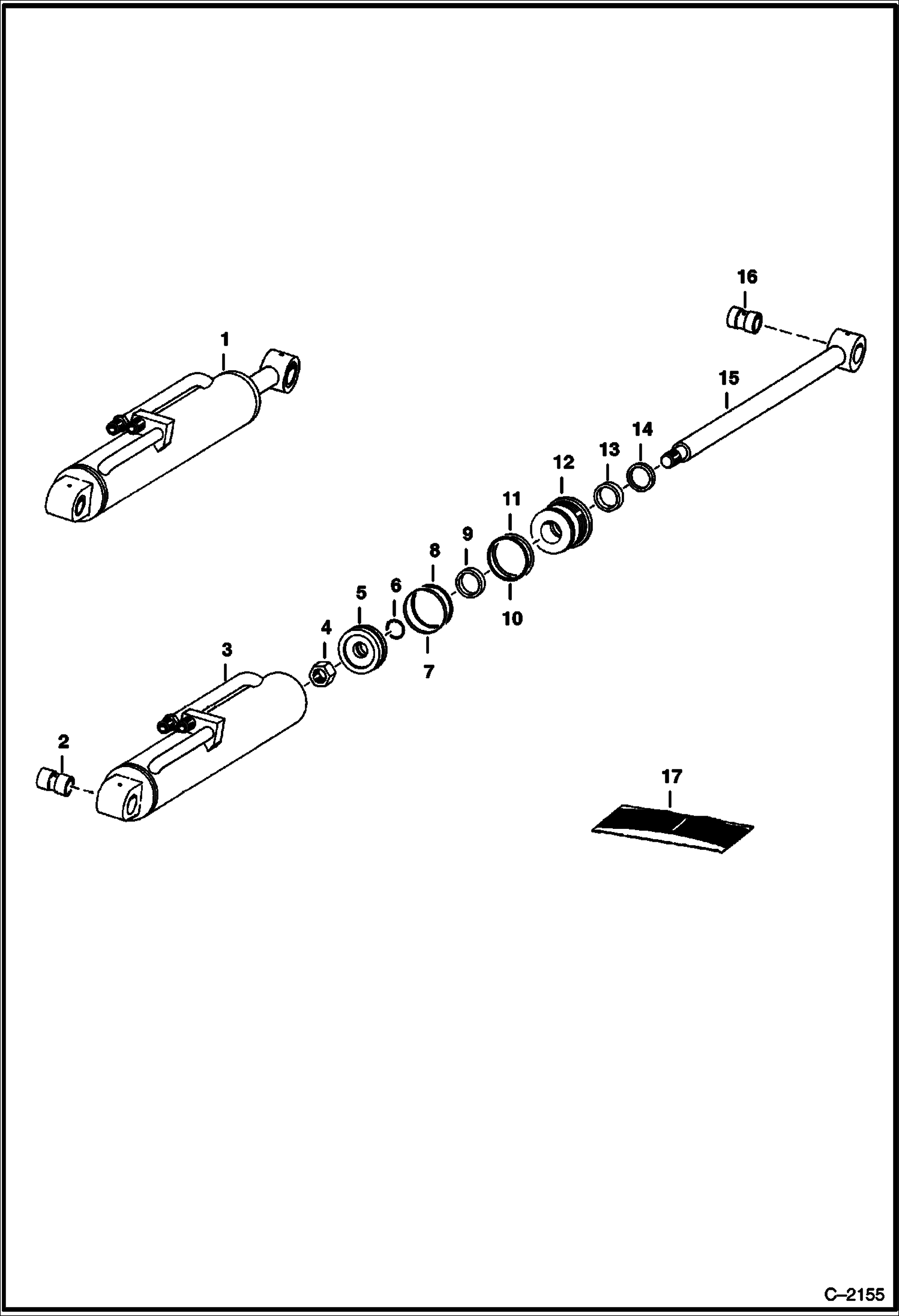

Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) (Rodgers or Sierra) (910) (825 Only) 910 BACKHOE

1

6544546

CYLINDER

2

6546514

BUSHING

3

CASE NLA

4

62D18

NUT 1.125'' (28,58 mm)

5

6546505

PISTON

6

O-RING NSS

7

RING NSS

8

O-RING NSS

9

6546512

SPACER

10

O-RING NSS

11

WASHER NSS - back-up

12

6546504

HEAD

13

SEAL NSS

14

WIPER NSS - rod

15

6546470

ROD

16

6546515

BUSHING

17

6661294

SEAL KIT Ref. 6-8, 10, 11, 13 & 14 - Was 6555851 - A
