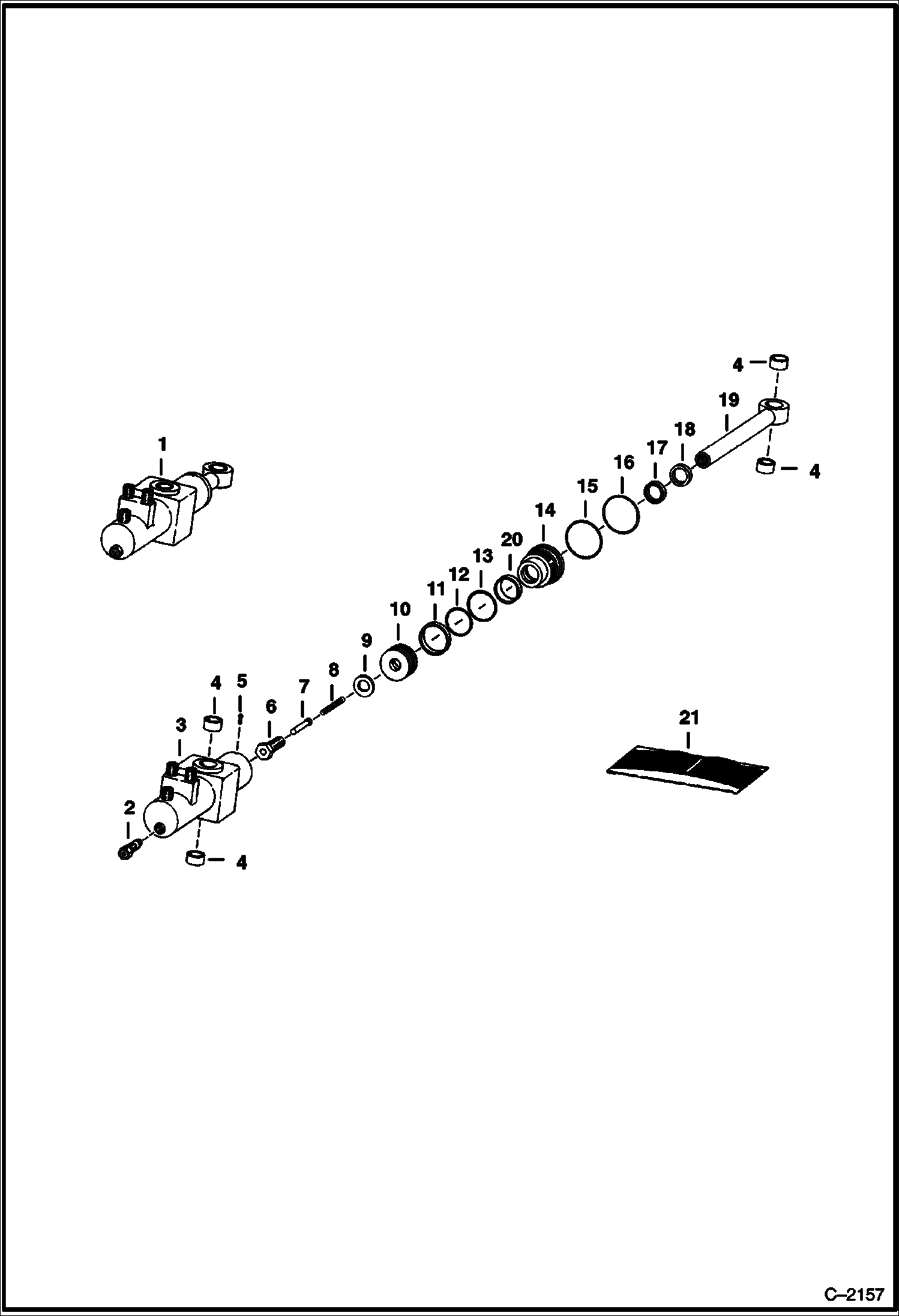

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (J.I.Case) (910) (825 Only) 910 BACKHOE

1

CYLINDER See Illustration BACKHOE/ C2656

2

6519846

RELIEF VALVE

3

CASE NLA

4

887035

BUSHING

5

65G804

SCREW

6

6519808

BOLT

7

PIN NLA - Was 6519805 - A

8

6519804

SPRING

9

6519807

WASHER

10

PISTON NLA - Was 6519802 - A

11

6519793

RING

12

25K40216

O RING 10

13

6510120

RING

14

6519801

HEAD

15

58K234

O RING 10 Was 54K40300 - B

16

6519806

WASHER back-up

17

887088

SEAL

18

6519783

WIPER rod

19

ROD NLA - Use 6519878 cyl.

20

887083

SEAL wiper

21

6661035

SEAL KIT Ref. 11-13, 15-18 & 20 - Was 6546794 - A
