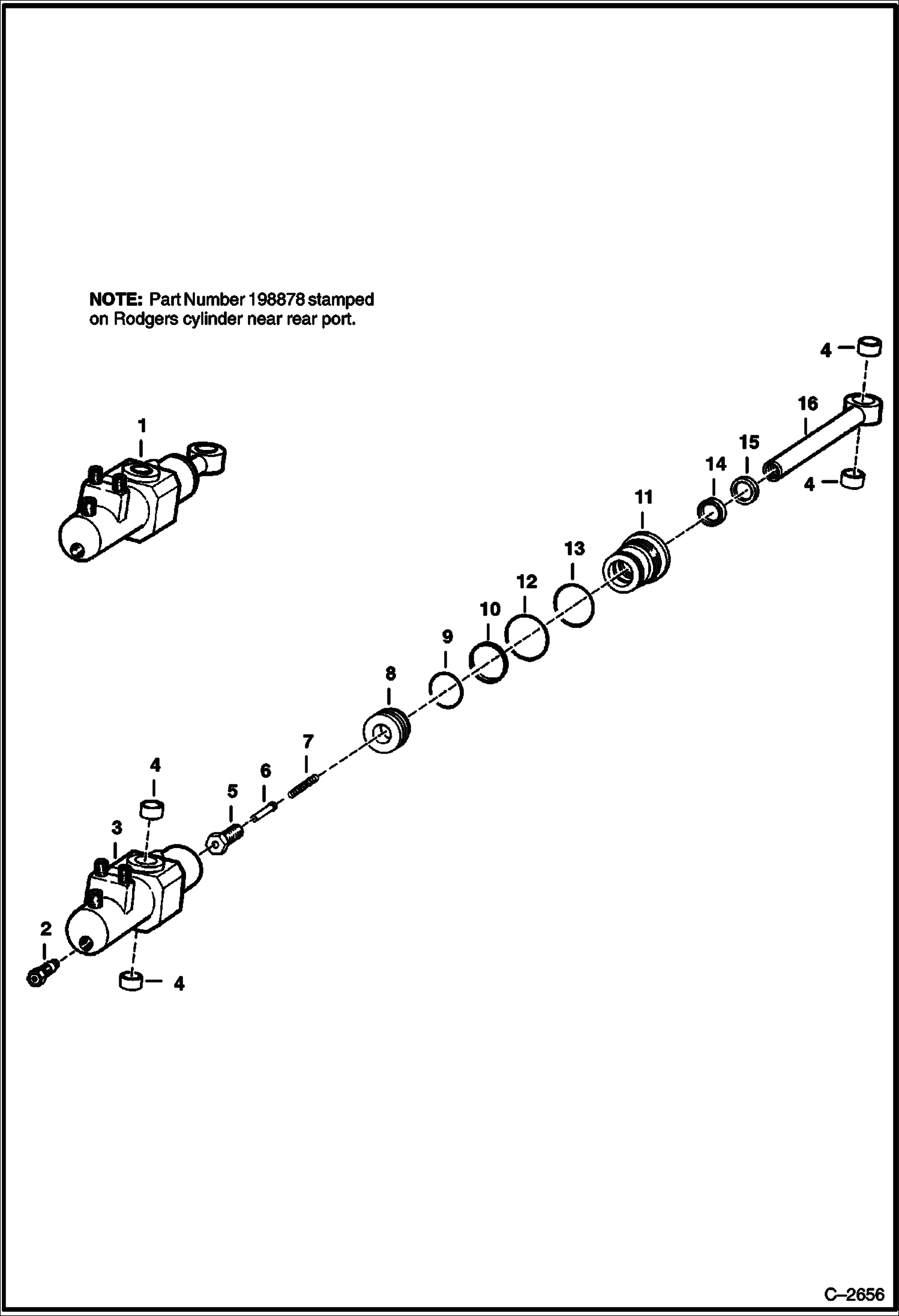

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (Rodgers) (910) (825 Only) 910 BACKHOE

1

CYLINDER NLA - swing - SEE NOTE - Was 6519878 - A

2

6519846

RELIEF VALVE

3

6598788

CASE

4

887035

BUSHING

5

BOLT NLA - Was 6598791 - A

6

PIN NLA - cushion - Was 6598790 - A

7

6598789

SPRING

8

PISTON NLA - Was 6598792 - A

9

947088

RING, BACK-UP

10

25K30218

O RING 10

11

6531649

HEAD Was 6530334 - A

12

58K232

O RING 10

13

73K232

RING, BACK-UP Was 80K000232B - A

14

6518201

SEAL

15

6690707

WIPER, ROD CYL Was 1657087 - A

16

ROD NLA - Was 6598787 - A
