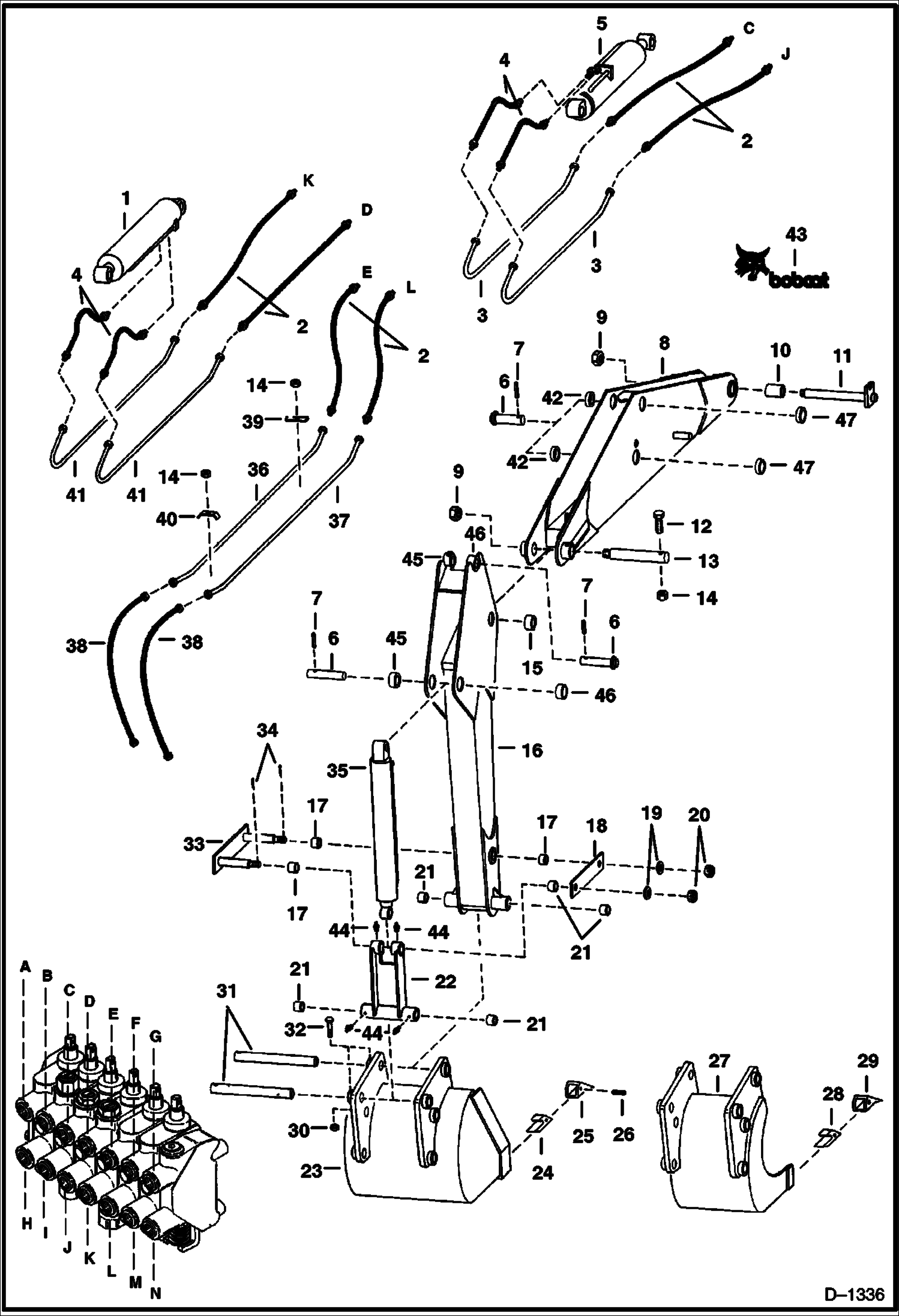

Запчасти Bobcat BACKHOE BACKHOE (Boom, Dipperstick & Bucket Hydraulics) (910) (825 Only) 910 BACKHOE

1

CYLINDER See Illustration BACKHOE/ B20507 See Illustration BACKHOE/ C2156 dipperstick

2

6544700

HOSE

3

6546051

TUBE

4

6546052

HOSE

5

CYLINDER See Illustration BACKHOE/ B20506 See Illustration BACKHOE/ C2155 boom

6

6544607

PIN

7

106023

PIN

8

6544849

BOOM

9

66D20

NUT

10

6508236

BUSHING

11

6544619

PIN

12

17C648

BOLT 5

13

6544605

PIN

14

81D6

NUT

15

6508234

BUSHING

16

6544865

DIPPERSTICK

17

6544613

BUSHING

18

6544881

LINK

19

25E31

WASHER

20

6D000016B

NUT

21

BUSHING NLA - Was 6508235 - A

22

6591430

LINK

23

BUCKET See Illustration BACKHOE/ B20509 ribbed

24

6518120

SHANK

25

6630424

TOOTH Was 1553699 - A

26

562660

PIN flex

27

BUCKET See Illustration BACKHOE/ B20509 bell hole

27

BUCKET See Illustration BACKHOE/ B20509 standard

28

6515119

SHANK

29

1550017

TOOTH, BUCKET 25

30

82D6

NUT

31

6515875

PIN

32

18C640

BOLT

33

6544614

LINK

34

1F632

PIN

35

CYLINDER See Illustration BACKHOE/ B20508 See Illustration BACKHOE/ C2154 bucket

36

6544848

TUBE

37

6544847

TUBE

38

6544694

HOSE

39

6544845

CLAMP

40

6502203

CLAMP

41

6591412

TUBE

42

6544863

COLLAR

43

6808545

DECAL bobcat - Was 6557412 - A

43

6808546

DECAL bobcat - Was 6557413 - A

44

36H35

FITTING

45

6544747

COLLAR

46

6544748

COLLAR

47

6544862

COLLAR
