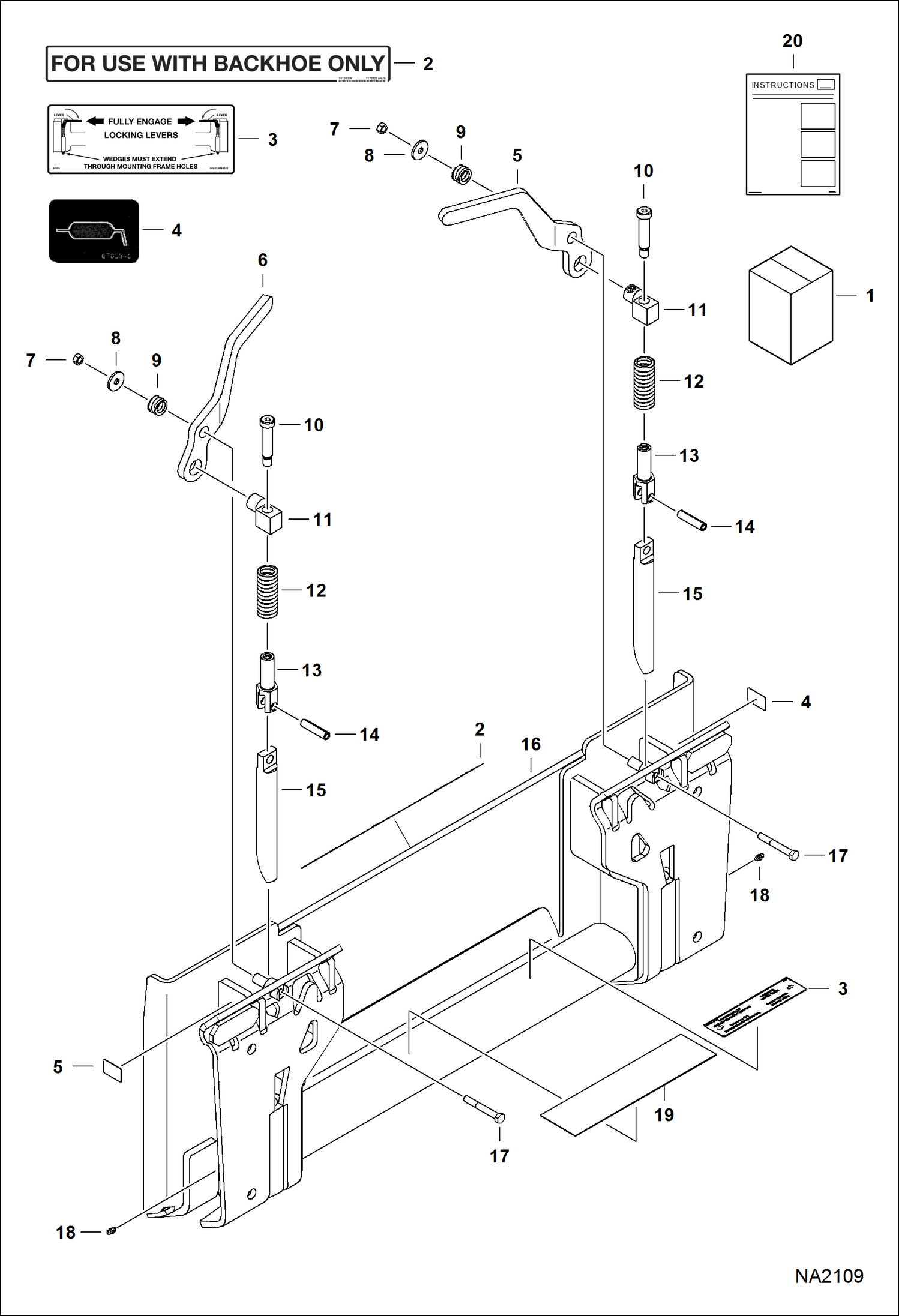

Запчасти Bobcat BACKHOE BACKHOE (Bob-Tach Adapter Kit) (8811 A558 & B393) 811/8811 BACKHOE

1

KIT, BOBTACH ADAPTER SALES #7168932 - Ref. 2-20

2

7172328

DECAL Backhoe use

3

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

4

6705340

DECAL, GREASE

5

7163435

LEVER, BOB-TACH LH

6

7163436

LEVER, BOB-TACH RH

7

85D6

NUT, 5

8

619021

WASHER, 5

9

6704453

SPRING

10

6728473

BOLT, SHOULDER pre-applied thread locker

11

6704240

PIVOT ASSY.

12

6578253

SPRING, COMPRESSION

13

6704248

PIVOT, WEDGE

14

14J5032

PIN, STRAIGHT

15

6737191

WEDGE

16

FRAME NSS - Order Ref. 1

17

17C644

BOLT

18

10H35

FITTING, GREASE 10

19

6555341

SAFETY TREAD

20

6987315

INSTRUCTIONS
