Запчасти Bobcat BACKHOE BACKHOE (Latches) (8811 A558 & B393) 811/8811 BACKHOE

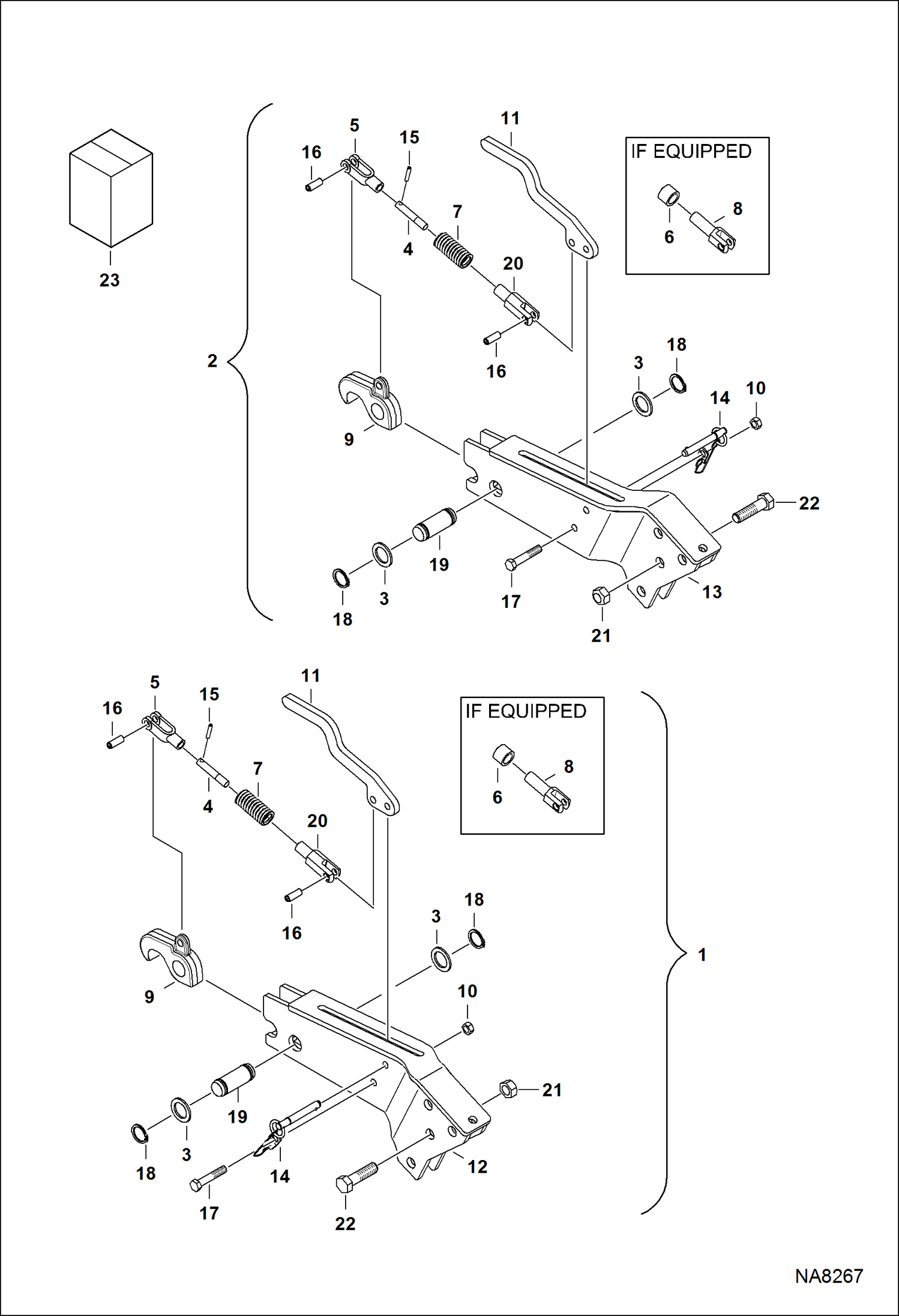

Схема запчастей Bobcat BACKHOE - BACKHOE (Latches) (8811 A558 & B393) 811/8811 BACKHOE

Артикул

Название

Примечание

Количество

1

7235870

LATCH, BACKHOE RH - Ref. 3-12 & 14-19

2

7235878

LATCH, BACKHOE LH - Ref. 3-11 & 13-19

3

6532519

WASHER

4

6533158

ROD

5

6533159

CLEVIS

6

6533160

BUSHING

7

6578253

SPRING, COMPRESSION

8

6704248

PIVOT, WEDGE

9

6816819

LATCH Was 7242496 - A

10

85D8

NUT, 5

11

7172209

HANDLE

12

RH LATCH NSS - Order Ref. 1 - Was 7235874 - A

13

LH LATCH NSS - Order Ref. 2 - Was 7235879 - A

14

7241036

PIN, LOCK

15

14J2520

PIN

16

14J5020

PIN,ROLL

17

17C844

BOLT

18

22J20

SNAP RING

19

6812834

PIN, PIVOT

Выбрано товаров: 19
