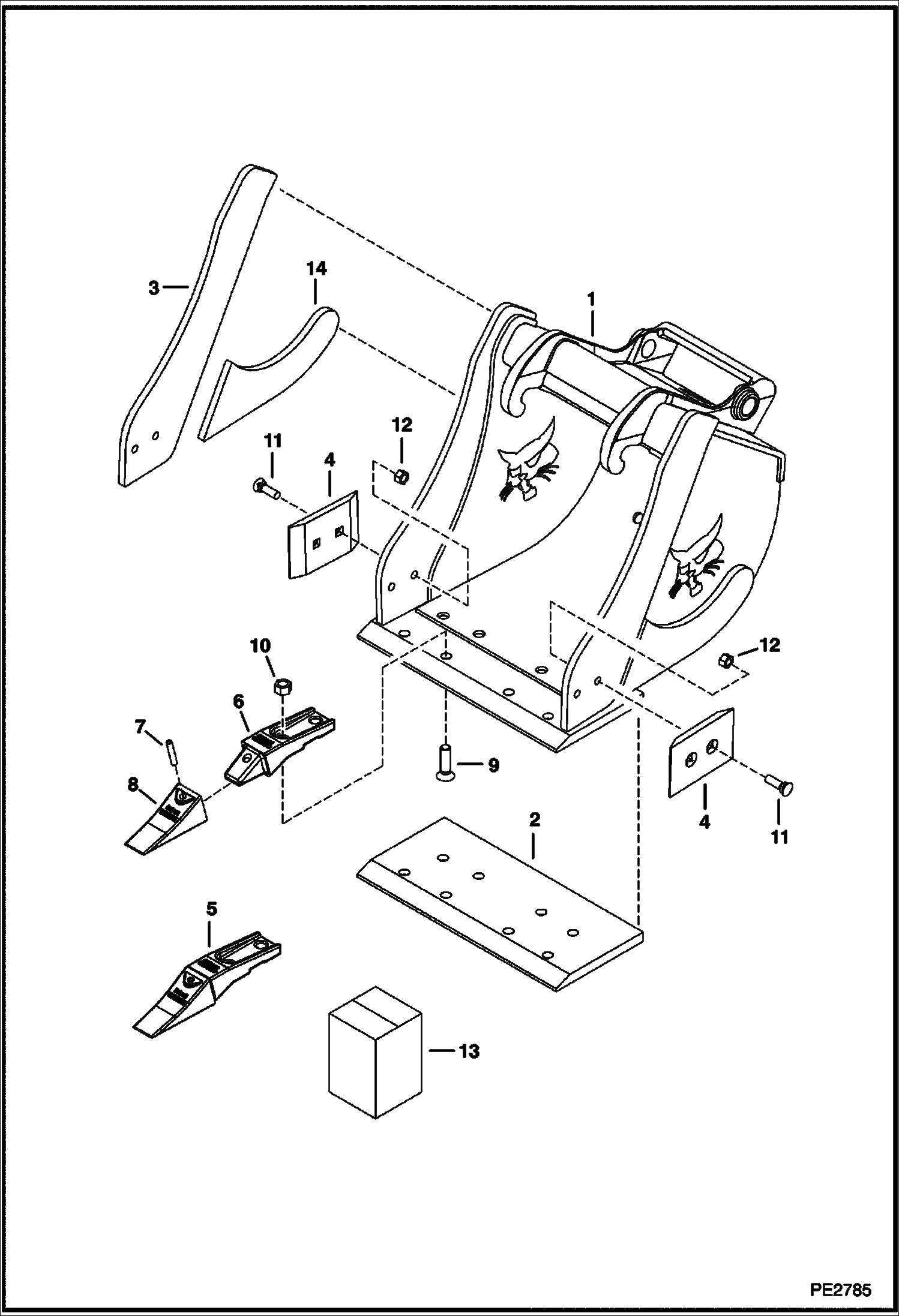

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (Heavy Duty 13 & 18) (811 6300) (8811 6301, A558 & B393) 811/8811 BACKHOE

1

BUCKET SALES - 13'' (330 mm) H.D. uses 3 teeth - SALES #7104343

1

BUCKET SALES - 18'' (457 mm) H.D. uses 4 teeth - SALES #7104336

2

6805937

EDGE, CUTTING WELD-ON 13''

2

6807357

EDGE, CUTTING WELD-ON 18''

3

6805429

EDGE, CUTTING WELD-ON SIDE

4

6805464

EDGE, CUTTING BOLT-ON 4'' edge

5

TOOTH ASSY NLA - Order Ref. 13

6

SHANK NLA - Order Ref. 13

7

14J3732

PIN, STRAIGHT 5 See BTI376

7

6737326

PIN, FLEX BUCKET TOOTH See BTI376

8

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - Was 6728801 - A

9

6729510

BOLT (2) per tooth - Was 9G001036B - A

10

95D10

NUT (2) per tooth

11

39C828

BOLT

12

63D8

NUT

13

6737322

KIT, TOOTH BUCKET 8 8 tooth - W/Ref 5-10 - Was 6732465 - A

14

6813572

EDGE, CUTTING WELD-ON SIDE
