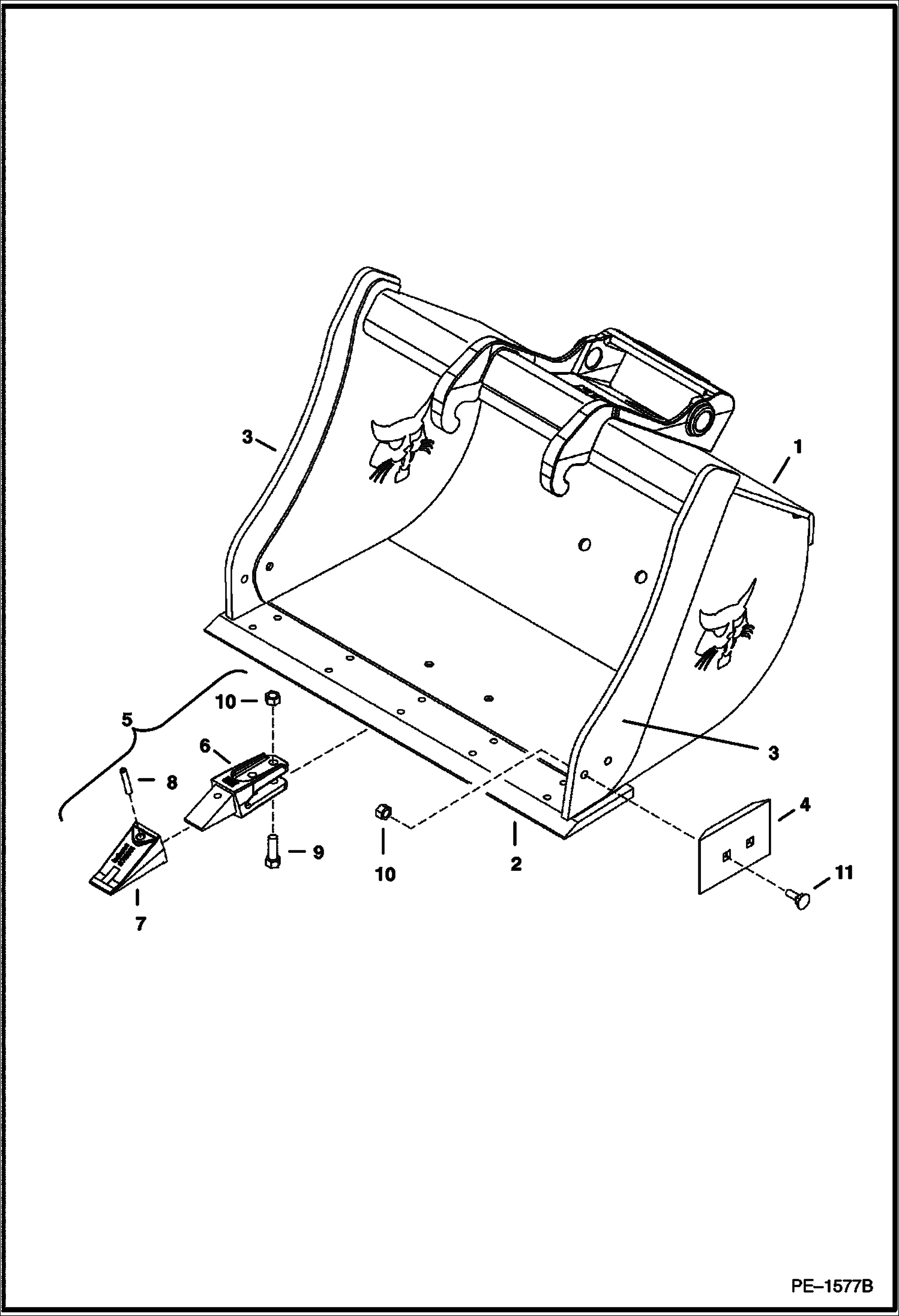

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (Cast - X-Change Mounted) (811) (8811) 811/8811 BACKHOE

1

BUCKET SALES - 13'' (330 mm) - uses 3 teeth - SALES #6735414

1

BUCKET SALES - 16'' (406 mm) - uses 4 teeth - SALES #6735418

1

BUCKET SALES - 18''(457 mm) - uses 4 teeth - SALES #6735422

1

BUCKET SALES - 20'' (508 mm) - uses 4 teeth - SALES #675426

1

BUCKET SALES - 24'' (609 mm) - uses 5 teeth - SALES #6735429

1

BUCKET SALES - 30'' (762 mm) - uses 5 teeth - SALES #6735433

1

BUCKET SALES - 36'' (914 mm) - uses 6 teeth - SALES #6735437

1

BUCKET SALES - 39'' (990 mm) - does not use teeth - SALES #6735443

2

6805433

EDGE, CUTTING WELD ON BEVELED 13.25'' 13'' (330 mm)

2

6805434

EDGE, CUTTING WELD ON BEVELED 16.25'' 16'' (406 mm)

2

6807535

EDGE, CUTTING BOLT ON BEVELED 18.25'' 18'' (457 mm)

2

6805435

EDGE, CUTTING WELD ON BEVELED 20.25'' 20'' (508 mm)

2

6805436

EDGE, CUTTING WELD-ON 24'' 24'' (609 mm)

2

6805437

EDGE, CUTTING WELD ON 30.25'' 30'' (762 mm)

2

6805438

EDGE, CUTTING WELD ON BEVELED 36.25'' 36'' (914 mm)

2

6805815

EDGE, CUTTING WELD ON BEVELED 39.25'' 39'' (990 mm)

3

6805429

EDGE, CUTTING WELD-ON SIDE for 13'' (330 mm), 16''( 406 mm), 18'' (457 mm), 20'' (508 mm), 24'' (609 mm), 30'' (762 mm) & 36'' (914 mm)

3

6805771

EDGE, CUTTING WELD-ON SIDE for 39'' bucket

4

6805464

EDGE, CUTTING BOLT-ON 4''

5

7107330

TOOTH ASSY W/Ref 6-10 - Was 6684448 - A

6

SHANK NLA - bolt-on - Order Ref. 5 - Was 6715836 - A

7

7107319

TOOTH, BUCKET 10 See BTI376 - 114,3 mm (4.5'') long - Was 6716001 - A

8

14J3732

PIN, STRAIGHT 5 See BTI376

8

6737326

PIN, FLEX BUCKET TOOTH See BTI376

9

47C832

BOLT (2) per tooth - Was 47C828 - B

10

63D8

NUT qty. 2 per tooth - Was 95D000008B - B

11

39C828

BOLT
