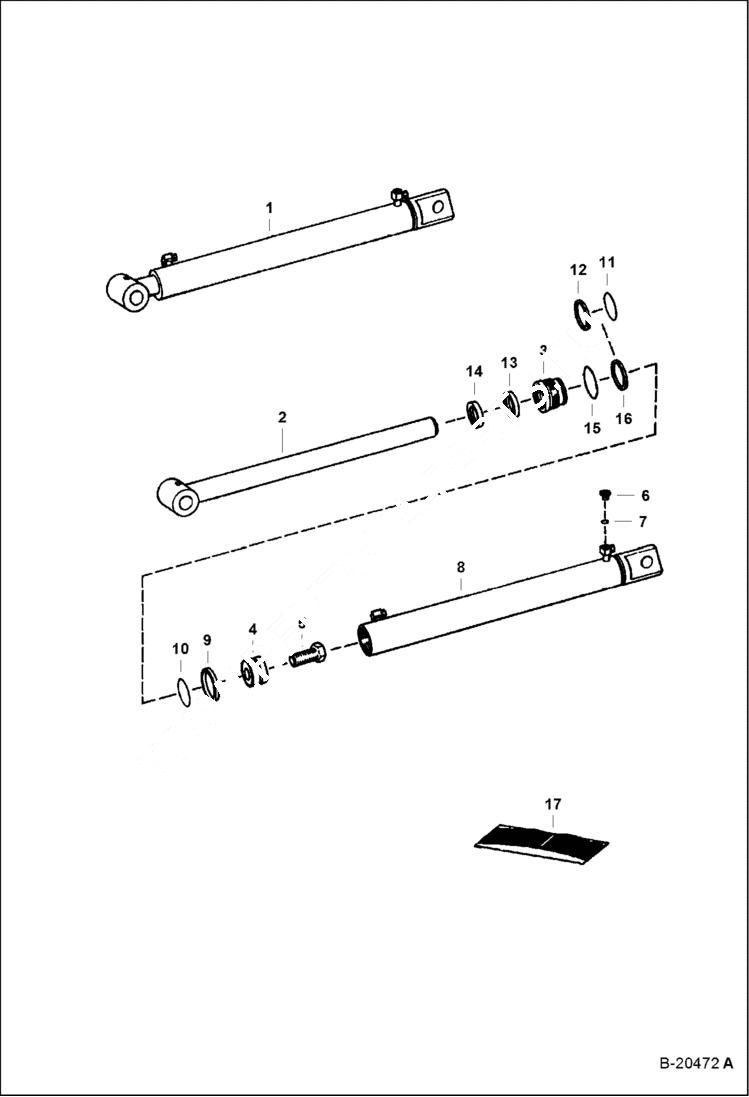

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (W/Internal Threaded Rod & Bolt) (811 6300) (8811 6301) 811/8811 BACKHOE

1

CYLINDER NLA - Ref. 2-15 - Order 7146695 - Was 6533365 - A

2

6807056

SHAFT Was 6532560 - A

3

6595005

HEAD Was 6533386 - A

4

6534307

PISTON

5

6586508

SCREW Was 6536612 - B

6

PLUG NLA - flat boss face - Was 47K-5 - A

6

PLUG NLA - tapered boss face - allen socket head - Was 90KV00005B - A

6

90K5

PLUG flat boss face - allen socket head

6

6816855

PLUG flat boss face - hex head

7

75K6

O-RING for flat boss face - Was 79K000006B - B

7

95K6

O'RING for tapered boss face

8

TUBE NLA - Was 6536613 - A

9

947088

RING, BACK-UP Was NSS - D

10

25K30218

O RING 10 Was 54K30218 - B

11

25K40224

O RING 10 Was 54K40224 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

6667328

SEAL Was 6538277 - A

14

6686998

WIPER, ROD CYL Was 6666545 - A

15

58K234

O RING 10 Was 54K40300 - B

16

7008355

SEAL, QUAD

17

7137940

SEAL KIT Ref. 9-10, 13-16 - Was 6804611 - A
