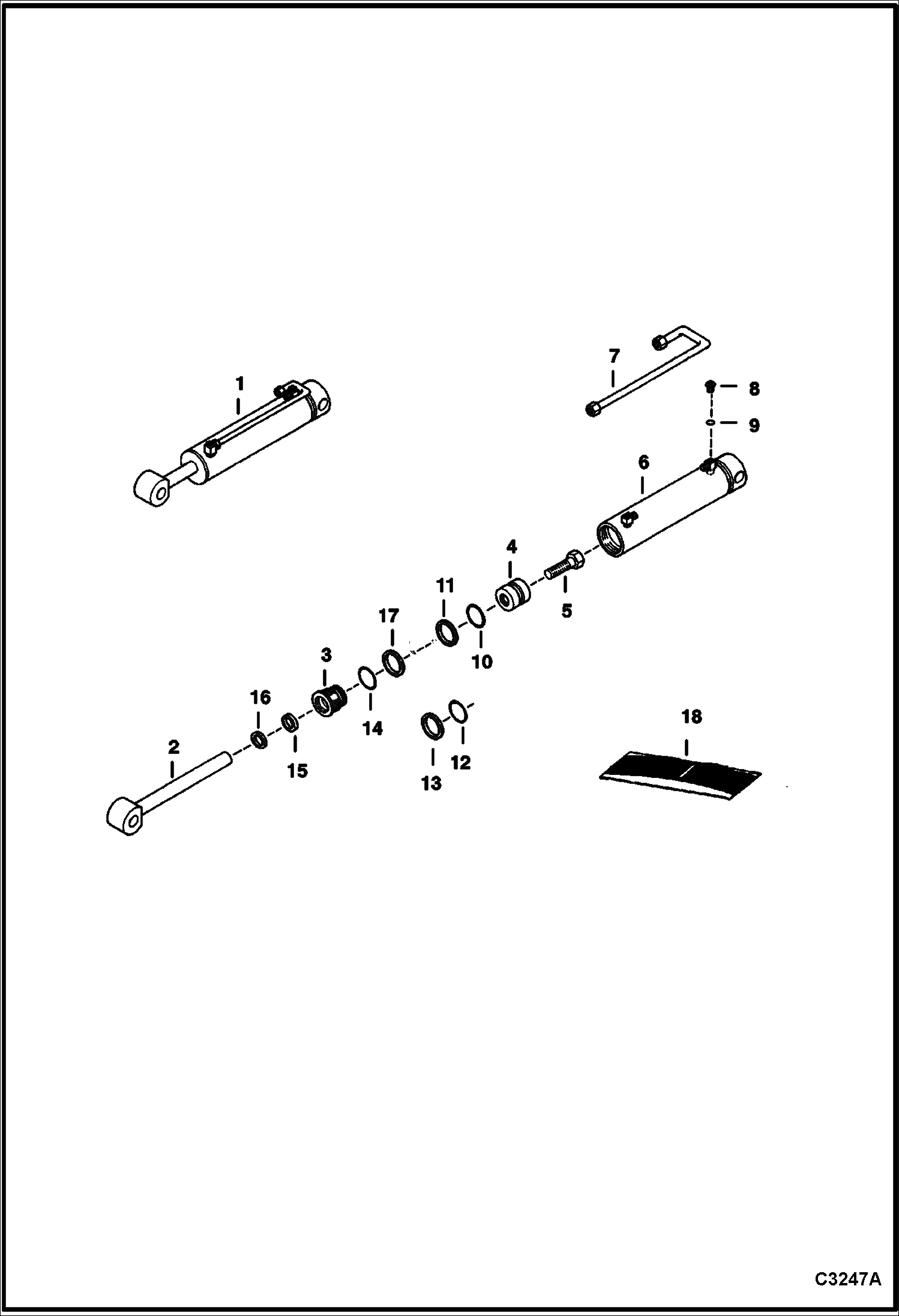

Запчасти Bobcat BACKHOE BACKHOE (Dipper Cylinder) (W/Internal Threaded Rod & Bolt) (811 6300) (8811 6301 & A558) 811/8811 BACKHOE

1

CYLINDER NLA - Ref. 2-16 - Order 7148530 cylinder, 7131047 tubeline & 7131049 hose - Was 6536336 - A

1

CYLINDER NLA - Ref. 2-16 - Order 7148530 cylinder, 7131047 tubeline & 7131049 hose - has 45 degree chamfer on base end - Was 6589752 - A

2

6536338

SHAFT 44,5 mm (1.75'') OD

3

6534985

HEAD

4

6536341

PISTON

5

6536391

SCREW

6

6589751

TUBE

7

6813249

TUBELINE Was 6533378 - A

8

PLUG NLA - flat boss face - Was 47K-5 - A

8

90KV5

PLUG tapered boss face

8

6816855

PLUG flat boss face - hex head

9

79K6

O RING 10 for flat boss face

9

95K6

O'RING for tapered boss face

10

25K30300

O RING 10 Was 54K30300 - A

11

1530265

PISTON SEAL Was NSS - D

12

O RING 10 NLA - Order Ref. 17 - Was 58K338 - B

13

RING NLA - back-up - Order Ref. 17 - Was 73K338 - B

14

82K238

O-RING Was 58K000238B - A

15

6667327

SEAL Was 6538140 - A

16

6686999

WIPER, ROD CYL Was 6666544 - A

17

7008353

SEAL, QUAD

18

7196896

KIT, SEAL Ref. 10, 11 & 14-17 - Was 7138009 - A
