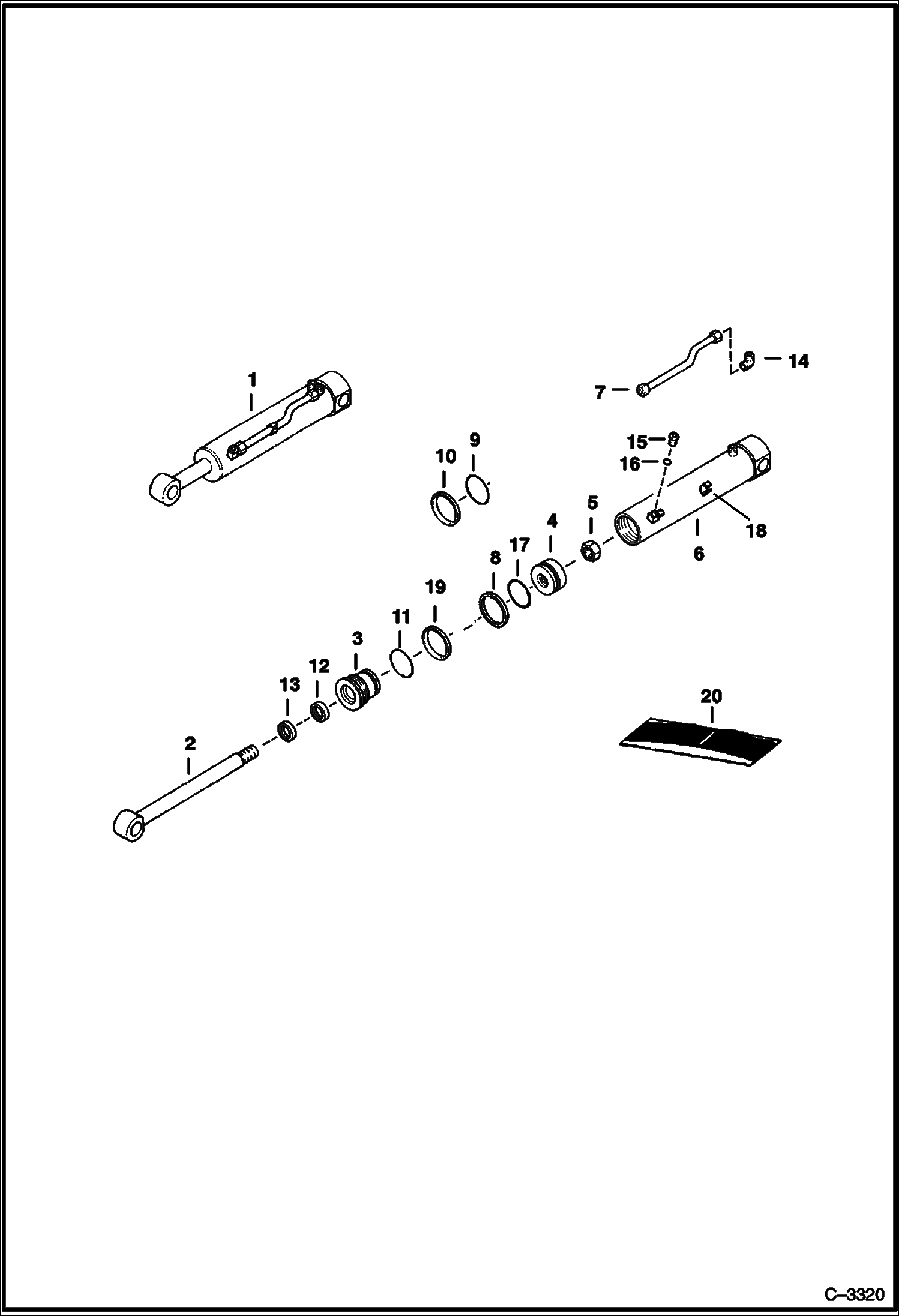

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (W/External Threaded Rod & Nut) (8811 6301, A558 & B393) 811/8811 BACKHOE

1

6586825

CYLINDER Ref. 2-17

2

6586826

ROD

3

6538367

HEAD, CYL TILT

4

6587731

PISTON

5

92D16

NUT

6

6586833

CASE

7

6587192

TUBE

8

947088

RING, BACK-UP Was NSS - D

9

25K40224

O RING 10 Was 54K040224B - B

10

73K232

RING, BACK-UP back-up - Was NSS - D

11

58K234

O RING 10 Was 54K40300 - B

12

6667326

SEAL Was 6538141 - A

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

77F5

FITTING

15

PLUG NLA - flat boss face - Was 47K-2 - A

15

90KV2

PLUG tapered boss face

16

79K3

O RING 10 for flat boss face

16

95K3

O'RING for tapered boss face

17

25K30218

O RING 10 Was 54K030218B - B

18

6690910

CLAMP

19

7008355

SEAL, QUAD

20

7135536

SEAL KIT Ref. 5, 8-13 & 17 - Was 6803321 - A
