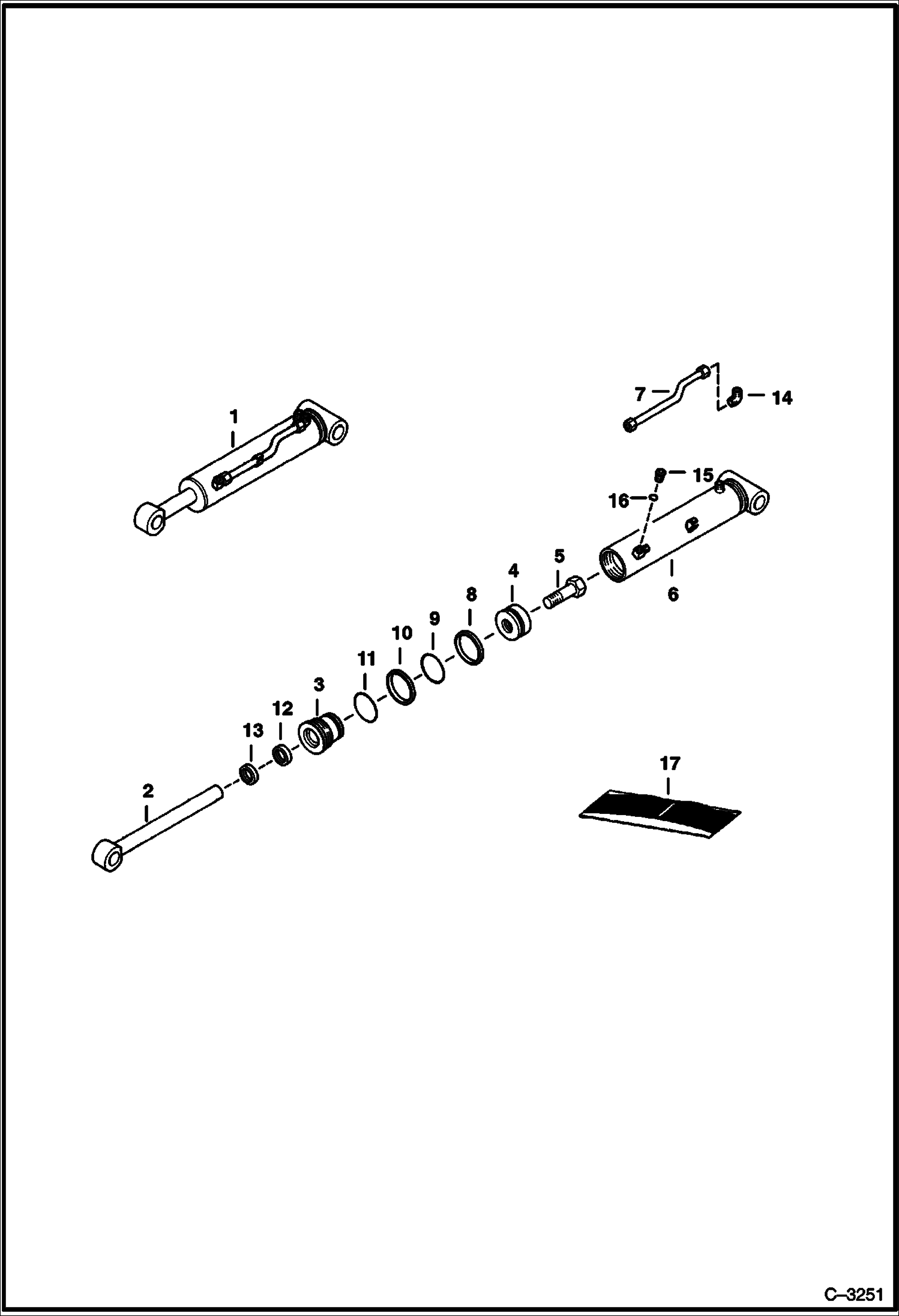

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (W/Internal Threaded Rod & Bolt) (811 6300) 811/8811 BACKHOE

1

CYLINDER See Illustration BACKHOE/ C3320 - NLA - Ref. 2-16 - Was 6534929 - A

2

ROD NLA - Order 6586734 & 6586508 - Was 6534515 - A

2

6586734

ROD

3

6531649

HEAD

4

6534552

PISTON

5

6536612

BOLT 57,15 mm (2.25'') long

5

6586508

SCREW 63,5 mm (2.50'') long

6

6534622

CASE

7

6534930

TUBE

8

6654361

SEAL Was NSS - D

9

25K40224

O RING 10 Was 54K40224 - B

10

73K232

RING, BACK-UP back-up - Was 80K232 - A

11

58K234

O RING 10 Was 54K40300 - B

12

6667326

SEAL Was 6538141 - A

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

77F5

FITTING

15

47K2

PLUG

16

79K3

O RING 10

17

6661048

SEAL KIT Ref. 8-13 - Was 6537166 - A
