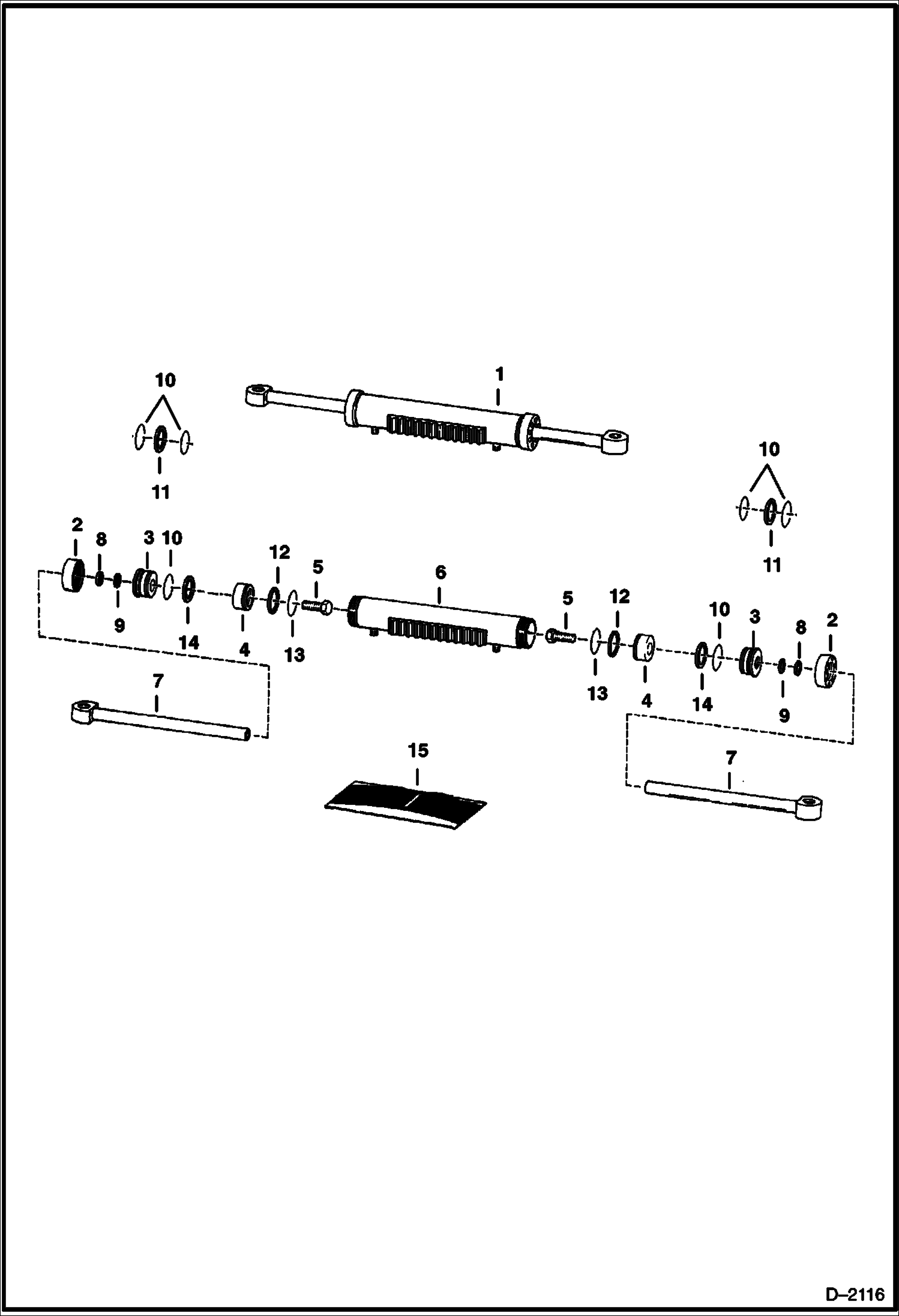

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (811 6300) (8811 6301, A558 & B393) 811/8811 BACKHOE

1

6533368

CYLINDER Ref. 2-13

2

6533375

CAP

3

6533374

HEAD

4

6533373

PISTON

5

18C1640

BOLT

6

6534619

CASE

7

6533371

ROD

8

6690707

WIPER, ROD CYL Was 6665086 - A

9

6667326

SEAL Was 6538141 - A

10

58K340

O RING 10 Was 55K340 - B

11

73K340

BKUP RING back-up - Was NSS - D

12

6593381

SEAL Was NSS - D

13

25K30308

O RING 10 Was 54K30308 - B

14

7008352

SEAL, QUAD

15

7196483

KIT, SEAL Ref. 8-10, 12 & 13 - Was 7135556 - A
