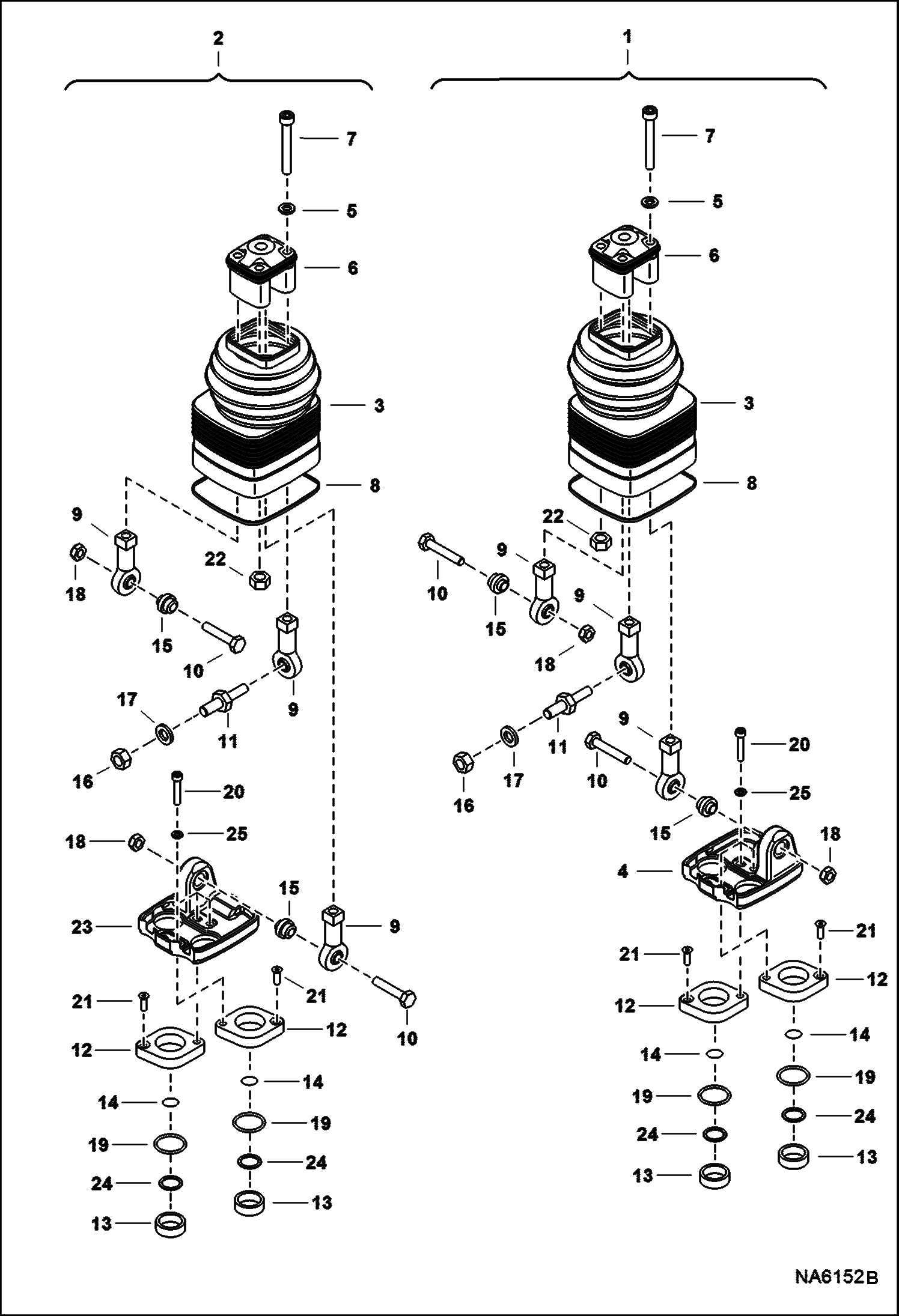

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (Joysticks) (8811 A558 & B393) 811/8811 BACKHOE

1

7022328

JOYSTICK RH - Ref. 3-22, 24 & 25

2

7022329

JOYSTICK LH - Ref. 3 & 5-25

3

7022550

BOOT, RUBBER

4

7022551

LINKAGE RH

5

7022552

WASHER

6

7022553

HOLDER

7

7022554

BOLT

8

7022555

WRAPAROUND

9

7022556

BALL JOINT

10

7022557

BOLT

11

7022558

BOLT

12

7022559

SPACER

13

7022560

SPACER

14

7022561

O-RING

15

7022562

SPACER

16

7022563

NUT

17

7022564

WASHER

18

7022565

NUT

19

7022566

O-RING

20

7022567

BOLT

21

7022568

BOLT

22

7022569

NUT

23

7022570

LINKAGE LH

24

7022537

O-RING

25

7022534

WASHER
