Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (Control) (8811 A558 & B393) 811/8811 BACKHOE

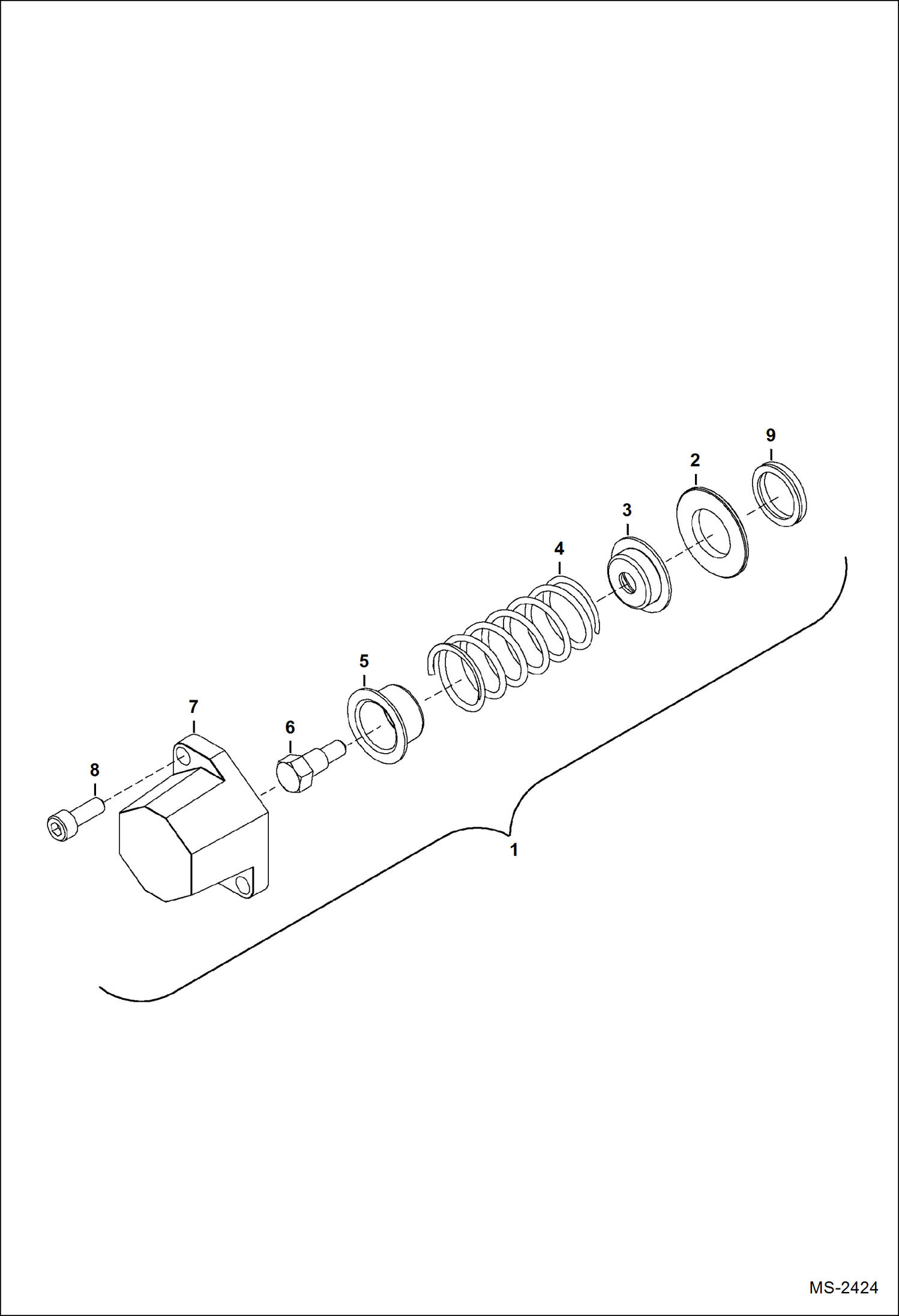

Схема запчастей Bobcat BACKHOE - BACKHOE (Control Valve) (Control) (8811 A558 & B393) 811/8811 BACKHOE

Артикул

Название

Примечание

Количество

1

6693267

CONTROL W/Ref. 2-9

2

WASHER NSS - Order Ref. 1 - Was 6693312 - A

3

HOLDER NSS - Order Ref. 1 - Was 6693313 - A

4

SPRING NSS - Order Ref. 1 - Was 6693314 - A

5

HOLDER NSS - Order Ref. 1 - Was 6693315 - A

6

6693316

BOLT

7

6693317

CAP

8

6693318

BOLT

9

6693283

SEAL KIT spool

Выбрано товаров: 9
