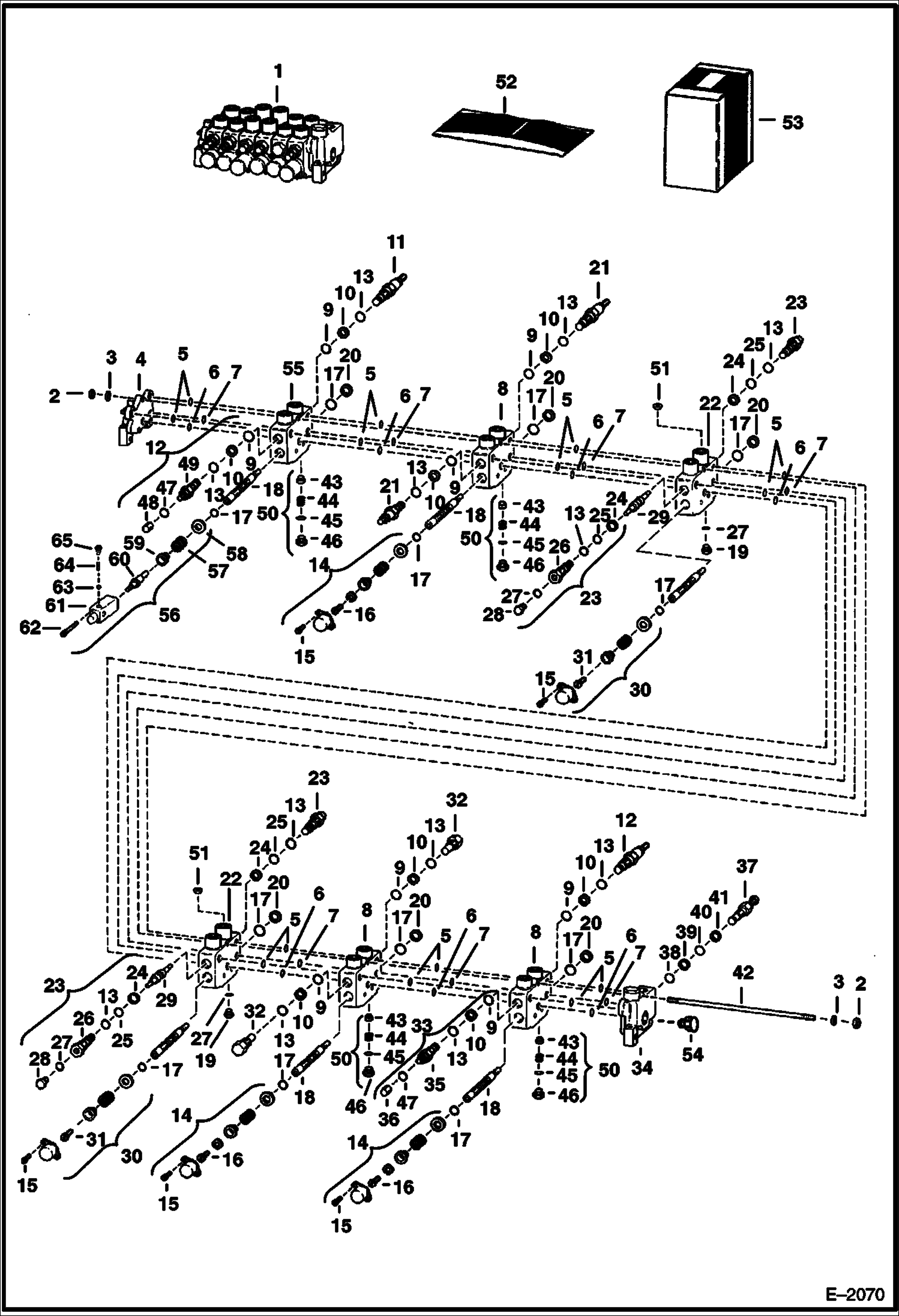

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (811 6300) (8811 6301) 811/8811 BACKHOE

1

VALVE NLA - Dukes/Danfoss 1325-6L-AU - Order 6674308 & 6805604 decal - Was 6651515 - A

1

6674308

VALVE Danfoss 156B2349

2

6658322

NUT

3

6658320

WASHER

4

6660048

VALVE COVER

5

25K30100

O RING 10 Was NSS - D

6

25K30024

O RING 10 Was NSS - D

7

25K30016

O RING 10 Was NSS - D

8

6660046

SECTION dipper, bucket & swing cylinder

9

O-RING NSS

10

WASHER NSS - back-up

11

6660052

RELIEF VALVE W/Ref. 9, 10 & 13

12

6660050

RELIEF VALVE W/Ref. 9, 10, 13 & 47-49

13

O-RING NSS

14

6660062

BONNET KIT

15

6660060

SCREW

16

6660221

SCREW

17

6656431

O-RING Was NSS - D

18

SPOOL NSS

19

6656429

PLUG W/Ref. 27

20

6658398

SEAL back-up - Was NSS - D

21

6660053

RELIEF VALVE W/Ref. 9, 10 & 13

22

6660047

SECTION

23

6660820

CHECK VALVE W/Ref. 13 & 24-28 - Was 6660058 - A

24

WASHER NSS - back-up

25

O-RING NSS

26

HOUSING NSS

27

O-RING NSS

28

PLUG NSS

29

PISTON NSS - Was 6660059 - A

30

6660057

BONNET

31

6660214

SCREW

32

6660055

PLUG W/Ref. 9, 10 & 13

33

6660051

RELIEF VALVE W/Ref. 9, 10, 13, 35, 36 & 47

34

6660054

VALVE COVER

35

CARTRIDGE NSS

36

CAP NSS

37

6658416

RELIEF VALVE Ref. 38-41

38

O-RING NSS

39

WASHER NSS - back-up

40

O-RING NSS

41

WASHER NSS - back-up

42

6660049

ROD package of 3

43

POPPET NLA - Order Ref. 50 - Was 6660223 - A

44

6656430

SPRING

45

O-RING NSS

46

PLUG NSS

47

O-RING NSS

48

CAP NSS - relief

49

CARTRIDGE NSS

50

6660061

KIT Ref. 43-46

51

6660821

ORIFICE

52

6660056

SEAL KIT Ref. 5-7

53

6660222

SEAL KIT Ref. 5-7, 9, 10, 13, 17, 20, 24, 25, 27, 38-41 & 47

54

6656422

PLUG

55

6675084

SECTION boom - with float - Also Order 6805604 decal

56

6660062

BONNET KIT centering spring W/O float - Use W/Danfoss #1325-6L-AU valve

56

6675083

KIT centering spring W/float - Use W/Danfoss #156B2349 valve - Ref. 57-65

57

6675363

SPRING centering

58

6675965

WASHER

59

6675966

SPACER

60

6675970

SPOOL

61

BONNET NSS - Order Ref. 56 (6675083 kit)

62

6675969

BOLT

63

6513443

BALL Was 6675971 - A

64

6513445

SPRING Was 6675967 - A

65

6675968

PLUG
