Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry) (W/8 Sections) (8811 A558) 811/8811 BACKHOE

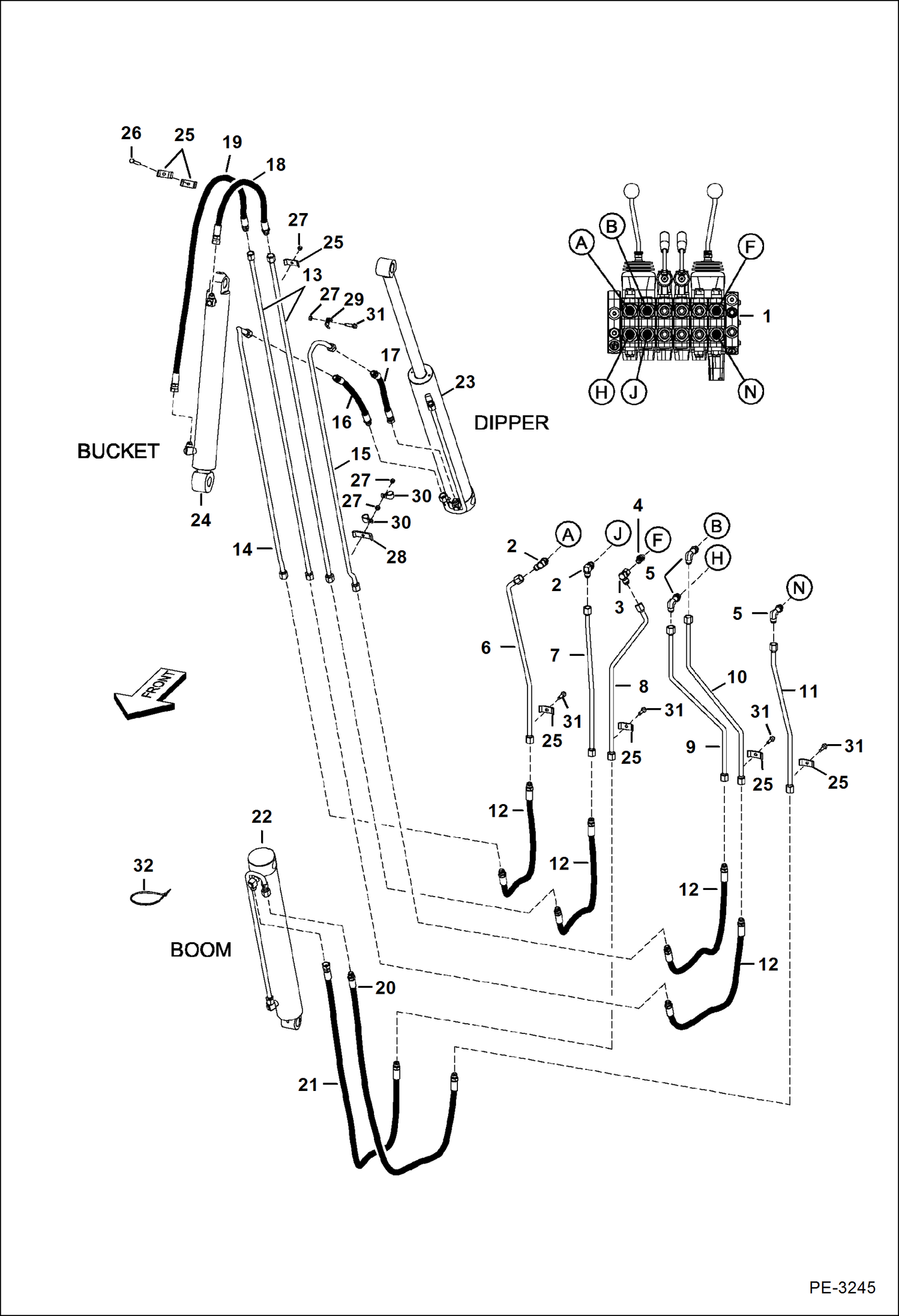

Схема запчастей Bobcat BACKHOE - BACKHOE (Boom Hydraulic Circuitry) (W/8 Sections) (8811 A558) 811/8811 BACKHOE

Артикул

Название

Примечание

Количество

1

VALVE ASSY See Illustration BACKHOE/ MS2422

2

17KB1010

FITTING, HYD ELBOW

3

11K7

ADAPTER

4

15KB1010

FITTING, HYD CONNECTOR

5

6519195

ELBOW

6

7129635

TUBELINE

7

7129565

TUBELINE

8

7130205

TUBELINE

9

7129637

TUBELINE

10

7129638

TUBELINE

11

7129627

TUBELINE

12

6539418

HOSE

13

6533294

TUBE

14

6533292

TUBE

15

6533293

TUBE

16

7131049

HOSE

17

6704336

HOSE

18

6587978

HOSE Was 6533210 - A

19

6534685

HOSE

20

7131048

HOSE

21

6534681

HOSE

22

CYLINDER See Illustration BACKHOE/ PE2514 - boom

23

CYLINDER See Illustration BACKHOE/ PE2514A - dipper

24

CYLINDER See Illustration BACKHOE/ NA2865A - bucket

25

6502426

CLAMP

26

17C632

BOLT 5

27

85D6

NUT, 5

28

6537761

CLAMP

29

6562266

CLAMP

30

30H46

CLIP

31

84G3728

BOLT

32

6610510

TIE

Выбрано товаров: 32
