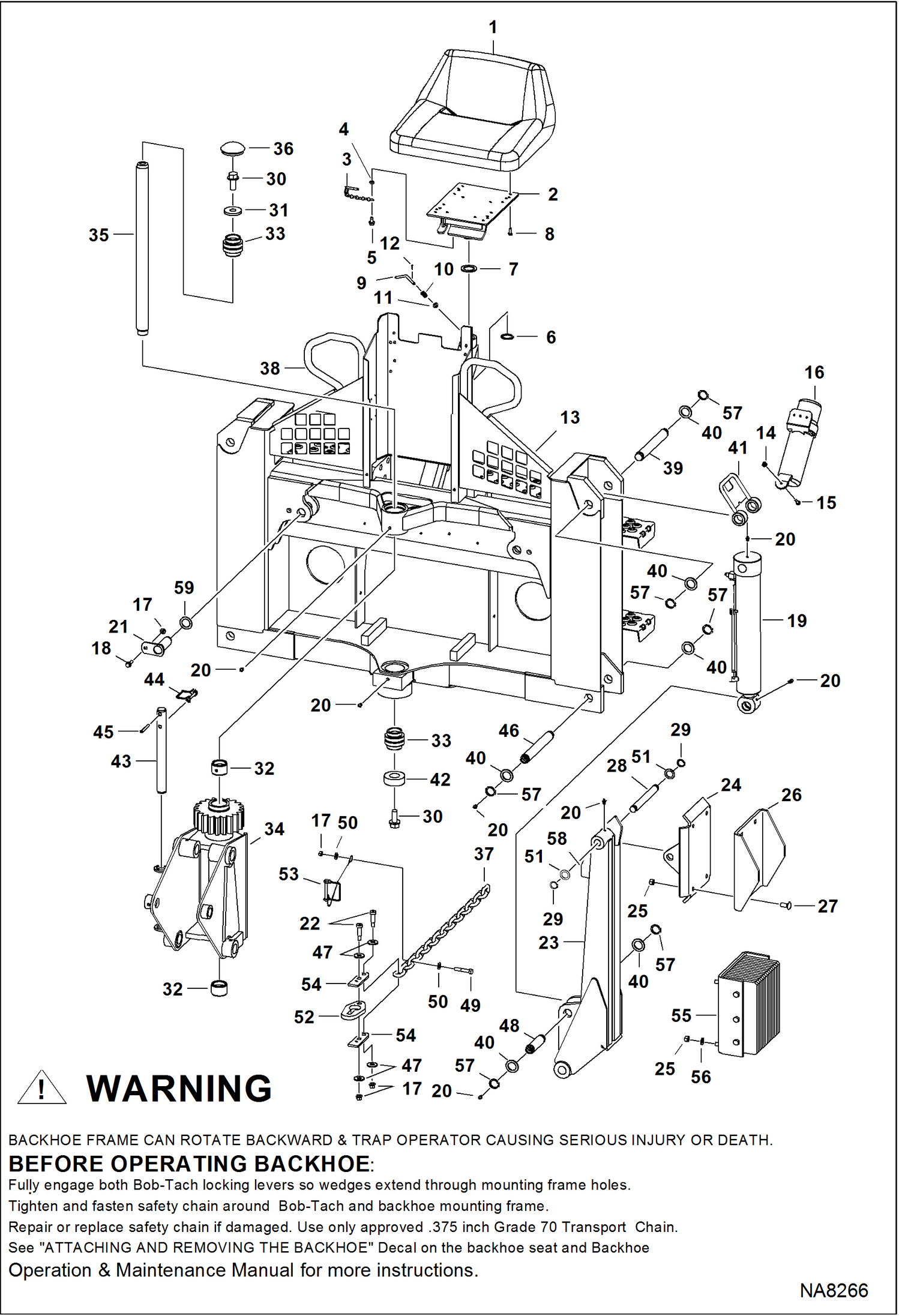

Запчасти Bobcat BACKHOE BACKHOE (Main Frame) (8811 B393) 811/8811 BACKHOE

1

6643253

SEAT, OPERATOR VINYL See Illustration BACKHOE/ NA8268 Also order 7172327 mounting decal

2

6587384

HINGE, MOUNT SWIVEL

3

6511880

PIN

4

7D6

NUT

5

84G3712

BOLT 5

6

22J24

RING SNAP

7

6558680

WASHER

8

17C512

BOLT 5

9

6592836

PIN

10

6610082

SPRING

11

25E15

WASHER

12

1F308

PIN, COTTER

13

7130776

MAIN FRAME

14

83D5

NUT 5

15

17C514

BOLT

16

7108147

CONTAINER, MANUAL W/ 6686517 tube

17

89D6

NUT

18

84G3728

BOLT

19

6586825

CYLINDER See Illustration BACKHOE/ C3320 stabilizer

20

10H25

FITTING, GREASE 5

21

6532869

PIN

22

38C820

SCREW

23

6586820

STABILIZER W/Ref. 58

24

6534650

PAD

25

85D8

NUT, 5

26

6560890

CLEAT

27

37C820

BOLT

28

6532841

PIN

29

22J16

SNAP RING

30

49C1228

BOLT

31

7112682

WASHER

32

6656253

RACE

33

6656252

BEARING

34

6806093

FRAME, SWING

35

6533318

SHAFT

36

6656492

CAP

37

6714935

SAFETY CHAIN 1397 mm (55'' long) chain only - Use only approved .375 inch grade 70 transport chain

38

6805233

TUBE handrail

39

6536985

PIN

40

6532519

WASHER

41

6586789

LOCK

42

6532631

WASHER

43

6593895

PIN boom lock

44

6510020

LOCK PIN

45

14J3740

PIN

46

6587521

PIN

47

27E8

WASHER 10

48

6534954

PIN

49

17C636

BOLT

50

27E6

WASHER 5

51

6573567

WASHER

52

6714868

BRACKET

53

6661838

HITCH PIN

54

6714869

LATCH

55

6632445

PAD street

56

25E21

WASHER 5

57

22J20

SNAP RING

58

6586792

HOOK

59

6528927

WASHER
