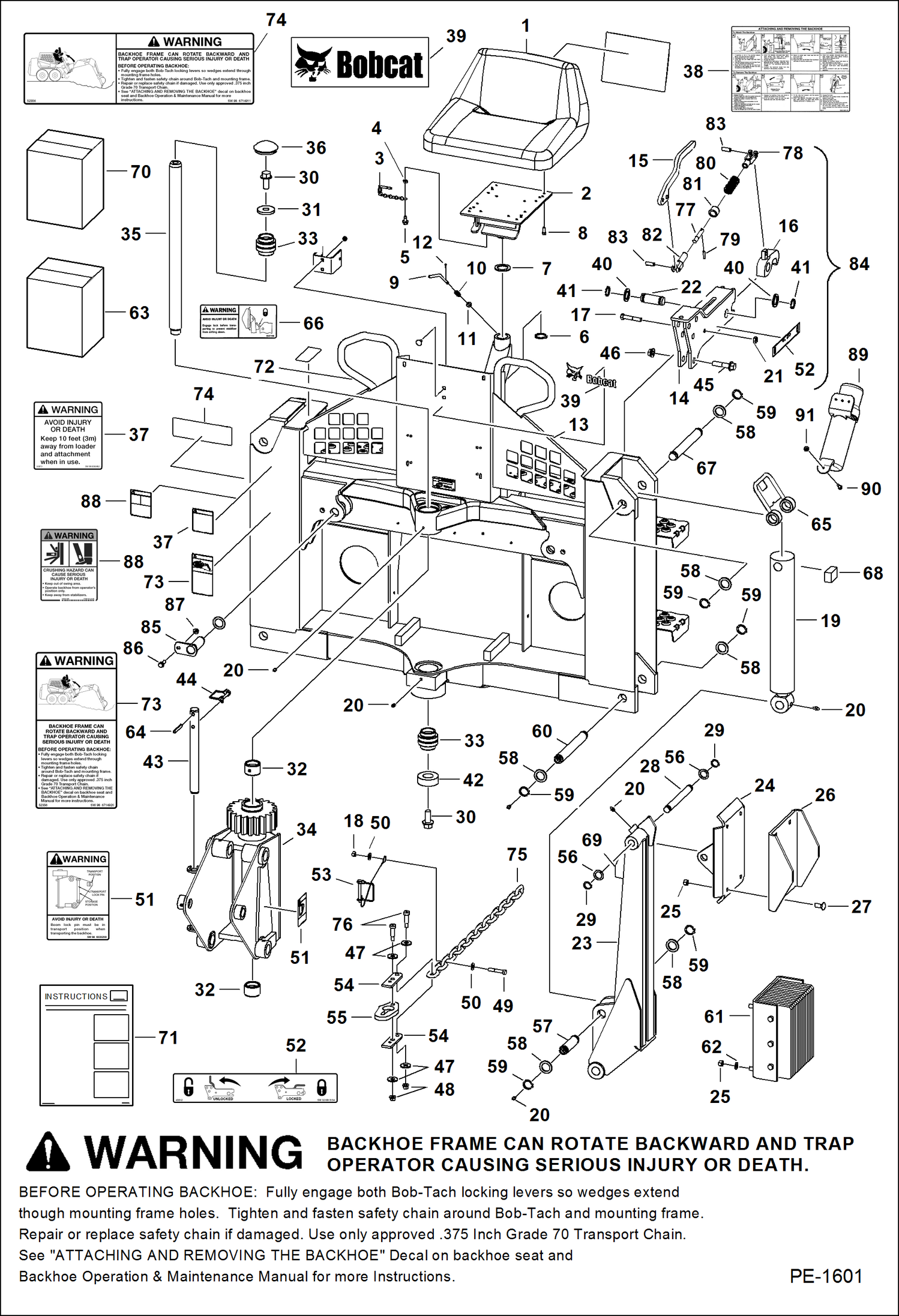

Запчасти Bobcat BACKHOE BACKHOE (Main Frame) (8811 6301 & A558) 811/8811 BACKHOE

1

6643253

SEAT, OPERATOR VINYL Also Order Ref. 38 (6815156 decal)

2

6587384

HINGE, MOUNT SWIVEL Was 6534341 - A

3

6511880

PIN

4

7D6

NUT

5

84G3712

BOLT 5

6

22J24

RING SNAP Was 6538285 - B

7

6558680

WASHER

8

17C512

BOLT 5

9

6592836

PIN

10

6610082

SPRING

11

25E15

WASHER

12

1F308

PIN, COTTER

13

6812606

FRAME, BACKHOE 8811

13

7130776

MAIN FRAME

14

6815171

LATCH straight - Was 6814206 - A

14

7200540

LATCH RH - offset - Was 7153630 - A

14

7200541

LATCH LH - offset - Was 7155538 - A

15

7172209

HANDLE Was 6815172 - A

16

6816819

LATCH Was 6812622 - A

17

17C844

BOLT Was 31C000644B - B

18

89D6

NUT Was 85D6 - B

19

CYLINDER See Illustration BACKHOE/ C3320 See Illustration BACKHOE/ C3251 stabilizer

20

10H25

FITTING, GREASE 5

21

85D8

NUT, 5 Was 57D000006B - B

22

6812834

PIN, PIVOT

23

6586820

STABILIZER

24

6534650

PAD

25

85D8

NUT, 5 Was 61D8 - B

26

6560890

CLEAT

27

37C820

BOLT

28

6532841

PIN

29

22J16

SNAP RING Was 1320431B - B

30

49C1228

BOLT Was 31C1228 - B

31

7112682

WASHER Was 6552871 - B

32

6656253

RACE

33

6656252

BEARING

34

6806093

FRAME, SWING

35

6533318

SHAFT

36

6656492

CAP

37

6583862

DECAL, WARNING warning

38

7172327

DECAL, MOUNTING mounting instructions - Was 6815156 - A

39

7109473

DECAL, LOGO BOBCAT AND HEAD Was 6727324 - B

40

6532519

WASHER

41

22J20

SNAP RING Was 6538287 - B

42

6532631

WASHER

43

6593895

PIN boom lock

44

6510020

LOCK PIN

45

17C1244

BOLT

46

85D12

NUT, 5

47

27E8

WASHER 10

48

89D6

NUT Was 53D6 - B

49

17C636

BOLT

50

27E6

WASHER 5

51

6535259

DECAL, WARNING

52

6815154

DECAL L.H. - Was 6812676 - A

52

6815155

DECAL R.H. - Was 6812677 - A

53

6661838

HITCH PIN

54

6714869

LATCH

55

6714868

BRACKET

56

6573567

WASHER

57

6587520

PIN W/grease zerk hole

57

6534954

PIN W/O grease zerk hole

58

6532519

WASHER

59

6650680

SNAP RING

60

6587521

PIN

61

6632445

PAD street

62

25E21

WASHER 5

63

6813057AR

KIT, DECAL TRANSLATION Spanish (Argentina)

63

6813057BR

KIT, DECAL TRANSLATION Portugese (Brazil)

63

KIT, TRANSLATION NLA - Spanish (Argentina) - Order 6901767 operator manual & 6813057BR decal kit - Was 6813056AR - A

63

KIT, TRANSLATION NLA - Portugese (Brazil) - Order 6901767 operator manual & 6813057BR decal kit - Was 6813056BR - A

64

14J3740

PIN

65

6586789

LOCK

66

6587106

DECAL, WARNING

67

6536985

PIN

68

6586499

STOP

69

6586792

HOOK

70

6722159

KIT stab. hook - Ref 65-69 & 71

71

6722160

INSTRUCTIONS for Ref. 70

72

6805233

TUBE handrail

73

6714920

DECAL, WARNING

74

6714911

DECAL, WARNING

75

6714935

SAFETY CHAIN 1397 mm (55'' long - chain only - Use only approved .375 inch grade 70 transport chain

76

38C820

SCREW

77

6533158

ROD

78

6533159

CLEVIS

79

14J2520

PIN

80

6578253

SPRING, COMPRESSION

81

6533160

BUSHING

82

6704248

PIVOT, WEDGE

83

14J5020

PIN,ROLL

84

6815177

LATCH ASMBLY W/Ref. 14-17, 21, 22, 40, 41, 77-83 - straight

84

7200538

LATCH, BACKHOE RH - W/Ref. 14-17, 21, 22, 40, 41, 77-83 - offset - Was 7153629 - A

84

7200539

LATCH, BACKHOE LH - W/Ref. 14-17, 21, 22, 40, 41, 77-83 - offset - Was 7155537 - A

85

6532869

PIN

86

84G3728

BOLT Was 84G3720 - B

87

89D6

NUT Was 55D6 - B

88

7166144

DECAL, WARNING

89

7108147

CONTAINER, MANUAL W/ 6686517 tube

90

17C514

BOLT

91

83D5

NUT 5
