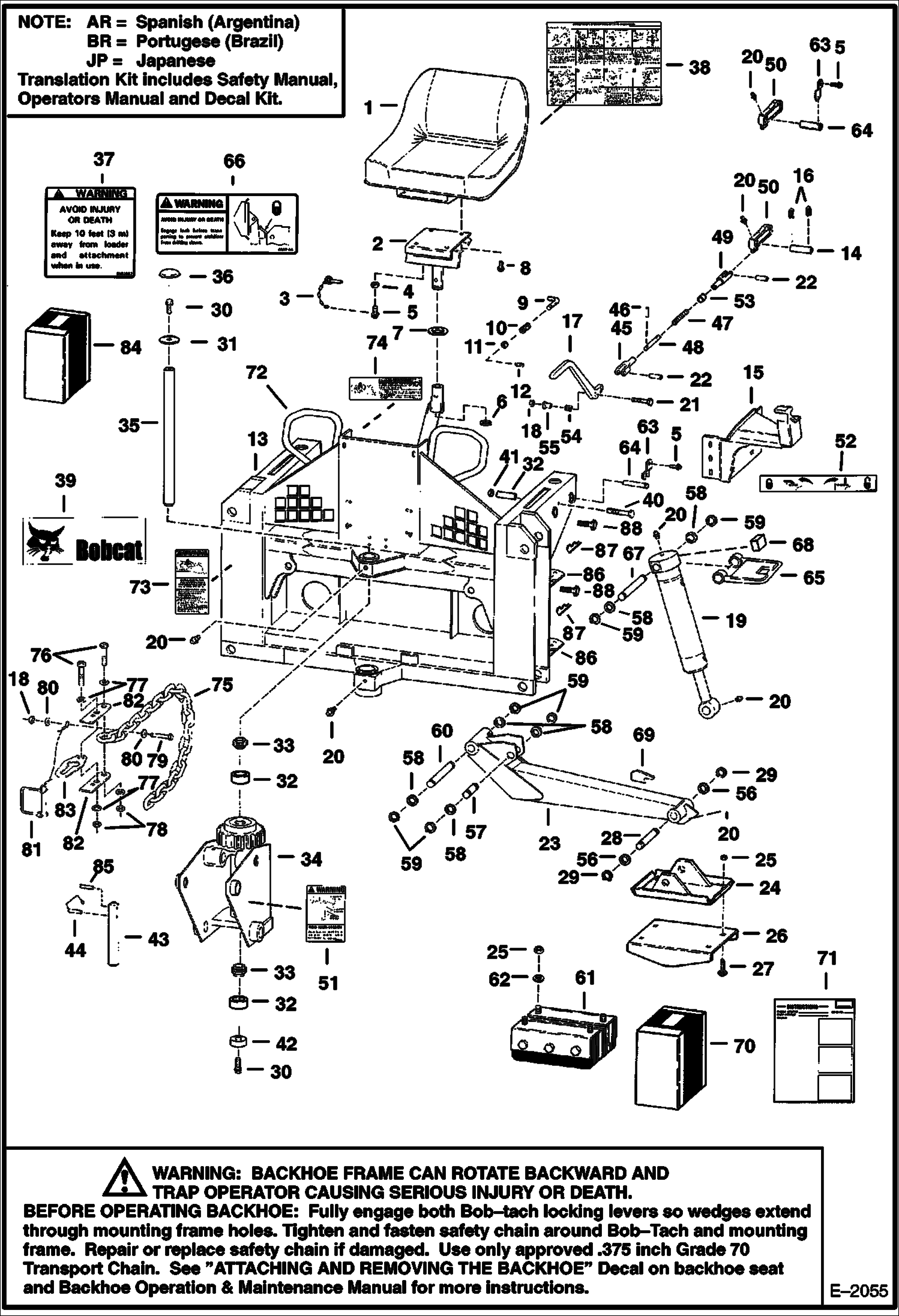

Запчасти Bobcat BACKHOE BACKHOE (Main Frame) (811 6300) 811/8811 BACKHOE

1

SEAT NLA - W/adj. track - Order 6643253 seat, Also Order Ref. 38 (6714915 decal) - Was 6653421 - A

1

6643253

SEAT, OPERATOR VINYL W/O adj. track - Also Order Ref. 38 (6714915 decal) - Was 6591598 - A

1

TRACK NLA - W/adj. - Was 6660436 - A

1

TRACK NLA - W/O adj. - Was 6660437 - A

2

6587384

HINGE, MOUNT SWIVEL Was 6534341 - A

3

6511880

PIN

4

7D6

NUT

5

84G3712

BOLT 5

6

22J24

RING SNAP Was 6538285 - A

7

6558680

WASHER

8

17C512

BOLT 5 Was 17C000516B - B

9

6592836

PIN

10

6610082

SPRING

11

25E15

WASHER

12

1F308

PIN, COTTER

13

MAIN FRAME NLA - Was 6533226 - A

14

6533178

PIN

15

MOUNT See Illustration BACKHOE/ B13371

16

23J16

SNAP RING Was 662770B - B

17

6805822

LEVER Was 6533163 - A

18

85D6

NUT, 5

19

CYLINDER See Illustration BACKHOE/ C3320 See Illustration BACKHOE/ C3251 - stabilizer

20

10H25

FITTING, GREASE 5

21

17C660

BOLT

21

17C680

BOLT

22

14J5032

PIN, STRAIGHT

23

6586820

STABILIZER Also Order 57 & 60 - Was 6534649 - A

24

6534650

PAD

25

61D8

NUT 5

26

6560890

CLEAT

27

37C820

BOLT Was 6560578 - A

28

6532841

PIN

29

22J16

SNAP RING Was 1320431 - B

30

31C1228

BOLT

31

7112682

WASHER Was 6552871 - B

32

6656253

RACE Was 6534351 - A

33

6656252

BEARING

34

6806093

FRAME, SWING Was 6533297 - A

35

6533318

SHAFT

36

6656492

CAP

37

7166144

DECAL, WARNING warning - Was 6583862 - B

38

6714915

DECAL mounting instr. - Was 6536325 - A

39

7109473

DECAL, LOGO BOBCAT AND HEAD Was 6727324 - B

40

17C868

BOLT

41

85D8

NUT, 5

42

6532631

WASHER

43

6593895

PIN boom lock - Was 6531439 - A

44

6510020

LOCK PIN

45

6533159

CLEVIS

46

14J2520

PIN

47

6578253

SPRING, COMPRESSION

48

6533158

ROD

49

6704248

PIVOT, WEDGE Was 6576454 - A

50

6586377

STOP Was 6533115 - A

51

6535259

DECAL, WARNING

52

6535896

DECAL L.H.

52

6535897

DECAL R.H.

53

6533160

BUSHING

54

6704453

SPRING Was 6578252 - A

55

6575636

BUSHING

55

6586315

PIVOT

56

6573567

WASHER

57

6587520

PIN Was 6534954 - A

58

6532519

WASHER

59

6650680

SNAP RING

60

6587521

PIN Was 6536985 - A

61

6632445

PAD street

62

25E21

WASHER 5

63

6586307

RETAINER

64

6586308

PIN

65

6586789

LOCK

66

6587106

DECAL, WARNING

67

6536985

PIN

68

6586499

STOP

69

6586792

HOOK

70

6722159

KIT stab. hook - W/Ref 65-69 & 71

71

6722160

INSTRUCTIONS for Ref. 70

72

6805233

TUBE handrail - Was 6560876 - A

73

6714920

DECAL, WARNING

74

6714911

DECAL, WARNING

75

6714935

SAFETY CHAIN 55'' (1397 mm) long - chain only - use only approved .375 inch grade 70 transport chain

76

38C820

SCREW

77

27E8

WASHER 10

78

53D6

NUT

79

17C636

BOLT

80

27E6

WASHER 5

81

6661838

HITCH PIN

82

6714869

LATCH

83

6714868

BRACKET

84

6713634AR

KIT decal - SEE NOTE

84

6713634BR

KIT decal - SEE NOTE

84

6713634JP

KIT decal - SEE NOTE

84

6713635AR

KIT translation - SEE NOTE

84

6713635BR

KIT translation - SEE NOTE

85

14J3740

PIN

86

7232349

STEP, MFR Was 7138104 - A

87

1306637

CLIP

88

84G3110

SCREW
