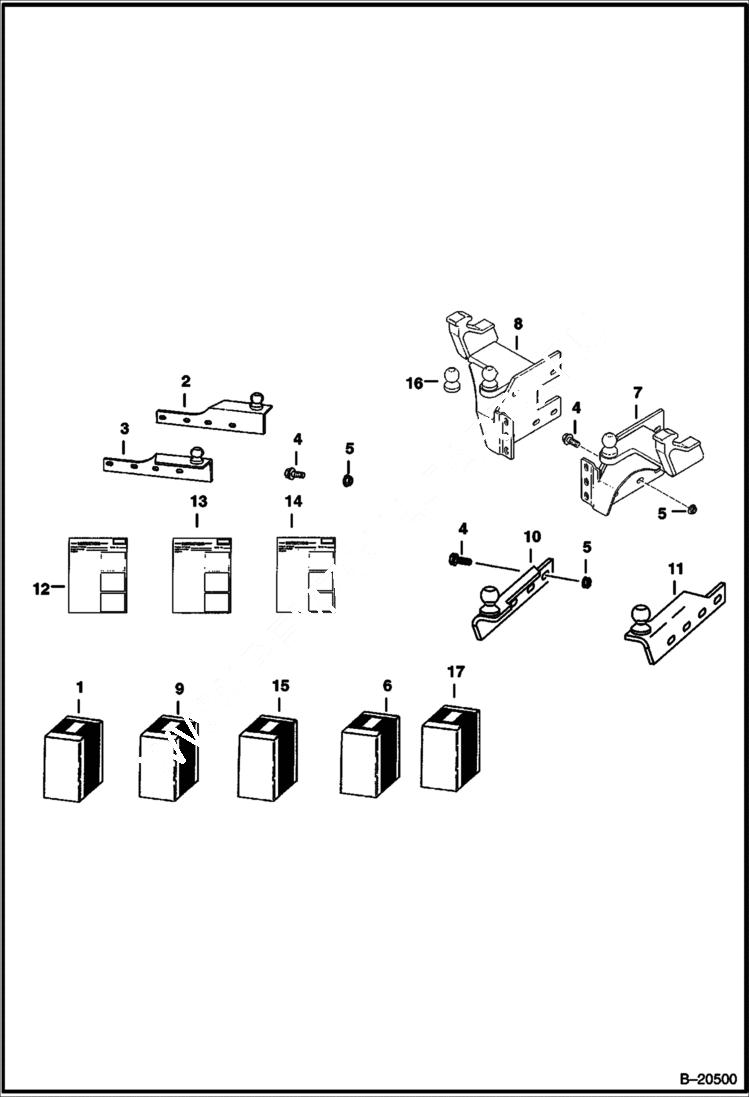

Запчасти Bobcat BACKHOE BACKHOE (Mounting Kits) (909) 909 BACKHOE

1

6562446

KIT 740 Series - Ref. 2-5 & 12 - Was Sales - A

2

6561942

MOUNT L.H.

3

6561943

MOUNT R.H.

4

31C1028

SCREW 8 used in Ref. 1 & 9 and 16 used in Ref. 6

5

53D10

NUT 8 used in Ref. 1 & 9 and 16 used in Ref. 6 - Was 83D000010B - B

6

KIT NLA - 740 Series - Ref. 4, 5, 7, 8 & 13 - Order components - Was SALES #6538674 - A

7

6538661

MOUNT L.H.

8

6538673

MOUNT R.H.

9

KIT NLA - 753, S130 & T140 - Ref. 4, 5, 10, 11 & 14 - Order components - Was SALES #6534612 - A

10

6531694

MOUNT L.H.

11

6531692

MOUNT R.H.

12

6556976

INSTRUCTIONS For Ref. 1

13

6720596

INSTRUCTIONS For Ref. 6

14

6720179

INSTRUCTION for Ref. 9

15

KIT See Illustration BACKHOE/ TS1069B SALES - 753 - mounting ball conversion

16

6539094

BALL

17

6718759AR

KIT translation - for Ref. 9

17

6718759BR

KIT translation - for Ref. 9

17

6720179AR

INSTRUCTION translated - for Ref. 9

17

6720179BR

INSTRUCTION translated - for Ref. 9
