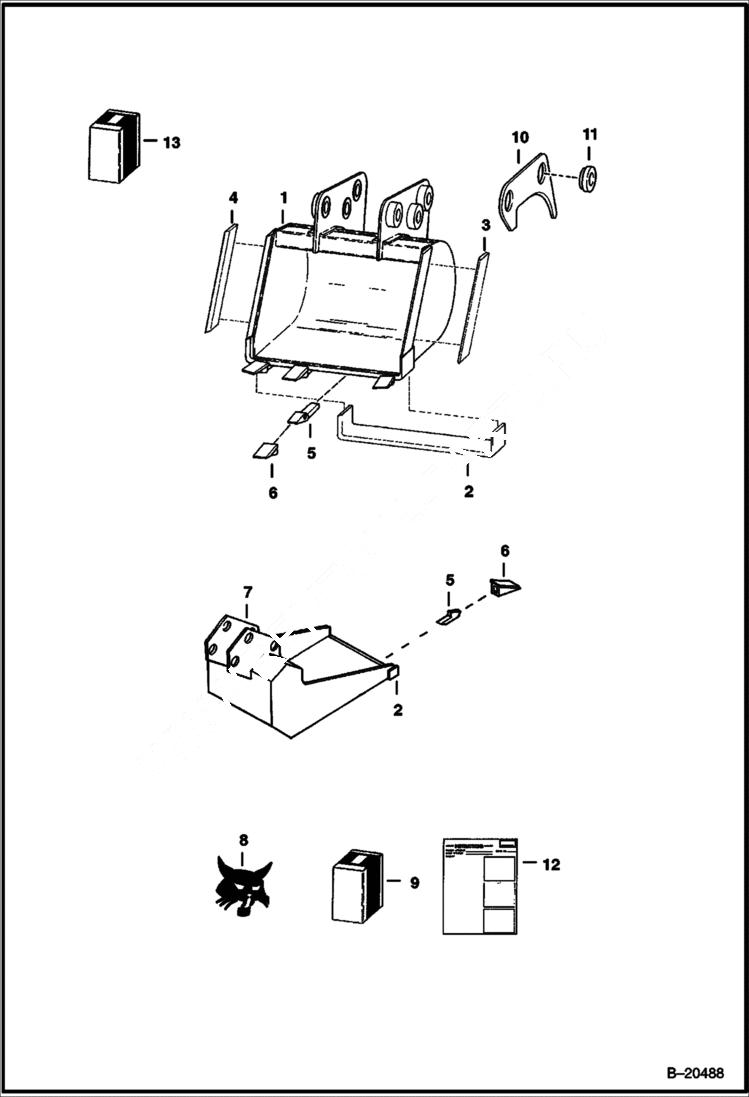

Запчасти Bobcat BACKHOE BACKHOE (Buckets) (W/4 (101,6 mm) Cutting Edge) (909) 909 BACKHOE

1

BUCKET SALES - standard - 12'' (304,8 mm)

1

BUCKET SALES - standard - 16'' (406,4 mm)

1

BUCKET SALES - standard - 20'' (508 mm)

1

BUCKET SALES - standard - 24'' (609,6 mm)

1

BUCKET SALES - standard - 30'' (762 mm)

2

6592051

EDGE, CUTTING WELD ON BEVELED 12.34'' 12'' (304,8 mm)

2

6592053

EDGE, CUTTING WELD ON BEVELED 16.22'' 16'' (406,4 mm)

2

CUTTING EDGE NLA - Was 6592213 - A

2

6592214

CUTTING EDGE 24'' (609,6 mm)

2

6592215

CUTTING EDGE 30'' (762 mm)

3

6542987

CUTTING EDGE L.H. - 12'' (304,8 mm), 16'' (406,4 mm)

3

6561167

EDGE, CUTTING WELD-ON EDGE L.H. - 20'' (508 mm), 24'' (609,6 mm), 30'' (762 mm)

4

6542986

CUTTING EDGE R.H. - 12'' (304,8 mm), 16'' (406,4 mm)

4

6561166

EDGE, CUTTING WELD-ON SIDE R.H. - 20'' (508 mm), 24'' (609,6 mm), 30'' (762 mm)

5

6515119

SHANK

6

TOOTH 25 NLA - clamp on - Order 1550017 tooth - Was 6682026 - A

6

1550017

TOOTH, BUCKET 25

7

BUCKET SALES - open side - 12'' (304,8 mm)

7

BUCKET SALES - open side - 16'' (406,4 mm)

8

6700191

DECAL, LOGO BOBCAT HEAD R.H.

8

6700192

DECAL L.H.

9

6586756

KIT to convert 909 buckets to 709 buckets - W/Ref. 10-12

10

6586757

PLATE

11

6560596

BUSHING

12

6722243

INSTRUCTION

12

6722243AR

INSTRUCTION translated - for Ref. 9

12

6722243BR

INSTRUCTION translated - for Ref. 9

13

6718778AR

KIT translation - for Ref. 9

13

6718778BR

KIT translation - for Ref. 9
