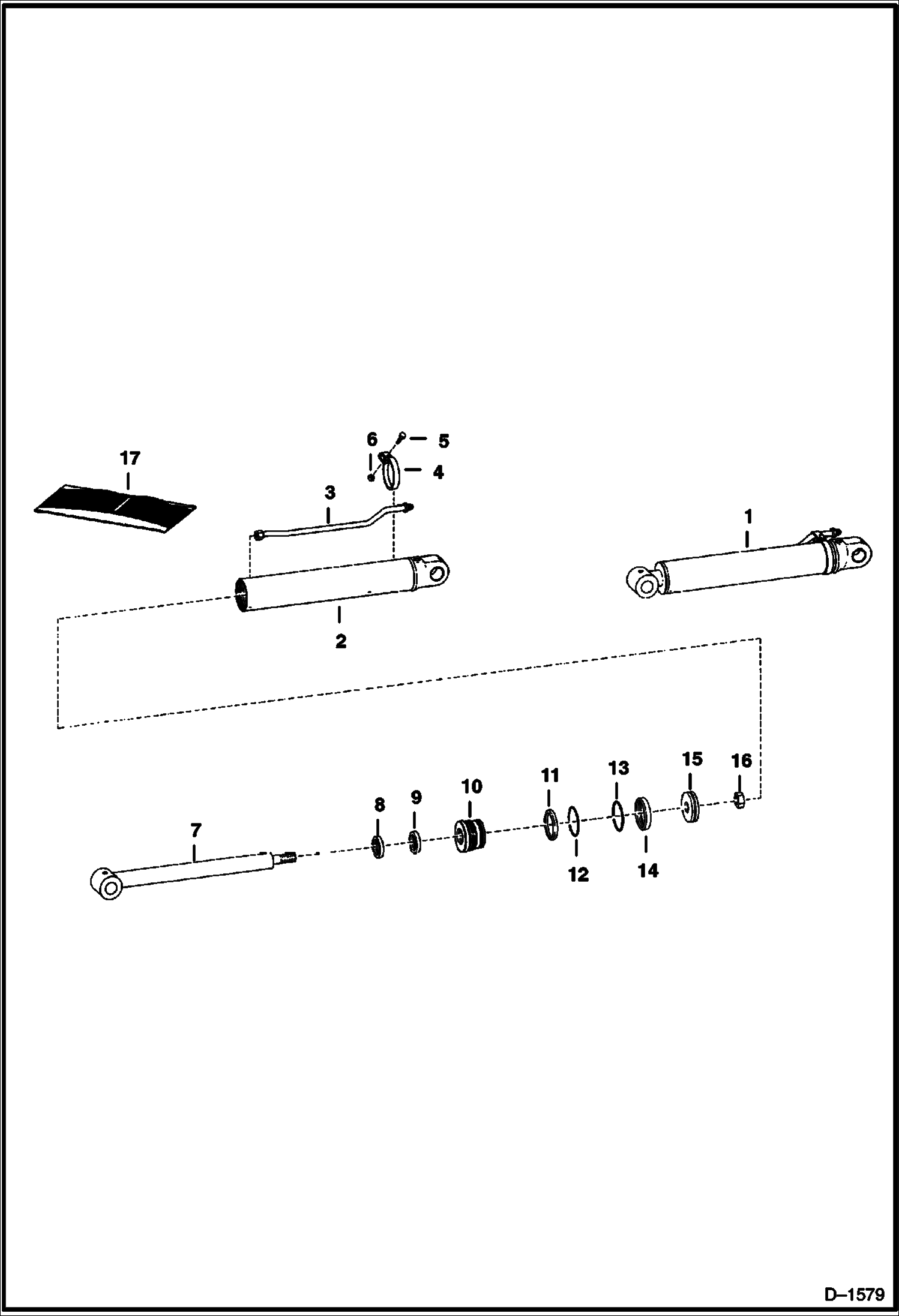

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (909) 909 BACKHOE

1

CYLINDER NLA - W/tube - Order 6591977 cyl. & 6529332 hose

1

6591977

CYLINDER Ref. 7-16

2

6592039

CASE

3

6591973

TUBE

4

6591976

CLAMP

5

17C520

BOLT 5

6

85D5

NUT 5

7

6591982

PISTON ROD

8

6686998

WIPER, ROD CYL Was 6666545 - A

9

6667328

SEAL Was 6538277 - A

10

6533386

HEAD Was 6546508 - A

11

73K232

RING, BACK-UP back-up - Was 80K232 - A

12

25K40224

O RING 10 Was 54K40224 - B

13

25K30218

O RING 10 Was 54K30218 - B

14

947088

RING, BACK-UP slipper - Was NSS - D

15

6803870

PISTON Was 6553912 - A

16

6810539

NUT Was 6804592 - A

17

7137940

SEAL KIT Ref. 8, 9, 11-14 & 16 - Was 6804611 - A
