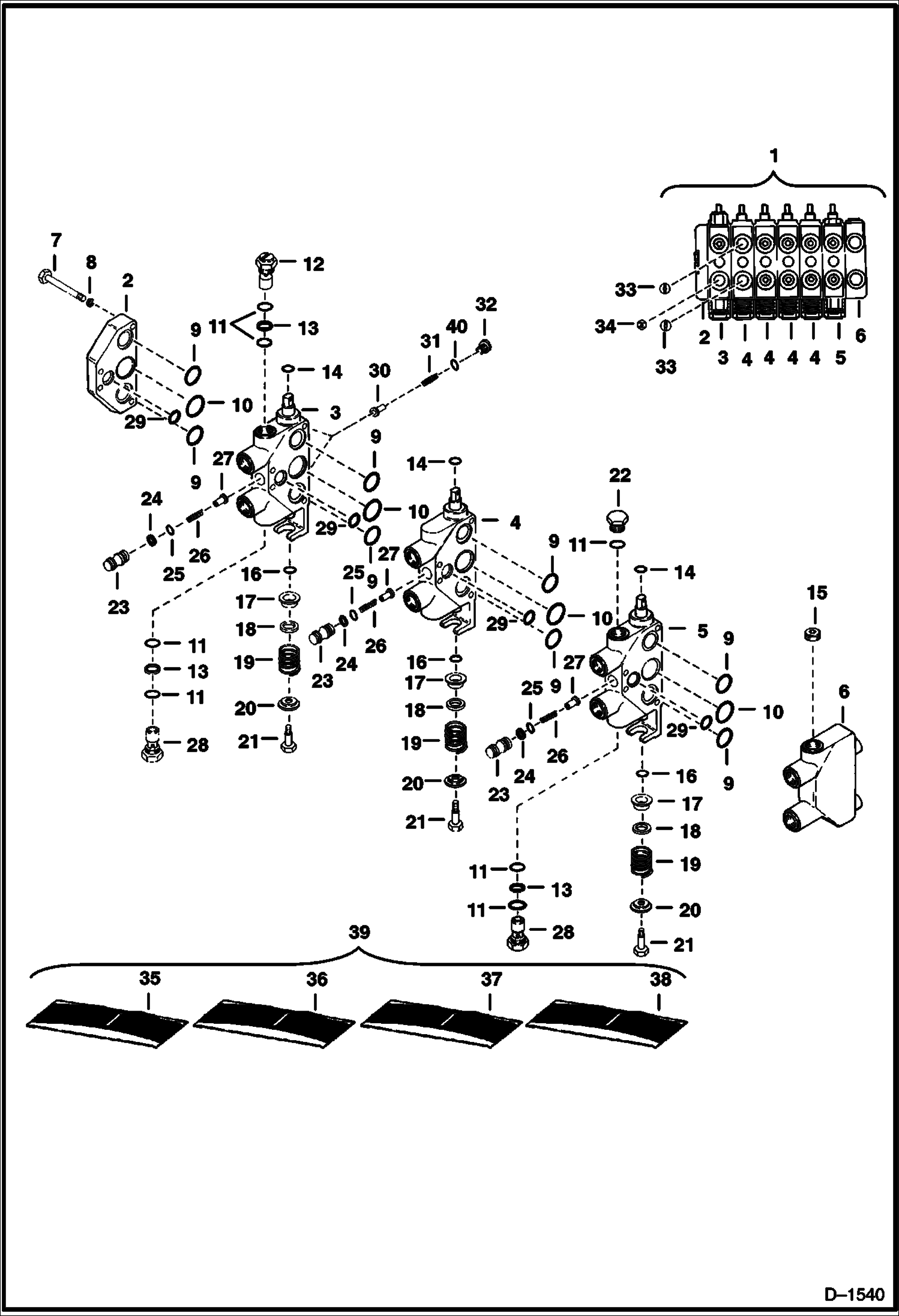

Запчасти Bobcat BACKHOE BACKHOE (Valve) (Cessna) (909 113800101 - 01403) 909 BACKHOE

1

VALVE NLA - Order 6592447 & 6512602

2

6510041

PLATE end

3

SECTION NSS - valve (boom) - Order Ref. 1 - Was 6598345 - A

4

SECTION NSS - valve - bucket, stab. & swing Order Ref. 1 - Was 6598201 - A

5

SECTION NSS - valve (crowd) - Was 6513626 - A

6

PLATE NLA - port - Was 6510042 - A

7

17C6174

BOLT

8

25E6

WSHR

9

O-RING NSS

10

O-RING NSS

11

O-RING NSS

12

6512603

RELIEF VALVE

13

WASHER NSS - back-up

14

SEAL NSS - spool

15

6510063

PLUG

16

O-RING NSS

17

4149070

WASHER deep

18

4149072

WASHER wire

19

6510048

SPRING

20

4149067

WASHER, S shallow

21

947750

SCREW

22

6518043

PLUG

23

4149069

BODY LIFT lift check

24

WASHER NSS - back-up

25

O-RING NSS

26

1550482

SPRING

27

4149071

PLUNGER L lift check

28

RELIEF VALVE NLA - Was 6512602 - A

29

O-RING NSS

30

994793

POPPET

31

6510047

SPRING

32

6598346

PLUG

33

6598363

ORIFICE .079''(2,01 mm)

34

6598364

ORIFICE .187'' (4,75 mm)

35

6510064

SEAL KIT between sect. - Ref. 9, 10 & 29

36

6510058

SEAL KIT stabilizer & swing sections Ref. 14, 16 & 25

37

6510059

SEAL KIT crowd section - Ref. 11, 13, 14, 16, 24 & 25

38

6598443

SEAL KIT boom section - Ref. 11, 13, 14, 16, 24 & 25

39

6598203

SEAL KIT major - Ref. 35-38

40

58K110

O RING 10
