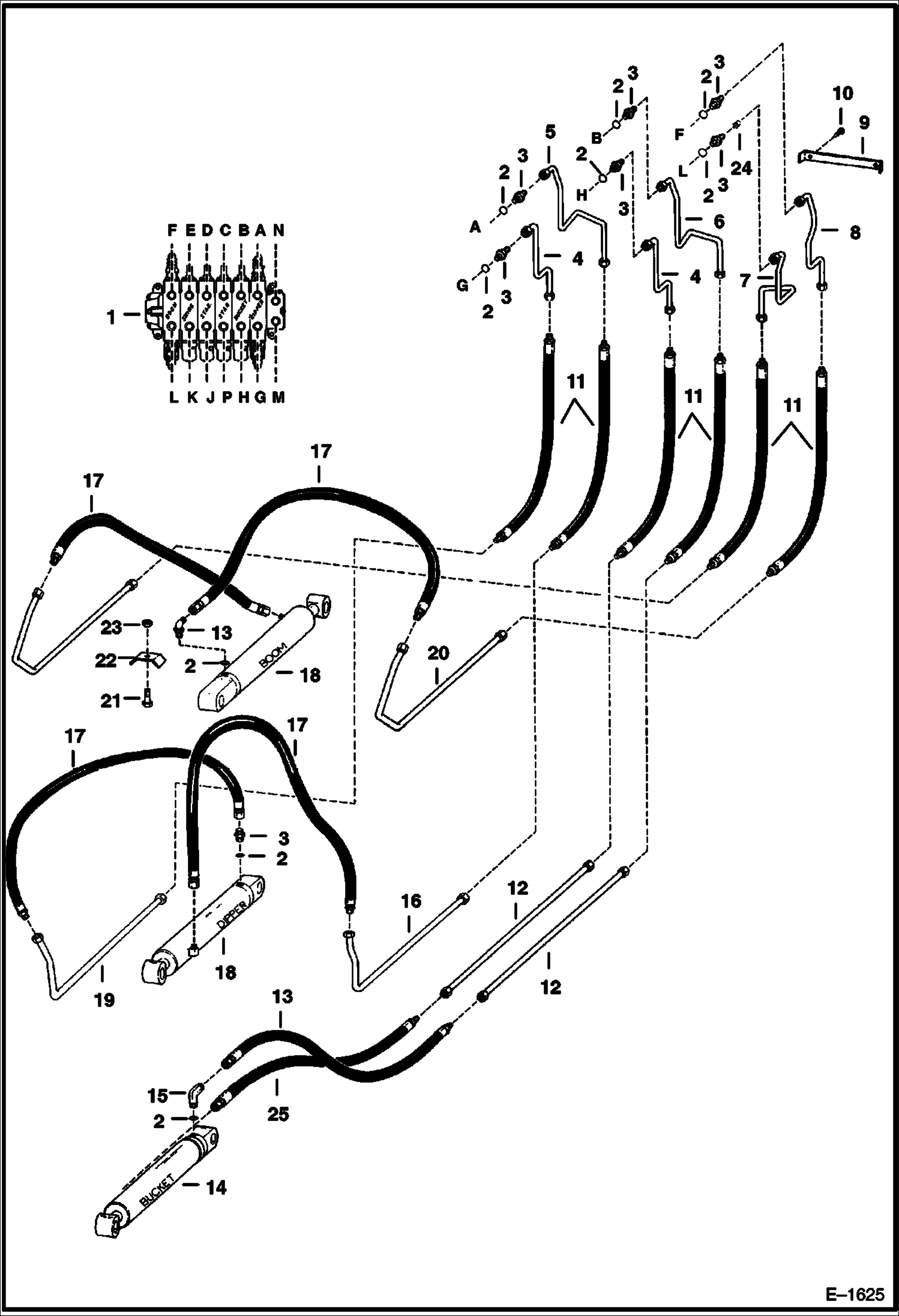

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry With Husco Valve) (909 113802037 & Above) 909 BACKHOE

1

VALVE See Illustration BACKHOE/ E1622A

2

79K8

O RING 10

3

15K6

ADAPTER W/Ref. 2

4

6592843

TUBE

5

6592847

TUBE

6

6592846

TUBE

7

6592845

TUBE

8

6592844

TUBE

9

6560554

CLAMP tube

10

84G3724

BOLT

11

6562525

HOSE

12

6560720

TUBE

13

6560725

HOSE

14

CYLINDER See Illustration BACKHOE/ D1579 bucket

15

17K6

ELBOW W/Ref. 2

16

6563503

TUBE

17

6559202

HOSE

18

6592084

CYLINDER See Illustration BACKHOE/ B20903

19

6563502

TUBE

20

6563504

TUBE

21

6559093

BOLT

22

6502426

CLAMP

23

85D6

NUT, 5

24

6592852

ORIFICE .187'' (4,75 mm) dia.

25

6529332

HOSE
